Sad 2000 xj.. help me!
11-17-2011, 02:16 PM
#1
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
Sad 2000 xj.. help me!
I've got a CEL for a
P0340 camshaft position sensor A circuit (bank 1 or Single sensor) -circuit malfunction
P1391 (pd) Undefined code.
Any idears?!
P0340 camshaft position sensor A circuit (bank 1 or Single sensor) -circuit malfunction
P1391 (pd) Undefined code.
Any idears?!
11-17-2011, 02:17 PM
#2
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
I changed the pump today and it fired right up. Then a CEL came on for the sensor. It will not start first crank anymore. Takes a couple tries to get it started then it just dies after 5 to 30 seconds.. where is the camshaft sensor at?
11-17-2011, 02:19 PM
#3
CF Veteran
Join Date: Feb 2011
Location: Bergen County, New Jersey U.S.A.
Posts: 3,074
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
check out this thread with the same problem as yours hope this helps
https://www.cherokeeforum.com/f5/199...e-p1391-19355/
https://www.cherokeeforum.com/f5/199...e-p1391-19355/
11-17-2011, 02:24 PM
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
11-17-2011, 02:38 PM
#5
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
Well I'm distributorless rooster.
I figured that's where it was. So when I do get it to turn over and run for a sec, the sensor clicks.. loud. I'm assuming that means its going out. Would that cause it not to fire up? And then die right after it fires up?
I figured that's where it was. So when I do get it to turn over and run for a sec, the sensor clicks.. loud. I'm assuming that means its going out. Would that cause it not to fire up? And then die right after it fires up?
11-17-2011, 02:40 PM
#6
CF Veteran
Join Date: Feb 2011
Location: Bergen County, New Jersey U.S.A.
Posts: 3,074
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
Trending Topics
11-17-2011, 03:43 PM
#8
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
I took it off and cleaned all the powder off of it and it fired right up. Till I shut it off. Now I'm back to square 1. Thoughts?
11-17-2011, 03:53 PM
#9
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6

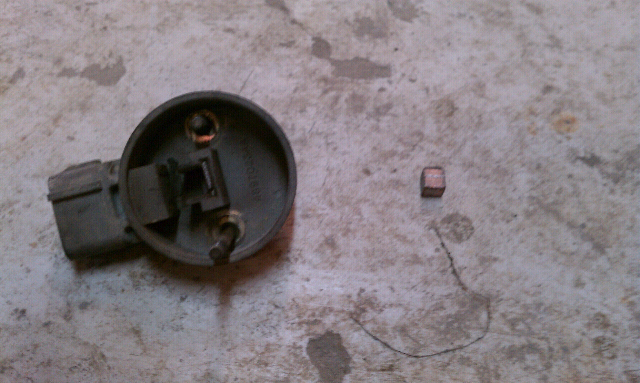

This doesn't look right to me. But I could be wrong. The center magnet is "broken" off of the sensor. OS it supposed to be attached?
11-17-2011, 05:28 PM
#10
Senior Member
Join Date: Jan 2011
Location: Upstate N.Y
Posts: 689
Likes: 0
Received 1 Like
on
1 Post
Year: 2000.1999,1996
Model: Cherokee
Engine: 4.0
Did you follow the direction to the t in the book that you should have? changing a cam sensor is not a simple yank it out put it back in, get a haynes manual or similer and follow direction's. g/l
11-17-2011, 06:54 PM
#11
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
She was pretty simple. It's a two screw pop. It's not the whole timeing cylinder. Just the top sensor cap that goes on it that I needed. Threw a new one on and it fired right up and runs like New. My magnet inside my old one had broke off the mount that its on so it was just bouncing around inside. Everything is tip top. No CEL
11-18-2011, 03:57 AM
#14
Senior Member
Thread Starter
Join Date: Jul 2011
Location: ogden, utah
Posts: 515
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: l6
What does the (pd) stand for? When the CEL came on for the sensor or would come on about 30 seconds after I turned it over. After I replaced it. The light stayed off. Does the undefined code associate with the sensor?
