Rounded lug nuts

Thread Tools

Search this Thread

Old Mar 18, 2012 | 07:37 AM
  #16
caged's Avatar
CF Veteran

Joined: Nov 2008
Posts: 7,874
Likes: 100
From: Northern Ontario, Canada
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

try an 18mm 12pt socket.

i use a 19mm 12pt socket all the time to get those lock nuts off. easy as pie.


never weld or use heat on an inflated tire/rim.

Reply
Old Mar 18, 2012 | 08:39 AM
  #17
413maxwedge's Avatar
Senior Member

Joined: Jan 2011
Posts: 689
Likes: 2
From: Upstate N.Y
Year: 2000.1999,1996
Model: Cherokee
Engine: 4.0
Default

[QUOTE=caged;1627522]try an 18mm 12pt socket.

i use a 19mm 12pt socket all the time to get those lock nuts off. easy as pie


Not a 12 point on a 6 point nut what the hell idiot logic is that?Name:  jerkit5ns.gif
Views: 207
Size:  1.9 KB
Reply
Old Mar 18, 2012 | 10:28 AM
  #18
Jonwebb's Avatar
Thread Starter
Member

Joined: Jan 2012
Posts: 150
Likes: 0
From: New Baltimore, Michigan
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cruiser54
18mm socket.
18mm is what started to round it off
Reply
Old Mar 18, 2012 | 10:29 AM
  #19
caged's Avatar
CF Veteran

Joined: Nov 2008
Posts: 7,874
Likes: 100
From: Northern Ontario, Canada
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

[quote=413maxwedge;1627569]
Originally Posted by caged
try an 18mm 12pt socket.

i use a 19mm 12pt socket all the time to get those lock nuts off. easy as pie


Not a 12 point on a 6 point nut what the hell idiot logic is that?Attachment 102760

i figured if it is rounded. you can beat a smaller 12 point on and it has more gripping power and can easily fit over the nut.
that is my idiot logic, thank you very much...
Reply
Old Mar 18, 2012 | 11:04 AM
  #20
codcherokee's Avatar
Newbie

Joined: Mar 2011
Posts: 15
Likes: 0
From: greenville, pa
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I had that happen on my wifes GC when I put her winter wheels on u can drill it out really easily with a good quality drill bit and about fifteen minutes. Start with a 1/2 inch to get a good starter hole. After getting a pilot started go back smaller and step up each time u reach the end of the nut. Super easy to drill like this then of course u need a stud but it was like ten bucks for a stud and ten new solid acorn nuts. Good luck.
Reply
Old Mar 18, 2012 | 11:19 AM
  #21
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by caged
try an 18mm 12pt socket.

i use a 19mm 12pt socket all the time to get those lock nuts off. easy as pie.


never weld or use heat on an inflated tire/rim.

Tire Explosion - YouTube
exactly
Reply
Old Mar 18, 2012 | 11:24 AM
  #22
JeepingDan's Avatar
CF Veteran
Premium Member
15 Year Member
Liked

Joined: Apr 2009
Posts: 18,786
Likes: 14
From: CT.
Year: 88
Model: Comanche (MJ)
Engine: 4.0 HO
Default

Hammer a 18mm or 17mm 6 point IMPACT socket on and use even force to break it loose. One hand on end of wrench other on ratchet head. I do this all the time for a tire shop next to my job.

No standing on the wrench! Thats how it gets effed up in the first place because of uneven torque.
Reply
Old Mar 18, 2012 | 11:49 AM
  #23
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Jonwebb
18mm is what started to round it off
The quality of the tools used plays a part in this, too. Some of the tools out there are made of soft material, to crappy tolerances.

My 18mm Snap-On socket gets them off every time.
Reply
Old Mar 18, 2012 | 01:52 PM
  #24
Northwoods Snowman's Avatar
Senior Member

Joined: Nov 2010
Posts: 976
Likes: 5
From: Cloquet, MN
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Jonwebb
Nope, im not completely incompetent lol I never use 12 points
No offense meant, I've just seen a lot of people try doing that. I don't think I've ever stripped the corners off with a proper sized 6 pt socket.

Originally Posted by JeepingDan
Hammer a 18mm or 17mm 6 point IMPACT socket on and use even force to break it loose. One hand on end of wrench other on ratchet head. I do this all the time for a tire shop next to my job.

No standing on the wrench! Thats how it gets effed up in the first place because of uneven torque.
ACTUALLY, The idea with the undersized 12 pt is that when you hammer it on the points cut their own grooves in the nut (like a spline) and locks the socket to the nut to be able to get it off. I've done this numerous times personally.
Reply
Old Mar 18, 2012 | 02:34 PM
  #25
Jonwebb's Avatar
Thread Starter
Member

Joined: Jan 2012
Posts: 150
Likes: 0
From: New Baltimore, Michigan
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Northwoods Snowman

No offense meant, I've just seen a lot of people try doing that. I don't think I've ever stripped the corners off with a proper sized 6 pt socket.

ACTUALLY, The idea with the undersized 12 pt is that when you hammer it on the points cut their own grooves in the nut (like a spline) and locks the socket to the nut to be able to get it off. I've done this numerous times personally.
I was using the proper size, I used 19mm 6point until the dumb caps pulled off and when that happened it deformed the nut itself so when I went to put the 18mm on it didint fit super snug, neither did any of the other sockets I had, metric or standard
Reply
Old Mar 18, 2012 | 02:44 PM
  #26
JeepingDan's Avatar
CF Veteran
Premium Member
15 Year Member
Liked

Joined: Apr 2009
Posts: 18,786
Likes: 14
From: CT.
Year: 88
Model: Comanche (MJ)
Engine: 4.0 HO
Default

12 point chrome sockets suck IMHO
I use 6 point impact sockets to get them off and it works every
time.
Hammer the ***** on and break it off with a 1/2 breaker bar and your done. I've been doing it this way for years for the tire shop next door since they like to use the same size socket on everything.
Reply
Old Mar 18, 2012 | 03:04 PM
  #27
hbracing13's Avatar
CF Veteran
10 Year Member

Joined: Sep 2011
Posts: 1,874
Likes: 1
From: new mexico
Year: 88
Engine: 4.0
Default

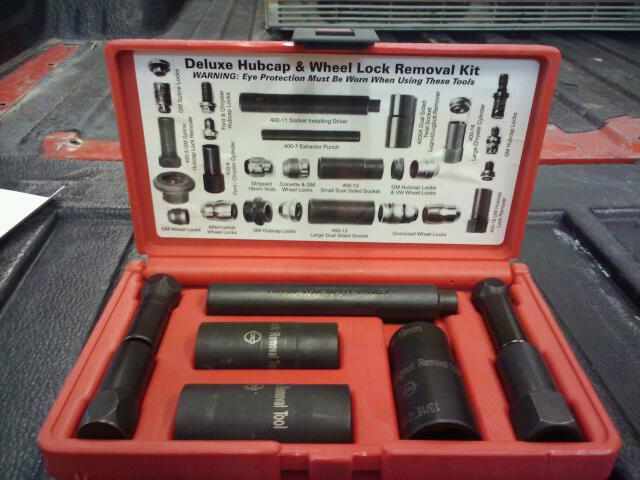

You want something like this

Name:  ForumRunnerImage.jpg
Views: 141
Size:  50.1 KB

But if you don't just drill it out that the easiest way start small and work up to it. As long as your center in the lug you'll be fine.
Reply
Old Mar 18, 2012 | 04:04 PM
  #28
reddonkey's Avatar
Junior Member

Joined: Nov 2011
Posts: 45
Likes: 0
From: Tulsa OK
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

This happened to me. Chisel failed. Took way too much time never got the job done. I used a drill. Tool about 5 min and it didn't damage the rim.
Reply
