TINY

im making a rack for my 94 and was lookin for some ideas. so lets see some pics of racks if u have any.

2.5TURBO

depends how much crap you wanna carry!

I currently just added 4 extra of the stock cross bars for tires and lights to mount to. Best part is that they are cheap so i can mess them up and not feel bad. Plus I can see what actually works like I want it to.

You could also just buy a basket and attach it to the stock cross bars.

Or just buy something that mounts completely separate from the factory roof racks like this http://www.jcroffroad.com/Merchant2/...egory_Code=RCK

danimal

Try search



Couple links for ya.

https://www.cherokeeforum.com/f58/ho...of-rack-21684/

https://www.cherokeeforum.com/member...ade-roof-rack/

Below is a link with some photos of the one we made using the information from above posters. The same basic concept and materials used in all three, but everyone changed it up a bit to suit their needs. We did a spare tire holder deal. Going to add a shovel holder and a hilift jack mount too.

https://www.cherokeeforum.com/f2/roo...re-tyre-27590/

There are others. Use the search feature. Just put in "roof racks"

warthog

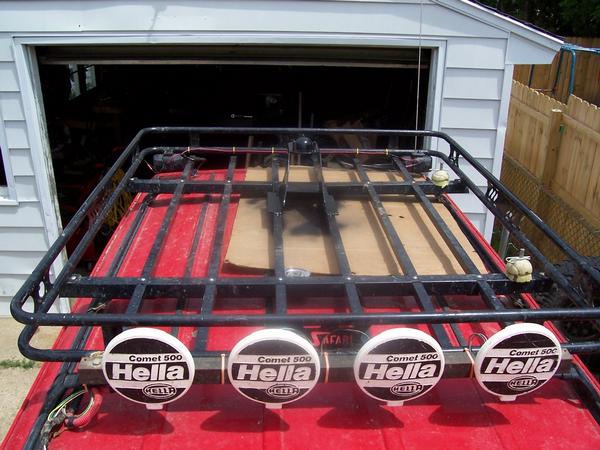

Check out my albums and look in the fab section

TINY

thanks for the info guyz. it kinda funny a link was posted for your pics warthog. i really like the diomon plate corners! bad ***! im guna use the stock rack hardwear to screw mine down to make it beef . and i dont realy like the look of the stock rails under the aftermarket one. thats just me tho im picky! lol

That Jeep Guy XJMJ

danimal

A much cleaner easier setup on your spare mount. Too bad the home made conduit racks wouldn't support it.

What are the tie downs for? By the looks of the mount can't you just bolt the spare to it?

Some day soon I'm gonna buy a little MIG welder. Then I can make exactly what I want.

warthog

The rack will support a spare and much more with no problems at all.

I have actually laid down on top of mine with no issues and i am close to 200 lbs

danimal

Obviously it'll hold it. That's where I've got mine mounted. I guess what i was referring to is the welding of a mount like this guy is using. Did you use 1/2" conduit on the bottom crossing bars, or 3/4"? I might redo this one and run some bigger bars across. The rack itself is plenty strong, but the bottom is a little on the weak side. Guess I could just run more of the 1/2" crossing bars to strenghten up the bottom some. How far apart are yours?

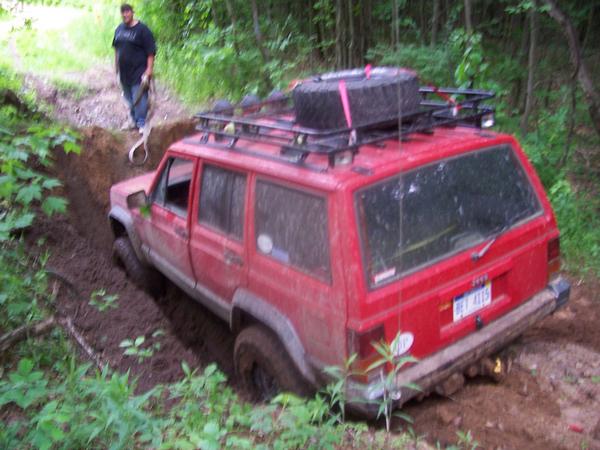

In this shot you can see the spare is sitting on three of them and they're a little spongy.

warthog

Mine are about 8 or so inches apart. You could replace your emt conduit with rigid emt
