reverse light

Thread Tools

Search this Thread

Old 09-26-2013, 04:46 PM
  #1
CF Veteran
Thread Starter

Batman33165's Avatar

Join Date: Apr 2013
Location: Rowlett, Texas
Posts: 1,153
Received 7 Likes on 5 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 Inline 6
Default reverse light
Hey guys...

Checked out the bulbs and all the fuses but can't figure out why my reverse lights don't work?

The rest of the lights work... its a 88, manual...
Batman33165 is offline
Reply Like
Old 09-26-2013, 04:55 PM
  #2
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Check trans fuse yet ?
freegdr is offline
Reply Like
Old 09-26-2013, 05:31 PM
  #3
CF Veteran
Thread Starter

Batman33165's Avatar

Join Date: Apr 2013
Location: Rowlett, Texas
Posts: 1,153
Received 7 Likes on 5 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 Inline 6
Default
Any ideas where it would be on a manual teans.
Batman33165 is offline
Reply Like
Old 09-26-2013, 05:32 PM
  #4
CF Veteran
Thread Starter

Batman33165's Avatar

Join Date: Apr 2013
Location: Rowlett, Texas
Posts: 1,153
Received 7 Likes on 5 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 Inline 6
Default
Trans. *
Batman33165 is offline
Reply Like
Old 09-26-2013, 05:41 PM
  #5
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Fuse box by clutch pedal with all others . Bottom right on mine
Last edited by freegdr; 09-26-2013 at 05:48 PM.
freegdr is offline
Reply Like
Old 09-26-2013, 06:54 PM
  #6
Junior Member

nitroxsteve's Avatar

Join Date: Dec 2009
Location: Charlotte, NC
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988 Comanche
Engine: 4.0
Default
Yep, check the trans fuse its in the fuse box and on manual trans it runs the lights.
nitroxsteve is offline
Reply Like
Old 09-26-2013, 08:23 PM
  #7
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes on 1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

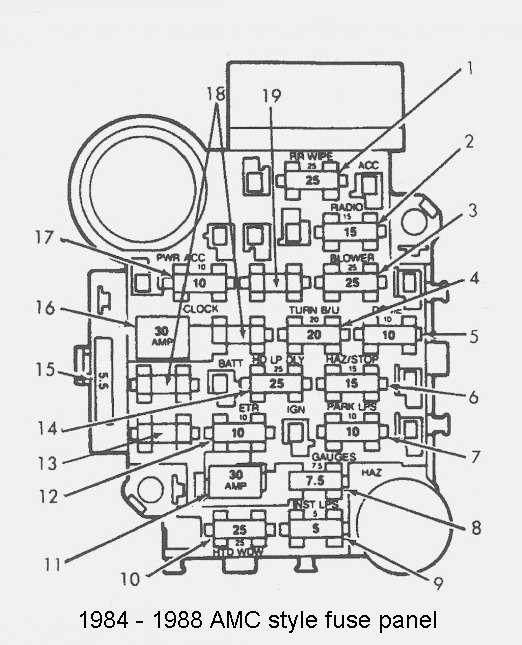

This help?
Attached Thumbnails reverse light-1984_1988_fuse_box.jpg
cruiser54 is offline
Reply Like

Trending Topics

Old 09-27-2013, 04:42 AM
  #8
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by cruiser54
This help?
No trans fuse there ? Mines here
Attached Thumbnails reverse light-user38956_pic55906_1316645043.jpg
Last edited by freegdr; 09-27-2013 at 04:45 AM.
freegdr is offline
Reply Like
Old 09-27-2013, 06:30 AM
  #9
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes on 1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by freegdr
No trans fuse there ? Mines here
Yeah. I realized that after seeing the fusebox more closely. Description says 84 to 88 fusebox. Wrong, I guess. I left it htere just to see if you would catch it. LOL.

And as an added bonus, I stole your photo!! Thanks.
cruiser54 is offline
Reply Like
Old 02-06-2017, 07:56 AM
  #10
CF Veteran
Thread Starter

Batman33165's Avatar

Join Date: Apr 2013
Location: Rowlett, Texas
Posts: 1,153
Received 7 Likes on 5 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 Inline 6
Default
It ended up being a ground issue, thank you for everyone's help. Shortly after i replaced all the fuses with those dummy light up fuses just in case
Batman33165 is offline
Reply Like
Old 02-06-2017, 08:39 PM
  #11
CF Veteran

BillyBoy's Avatar

Join Date: Aug 2009
Location: Detroit, Michigan
Posts: 1,117
Received 30 Likes on 25 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Those things are great! Especially on the trail.
