freegdr

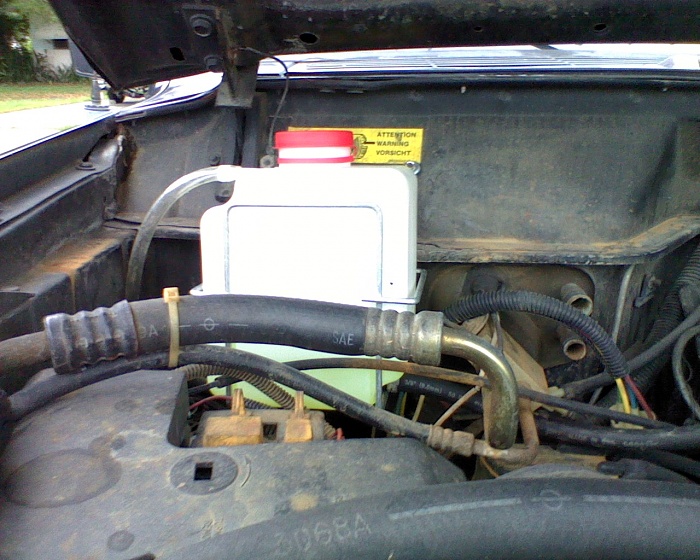

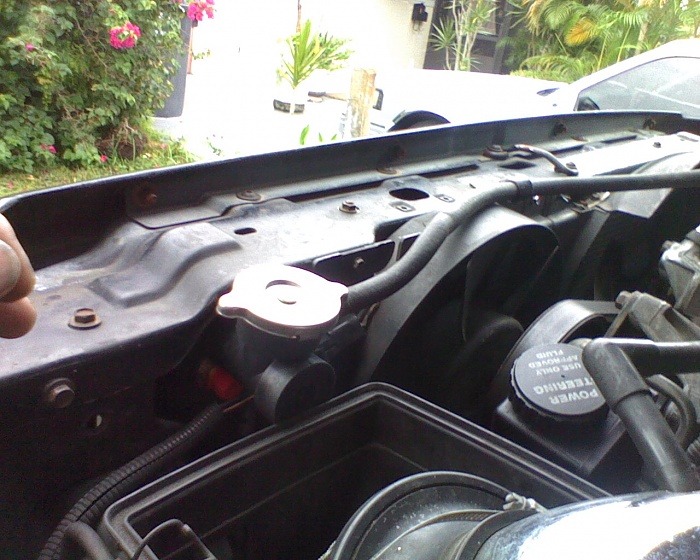

change to 94 xj cooling system eliminate pressure bottle, i installed a new radiator for a 1994 xj and aftermarket over flow bottle i removed the pressure bottle connected the two hoses from the motor direct to heater core eliminatimg heater control valve and plug vacuum line. I mounted new over flo bottle were pres bottle was making sure cap is low enought to clear hood when shut removed old radiator swapped mounting brackets from old raditor to new radiator the are a little shorter than new ones took old coolant sensor out of old radiator and removed plug in new radiator using the gasket on plug on sensor along with old gasket from old radiator screwed back in sensor.I installed new radiator its a little snug but it works ran new hose using hose clamps from neck of radiator to bottom nipple on over flo bottle ran hose from top nipple of over flo bottle down by ac drain hose. Fill cooling system run xj till thermostat open install radiator cap and no more pressure bottle

freegdr

renix upgrade

JeepingDan

Yup did that to mine and it works great. No more stupid bottle over flowing and cracking.

freegdr

works perfect if you have an automatic you have to figure out the lines

sandaddik2

iv got a 99 radiator in mine, but the fan switch sensor is on the thermostat housing so i swapped everything out but the sensor doesnt want to work and kick on the fan, how did you go about wiring in the sensor? pics?

freegdr

my sensor is on the rad by cap

freegdr

ther is no sensor on the housing on an 89 that would be a coolan temp sensor on ours it on the motor

freegdr

there are three sensors that have to do with h2o coolant temp sensor cooling fan temp sensor coolant temp sender

Gee oh Dee

Not bad, what'd it cost you? Less than $75?

I should do this to my truck.

freegdr

150 all new parts

zswiftcam

Ok. So my system is driving me crazy! Very nice conversion. My dilema is that I just put a new rad in (closed style), so I don't want to buy another. However, I was wondering about one of the aluminum overflow tanks with the filler neck and cap. Could I run that and a T-style filler neck with cap in the upper hose or would that be an overkill. It is just getting worse. Constantly burping it. Last time the overflow boiled over. The plan is ALL new hoses, clamps, and those two additions. Any thoughts? oh, and it's an 89 cher-limited 4.0 auto. No extras yet.

freegdr

as long as it has two holes for the two hoses it should work

freegdr

get one of these ad install in top rad hose at higest point run small hose to aftermarket overflow tank and connect two hoses from oldpressure bottle together

zswiftcam

yep, thats the t-fitting i was talking about. in addition to the new overflow with the neck and cap like the t. then just run the small line from the t to the new overflow and then the old lines from the overflow, union them together? letcha know how it turns out. thanks alot! hopefully the headgasket isn't blown. I'm going to do cyl pressure tests and coolant sys pressure tests before i pull anything apart to see if I can narrow this down sum.

sandaddik2

mine doesnt have a sensor in the radiator,


nope but i put the housing from a 99 in my 89 and its to turn on the electric fan, thats the set up that i ended up with i just cant get the fan to kick on.
