Renix backfiring/popping
#1
Member
Thread Starter
Join Date: Oct 2012
Location: Springfield, Mo
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Renix backfiring/popping
1988 Renix Cherokee
List of things already done:
Throttle body cleaned
IAC Cleaned
IAT Cleaned
TPS adjusted to spec
Butterfly Adjusted to spec
CTS Replaced
CPS Replaced
C101 Connector Cleaned
Grounds refreshed (.5 Ohms pobing B on TPS)
New Plugs Gapped to spec
New Rotor in distributor
No Vacuum leaks
It's like the Jeep is out of time but from what I understand these are automatically timed. When you floor it, it doesn't have full power, it will bog and when revved in neutral it will backfire and occasionally pop..
I've been dealing with this thing for 4 weeks... Someone has to have some info.
List of things already done:
Throttle body cleaned
IAC Cleaned
IAT Cleaned
TPS adjusted to spec
Butterfly Adjusted to spec
CTS Replaced
CPS Replaced
C101 Connector Cleaned
Grounds refreshed (.5 Ohms pobing B on TPS)
New Plugs Gapped to spec
New Rotor in distributor
No Vacuum leaks
It's like the Jeep is out of time but from what I understand these are automatically timed. When you floor it, it doesn't have full power, it will bog and when revved in neutral it will backfire and occasionally pop..
I've been dealing with this thing for 4 weeks... Someone has to have some info.
#2
CF Veteran
Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,805
Received 99 Likes
on
88 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Job #1 is to verify fuel pressure. I didn't see that on your list. Backfiring is often due to an imbalance in fuel/air ratio. Verifying fuel pressure is one of the first things a technician would check if you took it to a shop. Must be done with a fuel pressure gauge which can be rented inexpensively from many parts stores; call around for availability. There are other possibilities to be sure, but gotta rule fuel pressure in or out before moving on......
For an 88, you should have 31 psi at idle. Then disconnect the vacuum line leading to the fuel pressure regulator and the pressure should jump to approximately 39 psi. Be darn sure that the vacuum line is not wet with raw fuel, which would indicate a ruptured fuel pressure regulator.
Good luck and keep us updated!
For an 88, you should have 31 psi at idle. Then disconnect the vacuum line leading to the fuel pressure regulator and the pressure should jump to approximately 39 psi. Be darn sure that the vacuum line is not wet with raw fuel, which would indicate a ruptured fuel pressure regulator.
Good luck and keep us updated!
Last edited by tjwalker; 12-24-2013 at 07:08 PM.
#3
Member
Thread Starter
Join Date: Oct 2012
Location: Springfield, Mo
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Job #1 is to verify fuel pressure. I didn't see that on your list. Backfiring is often due to an imbalance in fuel/air ratio. Verifying fuel pressure is one of the first things a technician would check if you took it to a shop. Must be done with a fuel pressure gauge which can be rented inexpensively from many parts stores; call around for availability. There are other possibilities to be sure, but gotta rule fuel pressure in or out before moving on
......
For an 88, you should have 31 psi at idle. Then disconnect the vacuum line leading to the fuel pressure regulator and the pressure should jump to approximately 39 psi. Be darn sure that the vacuum line is not wet with raw fuel, which would indicate a ruptured fuel pressure regulator.
Good luck and keep us updated!
......
For an 88, you should have 31 psi at idle. Then disconnect the vacuum line leading to the fuel pressure regulator and the pressure should jump to approximately 39 psi. Be darn sure that the vacuum line is not wet with raw fuel, which would indicate a ruptured fuel pressure regulator.
Good luck and keep us updated!
I think this issue has something to do with my starting issue as well which is when its cold it won't start.
#4
Member
Join Date: Nov 2013
Location: Faiview,Pa.
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 with 96 cam and 19lb.four hole injectors
Question. How can you have 31 at idle with the engine off? With just the key turned on, the pressure should be closer to 39 and it should hold after you turn the key off. If you start it and let it idle, pressure should be about 31. Pull the vacuum line to the regulator and it should jump up to around 39. You might want to double check to be sure you're ok.
#6
Member
Thread Starter
Join Date: Oct 2012
Location: Springfield, Mo
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Question. How can you have 31 at idle with the engine off? With just the key turned on, the pressure should be closer to 39 and it should hold after you turn the key off. If you start it and let it idle, pressure should be about 31. Pull the vacuum line to the regulator and it should jump up to around 39. You might want to double check to be sure you're ok.
#7
Member
Join Date: Nov 2013
Location: Faiview,Pa.
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 with 96 cam and 19lb.four hole injectors
By the way, I must commend you on your perservierance with learning the Renix system. I too am on my first Renix and they are not easy. Had a 96 xj before the 87 I have now. Very different!
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
1988 Renix Cherokee
List of things already done:
Throttle body cleaned
IAC Cleaned
IAT Cleaned
TPS adjusted to spec
Butterfly Adjusted to spec
CTS Replaced
CPS Replaced
C101 Connector Cleaned
Grounds refreshed (.5 Ohms pobing B on TPS)
New Plugs Gapped to spec
New Rotor in distributor
No Vacuum leaks
It's like the Jeep is out of time but from what I understand these are automatically timed. When you floor it, it doesn't have full power, it will bog and when revved in neutral it will backfire and occasionally pop..
I've been dealing with this thing for 4 weeks... Someone has to have some info.
List of things already done:
Throttle body cleaned
IAC Cleaned
IAT Cleaned
TPS adjusted to spec
Butterfly Adjusted to spec
CTS Replaced
CPS Replaced
C101 Connector Cleaned
Grounds refreshed (.5 Ohms pobing B on TPS)
New Plugs Gapped to spec
New Rotor in distributor
No Vacuum leaks
It's like the Jeep is out of time but from what I understand these are automatically timed. When you floor it, it doesn't have full power, it will bog and when revved in neutral it will backfire and occasionally pop..
I've been dealing with this thing for 4 weeks... Someone has to have some info.
No plug wires?
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

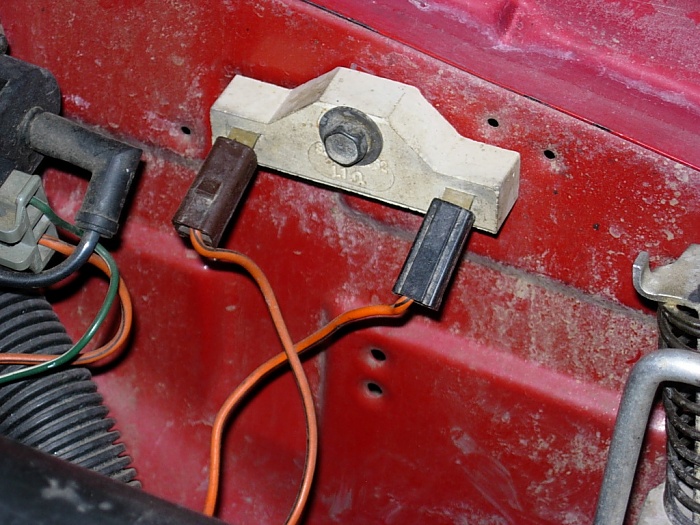

With the engine running, get a voltage reading on each terminal of the fuel pump ballast resistor.
#10
CF Veteran
Hey guys I know its a little off subject but that ballast resistor... what's the cons and pros?
And why some people just bypass them instead of buying a new one?
And why some people just bypass them instead of buying a new one?
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Supplies 12 volts to the pump on cranking and drops the voltage to about 10 when running.
Bypass it. Pump too loud? Hook it back up.
