Rebuilding a 93 fuse block crimp tool?
#1
Rebuilding a 93 fuse block crimp tool?
whelp, i've traced some electrical gremlins to a set of garbage 3 gang ato fuse blade bus terminals and wouldnt you know it every crimp tool i have is worthless for this since its got three terminals. Any suggestions on crimp tools for a job well done? Heres a pic of the kind of thing im working with.
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
You need one like a spark plug wire terminal tool. There are 2 crimps that need to be done.
Like this. only for smaller connectors.
https://www.summitracing.com/parts/tay-43390/overview/
Like this. only for smaller connectors.
https://www.summitracing.com/parts/tay-43390/overview/
#3
Senior Member
Join Date: Jul 2011
Location: West Covina, Ca.
Posts: 535
Likes: 0
Received 25 Likes
on
21 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Note from DJ
Have a look at this model

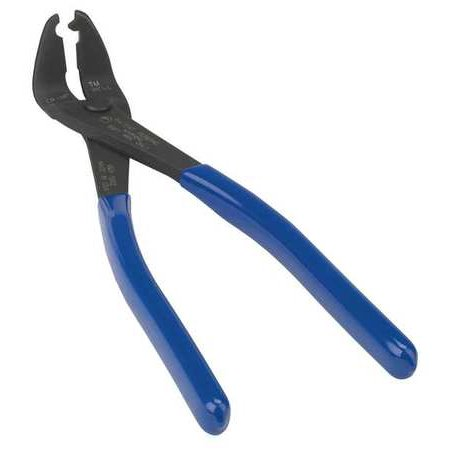

Electrical Wire and Cable Angled Crimpers by OTC
Number 5912
Capacity 22 to 10 AWG
Overall Length 9"
Dimensions: 13.2 x 2.9 x 2.2 Inches
If this is no good try crimping tool in your search engine and have a look.
Have a look at this model
Electrical Wire and Cable Angled Crimpers by OTC
Number 5912
Capacity 22 to 10 AWG
Overall Length 9"
Dimensions: 13.2 x 2.9 x 2.2 Inches
If this is no good try crimping tool in your search engine and have a look.
#4
CF Veteran
Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,679
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Or.... cut the bar between holes, crimp each wire, then bolt a bar over top of them all to provide path for current flow. Or resoldier the bar back together. No experience, just firing off ideas.
#5
<br /><br />I've been considering this too- think it'll be my last resort if I can't find a good tool. Thanks for the reply!
#6
You need one like a spark plug wire terminal tool. There are 2 crimps that need to be done.
Like this. only for smaller connectors.
https://www.summitracing.com/parts/tay-43390/overview/
Like this. only for smaller connectors.
https://www.summitracing.com/parts/tay-43390/overview/
#7
Thanks dj. I've been looking all over the Internet for hours but I've been getting sh#$ for results. Go figure.
