Priming Oil Pimp

Thread Tools

Search this Thread

Old 01-30-2014, 12:41 PM
  #1
Junior Member
Thread Starter

wingit's Avatar

Join Date: Nov 2011
Location: Birmingham, Al
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default Priming Oil Pimp

I replaced the rear seal and oil pan gasket. I had to remove the oil pump to do this. I got it all back together and removed the fuel pump relay to prime the oil system. I tried 5 ten second starts and the oil pressure is still at zero. The FSM says nothing about priming this but I thought it would be a good idea. Any thoughts on this are greatly appreciated.
Old 01-30-2014, 12:45 PM
  #2
Senior Member

prcherokee's Avatar

Join Date: Mar 2012
Location: FL.
Posts: 615
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Default

Hoe and pimp.
Old 01-30-2014, 01:20 PM
  #3
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes on 14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

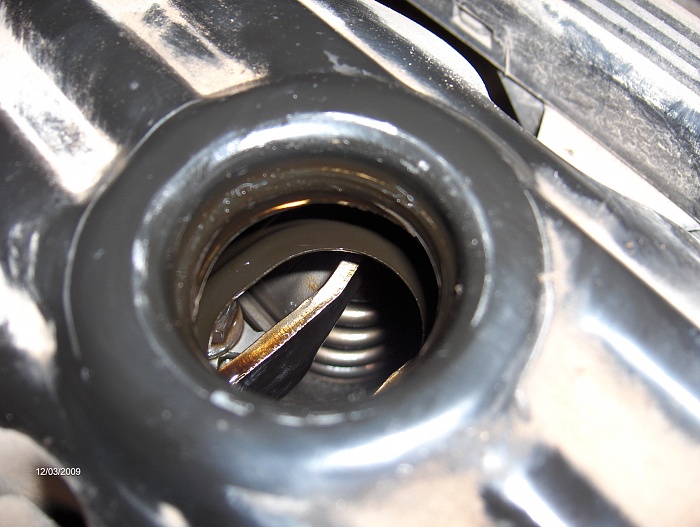

Can u look in thru the oil fill hole to see if oil is pooled in a rocker after cranking? If so, oil has made it to the top, meaning the pump is primed, and good to go.
Attached Thumbnails Priming Oil Pimp-003.jpg
Old 01-30-2014, 01:38 PM
  #4
Senior Member

bigbadon's Avatar

Join Date: Jan 2012
Posts: 952
Likes: 0
Received 3 Likes on 3 Posts
Year: 2004
Model: Grand Cherokee
Engine: 2000 4.0
Default

Crank it up and give it a little time. IT should build pressure within 30 seconds. Since this isn't a dry rebuilt engine there is enough residual oil to run it for a minute or two at idle. Look at this way...you don't prime your pump every time you change your oil. If it does not build pressure you will have to drop the pan to investigate why. An easy way to prime the pump if that is what you want to do is unscrew the filter and pour oil into the block via the inlet port (outer hole, not the center)

Last edited by bigbadon; 01-30-2014 at 01:43 PM.
Old 01-30-2014, 01:51 PM
  #5
Junior Member
Thread Starter

wingit's Avatar

Join Date: Nov 2011
Location: Birmingham, Al
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Took the oil filter off and there is nothing in it!
Old 01-30-2014, 01:58 PM
  #6
Junior Member
Thread Starter

wingit's Avatar

Join Date: Nov 2011
Location: Birmingham, Al
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Okay, I cranked and it got up to pressure in about 10 seconds. Thanks
Old 01-30-2014, 02:14 PM
  #7
CF Veteran

Roler's Avatar

Join Date: Jan 2012
Location: Australia
Posts: 3,106
Received 301 Likes on 250 Posts
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Default

And that was only 7 minutes after your " I took the filter off "post!
patience together with endurance is a good thing sometimes

and lol regarding the thread title...
