Picture of exhaust hanger installed....
#1
Picture of exhaust hanger installed....

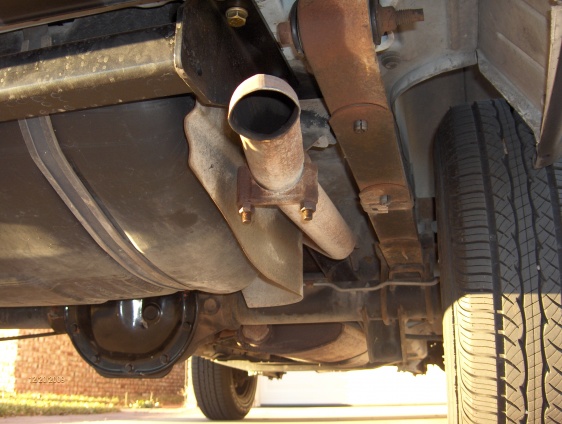

Does anyone have or could anyone show me a picture of the rear most exhaust hanger installed? It is a walker part #36377. I took my '96 wheeling today for the first time and broke that hanger back there. I got the new hanger but have no idea how it is supposed to install. I tried searching for pictures but found none. Any help would be appreciated. Thanks!!!!
#5
Member
Join Date: Dec 2011
Location: Belmont NC
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
djb383: Don't mean to highjack this post but I noticed your hanger bushings. Are they new? I've got rattles I'm slowly working out, replacing bushing, etc. I think all are factory. My leaf spring bushing look dry rotted. Do they slip in fairly easy or are they pressed in?
#7
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
djb383: Don't mean to highjack this post but I noticed your hanger bushings. Are they new? I've got rattles I'm slowly working out, replacing bushing, etc. I think all are factory. My leaf spring bushing look dry rotted. Do they slip in fairly easy or are they pressed in?
Trending Topics
#8
The big plate you see is held up against the rear frame stubs with two very heavy-duty bolts; they will be extremely unpleasant to remove. I recommend either a big impact gun or a breaker bar with a big cheater on it. This is also holding an exhaust shield up. Should one or both of the big bolts break off, you'll have to fish the big hunk of steel out of the frame stub, so that you can remove the broken pieces of bolt and clean up the threads or re-tap. Hopefully that won't happen.

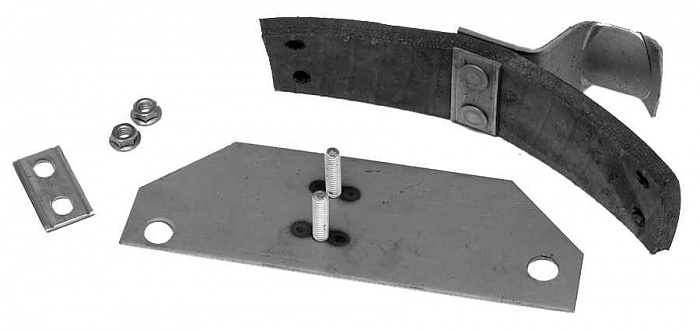

Wrap the rubber piece you have sort of into an "O" so that the holes overlap and you can slip them onto the studs that are welded into the plate. Then slip the small metal piece with two holes over the studs and secure them with the nuts.
Obviously you then bolt the big plate up to the frame and secure the pipe to the hanger with a U-bolt.
Wrap the rubber piece you have sort of into an "O" so that the holes overlap and you can slip them onto the studs that are welded into the plate. Then slip the small metal piece with two holes over the studs and secure them with the nuts.
Obviously you then bolt the big plate up to the frame and secure the pipe to the hanger with a U-bolt.
#9
Thanks for all th help. Once I had it up in the air it was pretty self explanatory. I have a hitch with some pretty rusted bolts on it. So i just drilled two new holes and fished some bolts through the frame.
#10
Member
Join Date: Mar 2014
Location: Central MA
Posts: 120
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
This job was a complete pain in the butt. There was no way the two large bolts going into the frame that keep the heat shield and muffler hanger attached to the frame would have come loose unless I used air tools; and I don't own air tools. Neighbor saw me hammering on a cheater bar and asked if I wanted to use his air gun. We both worked on it for an hour trying back and fourth to tighten and loosen the 2 bolts which are first off all like 2.5 inches long for no real reason I could appreciate, and they were very dry and rusted and since they're up in the frame, good luck getting PB Blaster up there. They bolt into a long flat piece of threaded metal that is slid into the frame when there is no bumper on the car, it is the same plate with threads tapped into it that the tail hitch uses.
I was lucky enough that the local NAPA store had this hangar (Pep Boys did not) and it was easy enough to orient it and put together the rubber straps into a circle and tighten those bolts before putting the hanger up on the Jeep. Don't forget to also buy a 2-1/4 U bolt strap to attach the hanger to the tail pipe.
Will post a photo of the new one soon, rust ate through the bend of the original one right where it met the tail pipe
If I wasn't gung ho about having stock/original parts installed, I would have rather drilled a hole into the frame and attached a galvanized strap to hang the tail pipe but I have a feeling it would still rattle against the heat shield like what was happening when the hangar broke. Who ever designed the attachment points for this part was not a mechanic. I put anti sieze on the bolts, and white lithium up in the threads inside the frame since I will eventually want to install a tow hitch and I believe the same bolts need to be unscrewed during that install.
Thanks for listening to my rant,
Squelchtone
I was lucky enough that the local NAPA store had this hangar (Pep Boys did not) and it was easy enough to orient it and put together the rubber straps into a circle and tighten those bolts before putting the hanger up on the Jeep. Don't forget to also buy a 2-1/4 U bolt strap to attach the hanger to the tail pipe.
Will post a photo of the new one soon, rust ate through the bend of the original one right where it met the tail pipe
If I wasn't gung ho about having stock/original parts installed, I would have rather drilled a hole into the frame and attached a galvanized strap to hang the tail pipe but I have a feeling it would still rattle against the heat shield like what was happening when the hangar broke. Who ever designed the attachment points for this part was not a mechanic. I put anti sieze on the bolts, and white lithium up in the threads inside the frame since I will eventually want to install a tow hitch and I believe the same bolts need to be unscrewed during that install.
Thanks for listening to my rant,
Squelchtone
