passenger door hing pin
#1
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
passenger door hing pin
I have 85' 4door, and the driver rear door hing pin has wore through, who sells one and how to remove old one. I tried using a punch to drive old one out, no luck.
ANYONE ELSE EVER HAVE ANY LUCK REMOVING ONE?
ANYONE ELSE EVER HAVE ANY LUCK REMOVING ONE?
#3
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
maybe, I can't get it out, I only see the top and its flush with the door hindge. I can tell its a hollow tube with a split down one side,
so how do you remove old one, and is new one a dealer only Item?
so how do you remove old one, and is new one a dealer only Item?
#4
Senior Member
Join Date: Nov 2011
Location: shelley, idaho
Posts: 667
Likes: 0
Received 1 Like
on
1 Post
Year: 1988
Model: Cherokee
Engine: 242CID I-6
great time to do the removable door upgrade! well if you dont want to do that.. try spraying some PB down it and let it set for a day then spray it again then use a small pocket screw driver (flat blade) then get on the edge of the pin and tap it out.
#5
Senior Member
Join Date: May 2010
Location: MI 48642
Posts: 882
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
Try to tap it up from the bottom. The door will torque on the pin at some positions making it hold tighter iirc. You can either replace it with a bolt that fits, or take the pin from another door and replace that one with a bolt. That solves the loud pop click pop sound every time it opens/closes lol.
#6
Hit with a small hammer from the bottom till it wont go farther then hit it with a screw driver and hammer from the bottom if it's the pin in the picture took mine out today to do the removable door app
#7
CF Veteran

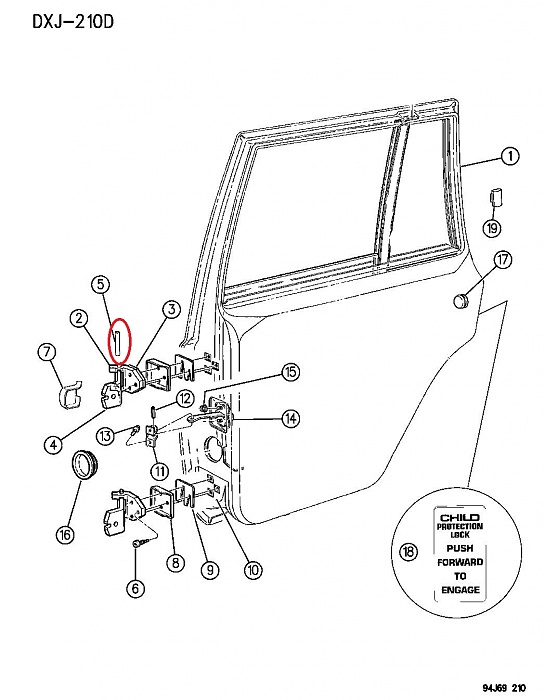

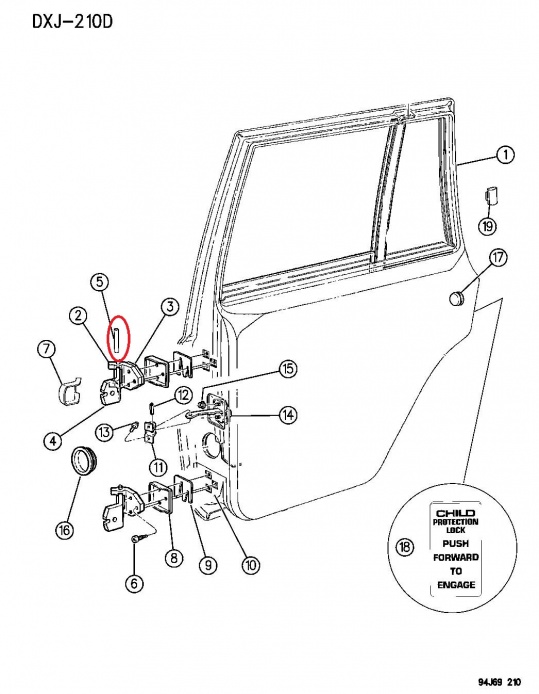

The pin in the photo I posted is from the door index stop, not the hinge, itself. If this is what's broken in yours, shoot me a PM with your address and I'll mail you the one in the picture. I've got an extra.
Trending Topics
#9
Seasoned Member
Join Date: Feb 2011
Location: east mesa, AZ
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: rebuilt 4.0
#10
Newbie
Join Date: Apr 2012
Location: Mesa az
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
junk yards guys i bought the whole hinge Assembly that goes in for ten bucks. i need the pass side since mine is rhd and it was in the first jeep i looked at. my is also a 96 and the one i got is out of an 88 so i dont think they ever changed dramatically
#12
Member
Join Date: Nov 2012
Location: British Columbia
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
Anyone have a part number or something for the correct pin, my 1993 has some slight wear on the drivers door that I want to tighten up, don't want to go doorless.
I can't seem to find a pin for this door anywhere, they list parts for the Grand cherokee's and the XJ's after the hinge redesign but nothing for the early year to about 1996 ish
Some help would be appreciated if someone knows the fix for this!!
thanks
I can't seem to find a pin for this door anywhere, they list parts for the Grand cherokee's and the XJ's after the hinge redesign but nothing for the early year to about 1996 ish
Some help would be appreciated if someone knows the fix for this!!
thanks
#14
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Wrong pin guy its a hinge pin hes needing i got mine from a 4dr from the rear doors alot less used .
Last edited by freegdr; 12-02-2012 at 05:16 AM.
