Part ID
Hello:

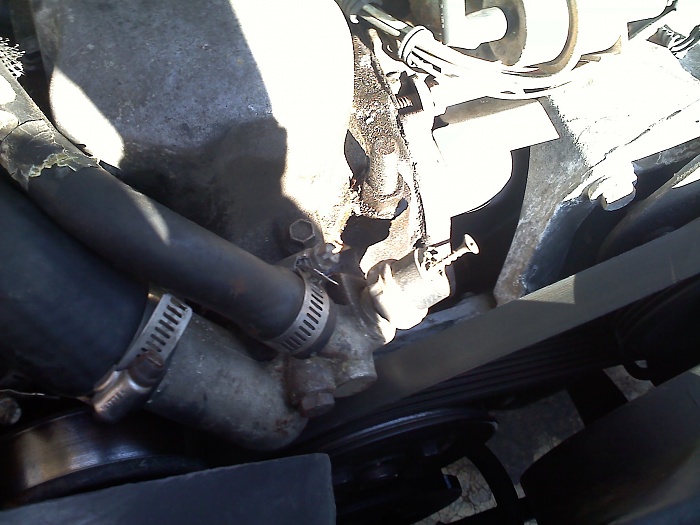

Anyone out there know what this is/was supposed to be?

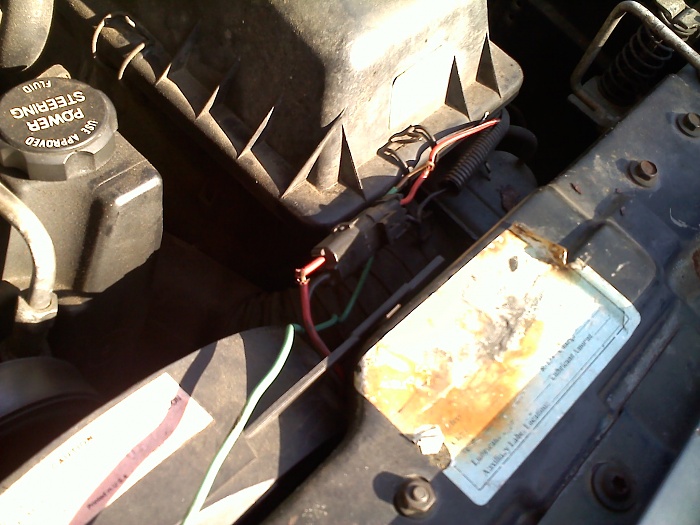

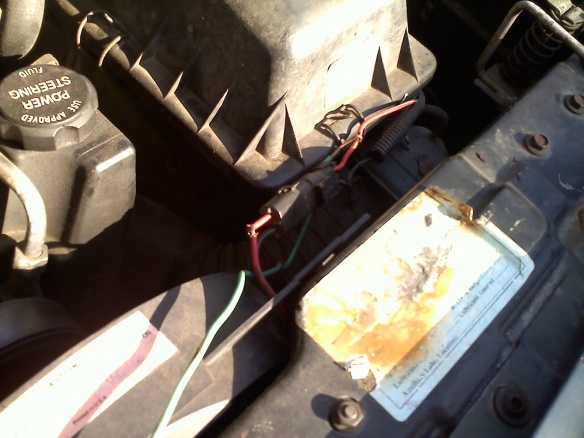

I'm guessing it is part of the cooling system. Also, there is a green wire that appears to be hooked into one of the fans. the other end goes directly to the battery.
Pictures are attached.
I would like to undo the previous owner's mods and return to stock before I start upgrades.
Any thoughts or suggestions would be greatly appreciated.
Thanks!
Anyone out there know what this is/was supposed to be?
I'm guessing it is part of the cooling system. Also, there is a green wire that appears to be hooked into one of the fans. the other end goes directly to the battery.
Pictures are attached.
I would like to undo the previous owner's mods and return to stock before I start upgrades.
Any thoughts or suggestions would be greatly appreciated.
Thanks!
#3
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
u8nless the renix motor has been removed and a HO 4.o installed that is not where the renix cooling temp sensor is located on your year, as for the fan being wired straight to battery the radiator should have a switch located on driver side tank right above the hose that would control the fan
Last edited by freegdr; 11-05-2011 at 10:59 AM.
#4
CF Veteran
Join Date: Jun 2011
Location: Southeast, tx
Posts: 1,217
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0L upgraded charging system & blue top, flowmaster 44, hi flow cat and two core rad.
Looks like someone put a newer model
t-stat housing on. If someone wired up the fan straight to the battery then there might be a problem with it functioning properly when you fix it, I almost wired mine straight up but I tried a new relay first and that fixed it.
t-stat housing on. If someone wired up the fan straight to the battery then there might be a problem with it functioning properly when you fix it, I almost wired mine straight up but I tried a new relay first and that fixed it.
#5
Member
Thread Starter
Join Date: Nov 2011
Location: Raleigh, NC
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Wagoneer
Engine: 4.0
I believe this is a Renix, not an HO.
So if someone has switched out the t-stat housing, is there a plug I can put where the drywall screw is currently residing?
Also, where is the temp sensor on a Renix located?
So if someone has switched out the t-stat housing, is there a plug I can put where the drywall screw is currently residing?
Also, where is the temp sensor on a Renix located?
#6
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
just unscrew the sensor and get a brass plug for it the coolant temp sensor is located on the drivers side engine block under the intake/exhaust manifold .. FYI on renix it has nothing to do with the cooling fan operation .
Last edited by freegdr; 11-06-2011 at 01:15 PM.
Trending Topics
#8
CF Veteran
MY knock sensor is on the block where you have it highlighted......
Strange.
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Your temp gauge SENDER is at the back of the head. The temp SENSOR for the fuel injection system is on the driver's side of the block about 1/2 way back.
