I have an overhead console that I am instilling in my 99, its out of the correct year and I have everything that I need but On of the plugs on the harness got cut off, and I have no idea where on of the wires goes.
Its a single pink wire coming off of the harness going towards the plug down by your feet, I just cant find where it plugs into, or if its even needed, I have the wiring diagrams but they didnt help a whole lot, so Im hoping that someone has done this before that can help.

sik_xj

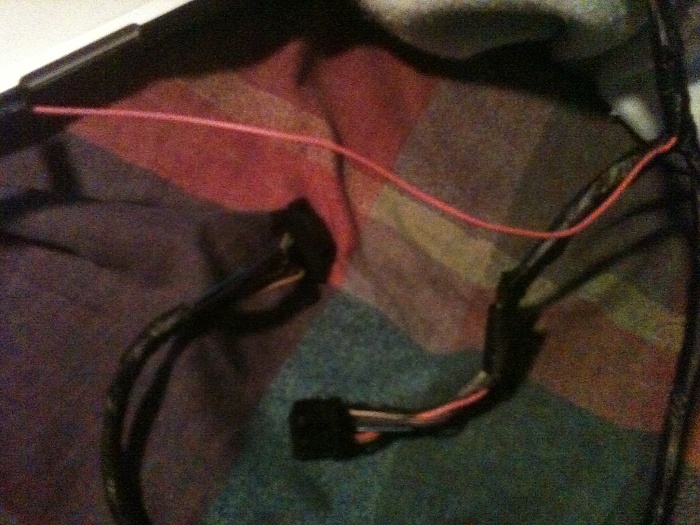

Attachment 100865I dont know if that picture helps but it seems to have been cut at both ends the beginning of the harness as well as where it appears to exit the harness on the way out

tiny43

single pink is for lighted sunvisor vanity mirror 12 v constant

tiny43

What year model is the console from and what year is your jeep ?

sik_xj

its a 99 sport I think. I dont have lighted visors. Im hoping I wont need it, is this true?

TheNerd

True

sik_xj

Have any of you guys installed an ohc? I need some help installing mine, pm me if possible

TheNerd

What sort of trouble are you having? Anything technical should be kept on-line in case any future forum goers (who are good searchers) end up with the same situation.

sik_xj

Yeah you're right about people needing help and searching through threads I do it all the time. Anyways, I had purchased a console and the precious owner had sort of screwed up the wiring it was cut up in spots. I thought I could splice into it, turns out I was wrong. Originally I was looking for a wiring diagram or something but I ended up pulling out the plug and repining it to run just my dome lights on the console rather than hacking into my wiring and just waiting to find the proper harness.
I found some pretty vague guides to the install and wiring for this, but it was for the older style ones. The wiring does run down and plug into the side by the passengers feet right? I searched and searches and only found 1 empty plug. Unless the existing plug for the dome light gets unplugged? The plugs were cut off my harness so I'm just trying to get an idea as to where it exactly plugs In

TheNerd

Yes
Correct. Your existing overhead light wiring harness gets un-plugged first, allowing for both of the OHC harness pigtails to be plugged in by the passenger feet.

sik_xj

That's what I thought, alright cool thanks for the info

RRXJeeper71

does anybody know why there would be a little printed circuit board in my 01 Sport dome light assembly? I have two plugs, one for dome light power and another goes to little circuit board

prcherokee

Remote door lock Receiver.
