Oil pump help
#1
Member
Thread Starter
Oil pump help
Hi all. I'm replacing the rear main seal on my 1992 laredo, and was told I should do the oil pump as well. Do I need to replace the entire pump and screen? Is it am easy job to do? Can I just install it and it's ready to go or do I need to prime it or something? I read that somewhere but dont understand it as there is no clear explination. If anyone has a write up on how to replace the oil pump that would be great, as well as recommendations as to which pump I should buy
#2
CF Veteran
The main issue is the oil pan...it will not come out of the way until you disconnect the front shocks and then lift the frame until you can remove the pan.. the pump should be a stock melling. Do not get the Melling HV ...it will not fit without pan modification. The oil pump is 2 bolts but you have to buy the pickup screen separate and then press them together...If your not super mechanical then you might want a machine shop to put it together for you...before you install your pump/pickup assy...pour oil down the tube and spin shaft by hand until youn feell oil pressure resistance.. but then its two bolts to install ...to do the seal its best to loosen all the bearing caps...you will need a 1/2 drive torque wrench to put them all back correctly and buy the Felpro oil pan gasket...makes life easy...its the blue one with the holders...Its best to prime and to do it right you need to buy an old distributor on ebay...knock off the gear and use a drill to prime...If you cant do that then pull all your plugs and crank the engine for 10-30 seconds when all done to prime everything...you should see oil pressure on your gauge...once you have oil pressure for 15 sec then put plugs back in and start it up...buy the seal and pump assy from advance auto and make sure you input the correct year...you will get the correct parts...its an all day project...maybe 2 if your new at it
#3
Member
Thread Starter
The main issue is the oil pan...it will not come out of the way until you disconnect the front shocks and then lift the frame until you can remove the pan.. the pump should be a stock melling. Do not get the Melling HV ...it will not fit without pan modification. The oil pump is 2 bolts but you have to buy the pickup screen separate and then press them together...If your not super mechanical then you might want a machine shop to put it together for you...before you install your pump/pickup assy...pour oil down the tube and spin shaft by hand until youn feell oil pressure resistance.. but then its two bolts to install ...to do the seal its best to loosen all the bearing caps...you will need a 1/2 drive torque wrench to put them all back correctly and buy the Felpro oil pan gasket...makes life easy...its the blue one with the holders...Its best to prime and to do it right you need to buy an old distributor on ebay...knock off the gear and use a drill to prime...If you cant do that then pull all your plugs and crank the engine for 10-30 seconds when all done to prime everything...you should see oil pressure on your gauge...once you have oil pressure for 15 sec then put plugs back in and start it up...buy the seal and pump assy from advance auto and make sure you input the correct year...you will get the correct parts...its an all day project...maybe 2 if your new at it
#4
Old fart with a wrench
It's a gear pump and is mounted above the oil in the pan requiring suction to pull oil up. If it's full of oil it will suck. if it's dry, it won't. Vaseline forms a good seal and will pull the oil up instantly. It dissolves with heat.
I recall a 70-something Buick V6 a buddy of mine bought for a song. It had zero oil pressure, but had sat for a year without being started. The pump is mounted externally about where a fuel pump would be. We took the cover plate off, packed it full on Vaseline, and it started right up with 45 psi pressure!
I recall a 70-something Buick V6 a buddy of mine bought for a song. It had zero oil pressure, but had sat for a year without being started. The pump is mounted externally about where a fuel pump would be. We took the cover plate off, packed it full on Vaseline, and it started right up with 45 psi pressure!
Last edited by dave1123; 02-08-2020 at 08:07 AM.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Waste of time and $. It's not a Chevy. Oil pump failure is very uncommon in the 4.0 and the cheapo off shore built replacement pump likely isn't as good as the one that's in there.
#7
Senior Member
The melling HV pump is a worth your time install real simple job with pan already off. and the better oil pressure never hurts either.
Trending Topics
#8
Member
Join Date: Jun 2019
Location: Greeneville, Tennessee
Posts: 190
Received 25 Likes
on
22 Posts
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0

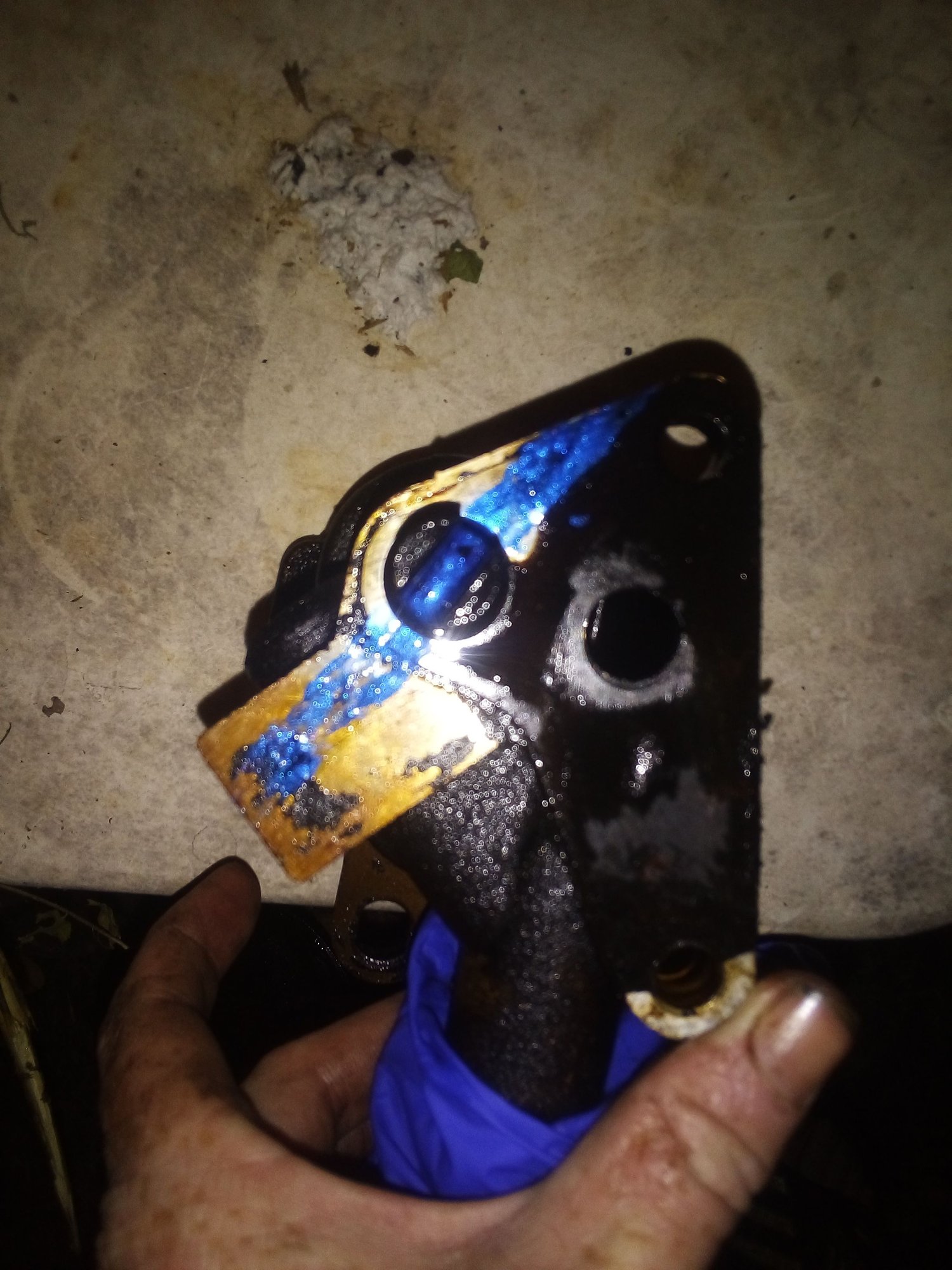

Top of the pump,
Last edited by Tgramsey; 02-08-2020 at 08:52 PM.
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Yep, You have to beat the crap out of the oil pan to get the HV pump to fit.
And, as far as priming the pump, disconnect your CPS and crank the engine over til you see oil pressure on the gauge. Happens quickly.
#11
CF Veteran
Join Date: Oct 2015
Posts: 7,362
Likes: 0
Received 1,535 Likes
on
1,176 Posts
Year: 2000
Model: Cherokee (XJ)
Also when you say CPS do you mean the Crank Positioning Sensor or Cam Positioning Sensor?
#12
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Nope. Put it all together, dizzy and all. Before first start, crank it over without CPS plugged in til you see it has oil pressure. Plug CPS back in and fire it off.
#13
CF Veteran
Join Date: Oct 2015
Posts: 7,362
Likes: 0
Received 1,535 Likes
on
1,176 Posts
Year: 2000
Model: Cherokee (XJ)
Easy peasy huh. Thanks for that.
Been thinking about building an engine, well really my friend will handle most of the heavy lifting but I will be involved, and been trying to educate myself about pre-oiling an engine and
all the preload stuff with rocker/lifters/whatnot I have been reading about lately.
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Just disconnect the Crank Positioning sensor huh.
Easy peasy huh. Thanks for that.
Been thinking about building an engine, well really my friend will handle most of the heavy lifting but I will be involved, and been trying to educate myself about pre-oiling an engine and
all the preload stuff with rocker/lifters/whatnot I have been reading about lately.
Easy peasy huh. Thanks for that.
Been thinking about building an engine, well really my friend will handle most of the heavy lifting but I will be involved, and been trying to educate myself about pre-oiling an engine and
all the preload stuff with rocker/lifters/whatnot I have been reading about lately.
What preload? You just torque them down.
Everyone needs to quit comparing these wonderfully easy engines to Fords and Chevys.
#15
CF Veteran
Join Date: Oct 2015
Posts: 7,362
Likes: 0
Received 1,535 Likes
on
1,176 Posts
Year: 2000
Model: Cherokee (XJ)
Been reading these threads lately.
Most of it is here:
https://www.cherokeeforum.com/f67/3-...ng-oil-255577/
