Oil pressure pegged out
#1
Member
Thread Starter
Join Date: May 2011
Location: Mesa, Az
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0l I-6
Oil pressure pegged out
Okay so, at first I had no oil pressure whatsoever in this jeep. That's the way i got it, she runs great with no metal in oil. I replaced the oil pressure sender today, as she started up the gauge went down to the bottom and back up to as far max as possible. The gauge wouldn't move before, so I know that I'm at least getting somewhere. But I still am yielding max values. Any help?
#4
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
I get the same thing on the ZJ, max reading. I am suspicious of the quality of calibration on the senders. Current sender is APC, offshore mfg. May try Napa or Chrysler next, need a made in USA quality sender. Good news is you see pressure and not a zero reading. Less likely the pressure is maxing our gauges at 75 plus psi or plus 5.4 bar is you have a metric gauge. I do see over 60psi on the XJ at road speed when fresh oil change, drops to lower 50's when oil is well used, 22 - 30 at hot idle.
#5
Seasoned Member
Join Date: Aug 2011
Location: washington
Posts: 328
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 6cyl
if the gauge pegs out with the key on engine off then theres a short in the wiring, i think short to ground but id check a wiring diagram to see if its power controlled or ground controlled
#7
Member
Thread Starter
Join Date: May 2011
Location: Mesa, Az
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0l I-6

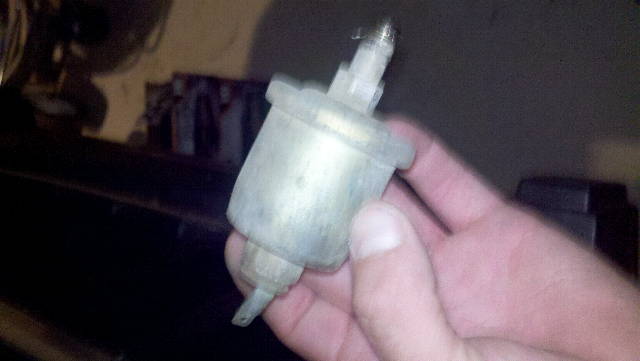

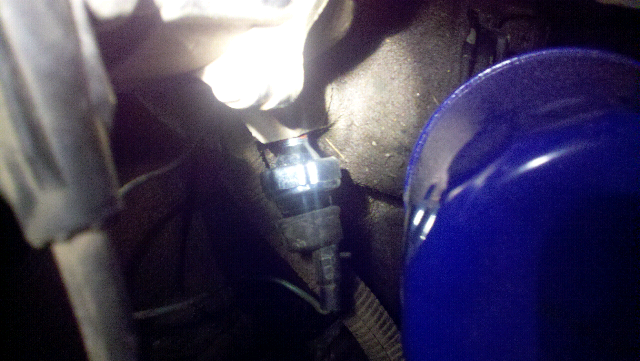

The sender is significantly smaller than the old one. And the thing that really gets me is that the old gage had a .040"snubber hole on it, the new one does not..i think the dummie at the parts counter gave me an oil pressure sender for an idiot light.. or it could be wiring, if it is a resistance type sender then an open would explain max readings.. I would post some pics of the old and new senders, but my droid isn't doing it. Thanks for the quick feedback guys
Trending Topics
#8
CF Veteran
Join Date: May 2009
Location: Glen Burnie, MD
Posts: 1,844
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 H.O. K&N, Borla headers, custom down pipe, magnaflow hi-flo cat, flowmaster to turn down tip
you my friend have yourself the wrong gauge sender unit. it should be about 4 inches long and have a plug type connector on the end of it
