Crow Horse

I'm looking to keep my 99 XJ semi stock (read - no lift or small lift) as it's my DD and work horse. My rear springs are sagging and I'm interested in hearing from folks who have OEM HD leafs and how they ride. The other quandary is which ones to choose as there are several available. Any input would be helpful and appreciated.

I looked at OME springs as they are high quality spring packs, but they are listed as having 1.5" and 2" lifts. I'm running 235's and don't want it to sit tail high........

SlackJaw

yea, i'm in the same boat...my rear leaf springs are sagging and i currently run 235's. I haven't heard of "HD" oem leaf springs. I found replacement OEM leaf springs for $90 brand new each.

Crow Horse

From what I've read, there are HD springs with 2 "arcs". I'm guessing the larger arc of the 2 is the Up Country spring, but not positive on this.

phoenix901223

if it comes up in the rear a little why not put small spacers in the front?

Crow Horse

Here's some info culled from other sites.....

LL - 3-1/8" free arch, load rating 405
LM - 5-5/8" free arch, load rating 605
LS - 6" free arch, load rating 675
LT - 7" free arch, load rating 755 UpCountry + 1 "

Dealer part numbers:

52000050 Standard Duty, Coded LB
52000051 Standard Duty, Coded LC, EC
52000706 Standard Duty, Coded LN, ES
52000544 Heavy Duty, Coded LK
52000545 Heavy Duty, Coded LL, EL
52000707 Heavy Duty, Coded LM
52002390 Heavy Duty, Coded LS
52002392 Heavy Duty, Coded LT ( UpCountry package +1” leaf spring)

OOdynamite

Quadratec sells regular replacement springs for 75 each. Just had them put on. Before and after

Crow Horse

I might have to add spacers up front. Will have to wait and see.

More info......

There are [8] part numbers listed by Ma Mopar for the 2001 XJ:

1] ZPS/ZUS 52000-050AB Standard Duty coded LB
(no other info)

2] ZFT/ZUT 52000-051AB Standard Duty coded LC, EC
3-1/8" free arch, 405# rated (standard 2WD)
QUADRATEC Standard Duty 56010.12

3] ZGU/ZVU 52000-707AB Heavy Duty coded LM
5-5/8" free arch, 605#

4] ZFU/ZUU 52000-706AB Standard Duty coded LN, ES
6-5/8" free arch

5] ZGS/ZVS 52000-544AB Heavy Duty coded LK
(Either 5-1/8 or 5-3/4") free arch, 575#
QUADRATEC Medium Duty 56010.10
JEEP 4886187

6] ZGT/ZVT 52000-545AB Heavy Duty coded LZ, EL


7] ZGV/ZVV 52000-390AB Heavy Duty coded LS
6.0" free arch, 675#
JEEP 4886185 (CROWN H-D; 6-3/8" f/a?)

8] ZGW/ZVW 52000-329AB Up Country (+1" height) LT code
7.0" free arch, 755#
QUADRATEC Heavy Duty 56010.11
JEEP 488186

JEEP TSB (NOV 1996) "Leaf Springs Sagging/Low Ride Height" may have info on spring rates, etc.


Confusing as all get out..... BTW, I lived on LI for most of my life.......Great fishing!

Crow Horse

How do they ride? My concern with standard replacement packs is that they will sag again especially if they are loaded frequently....

The Rooster

I have the up country package on my Jeep and they ride great... they have 135k on them... they are just starting to sag a little...

Rmart30

the HD from quadratec do not ride bad and they sit up a little higher than stock but settle in nicely. I put a set on my dads 99 about a year ago. So far so good.

Crow Horse

At this point, it's between the OEM HD springs at $99 ea. vs the OME HD springs at $116 ea. I would lean towards the OME packs but I think 2" lift in the rear with 235's wouldn't look good. Anyone have any pics with them and 235's?

GS Audio

I installed a whole new suspension setup last year. Same concerns as you, although I didn’t mind the “A-Team van slant look”, so opted for the HD springs. No noticeable ride quality difference, plus I know have a better load capacity without worrying about sagging. Don’t have a pic of my Jeep to show you right now….will try to get one this week.

I believe these are the springs I ordered though……

http://www.jeep4x4center.com/product-information.asp?number=52000707AB

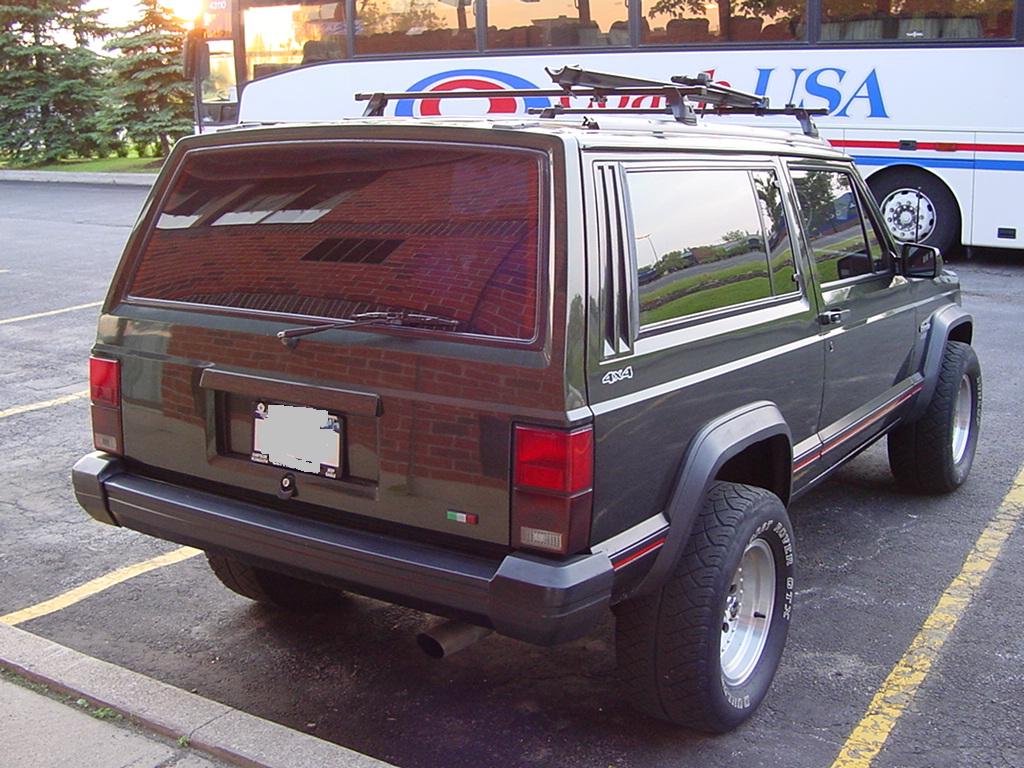

Gave about a 1 inch or so rear lift. Again, I kinda liked the rear lift look, plus when I put my wider tires on, I won’t have any worries about rubbing. This pic below is my old Jeep which I think had the 7” arch springs as it looks a little taller out back than what my current Jeep looks like.

dilljeepo

I bought two used packs from a guy who parted out and made a bastard pack, I added an extra leaf and replaced one, I have very minimal lift, if anything it's closer to original ride height. I payed 60 bucks for the two packs and it only took an evening to put everything together. Some say that they'll sag again but if you cut the eyes off the longest leaf and put that in I think it's a good set up (in my experience it was the longest leaf that was sagging a lot). And it's not too bad for stiffness and I feel good that it's a bit stiffer under load because that was my issue, it would bottom out over bumps with too much weight on the back

darkoverlift

I went full out Quadratec HD Replacement Leafs, Coils, Shocks and 235/75/15 look good, but should put 30X9.5 on and might clear 31’s… Since I have added lift shackles from IRO and their Spacer.

OOdynamite

The ride is much better then before
