No power to fuses 15, 17, 19


Old Aug 21, 2022 | 11:56 AM
Share
  #16
Rentmoney's Avatar
Rentmoney
Thread Starter
Junior Member

Joined: Apr 2022
Posts: 31
Likes: 0
From: NC
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0
Default
no fuel pressure, only 6 volts going to pump. Any ideas?
Reply
0
Old Aug 21, 2022 | 05:33 PM
Share
  #17
agreen's Avatar
agreen
Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2020
Posts: 923
Likes: 250
From: North Augusta, SC
Year: 1998
Model: Cherokee (XJ)
Engine: 4L
Default

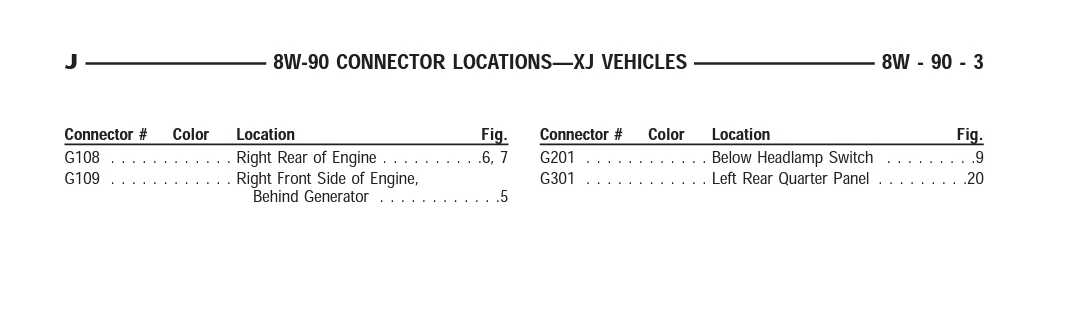

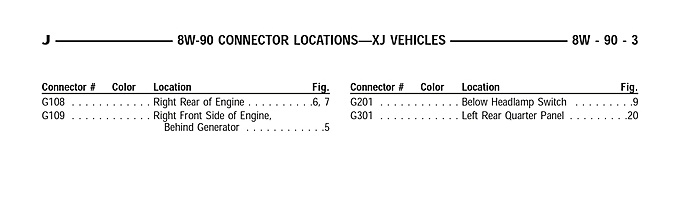

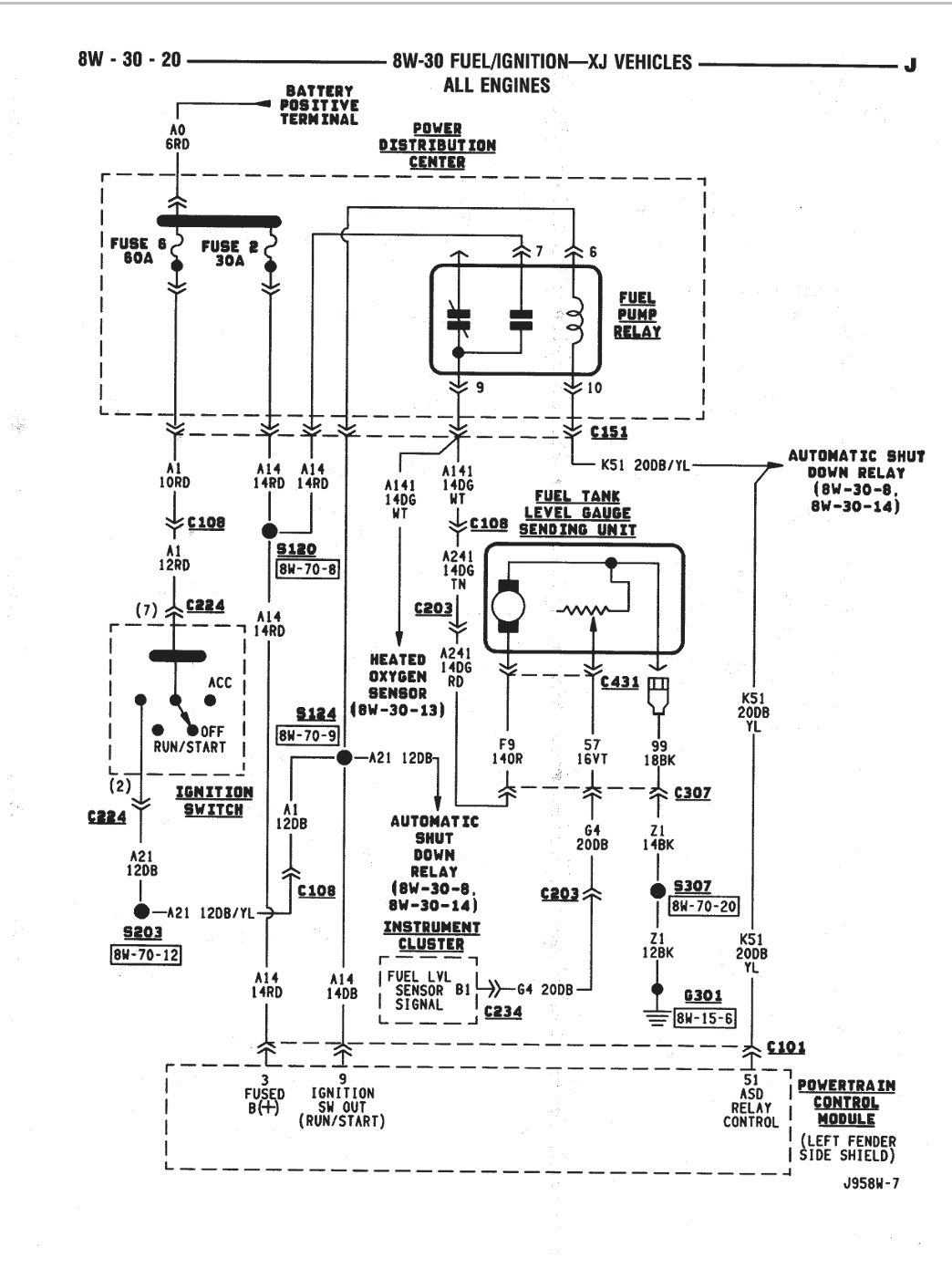

Check the fuel pump relay and also you might want to clean up the ground at G301. Those are the 2 most common issues.
Attached Thumbnails No power to fuses 15, 17, 19-screenshot_20220821-182525_adobe-acrobat.jpg   No power to fuses 15, 17, 19-screenshot_20220821-183053_adobe-acrobat.jpg
Reply
0
Old Aug 21, 2022 | 05:39 PM
Share
  #18
agreen's Avatar
agreen
Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2020
Posts: 923
Likes: 250
From: North Augusta, SC
Year: 1998
Model: Cherokee (XJ)
Engine: 4L
Default

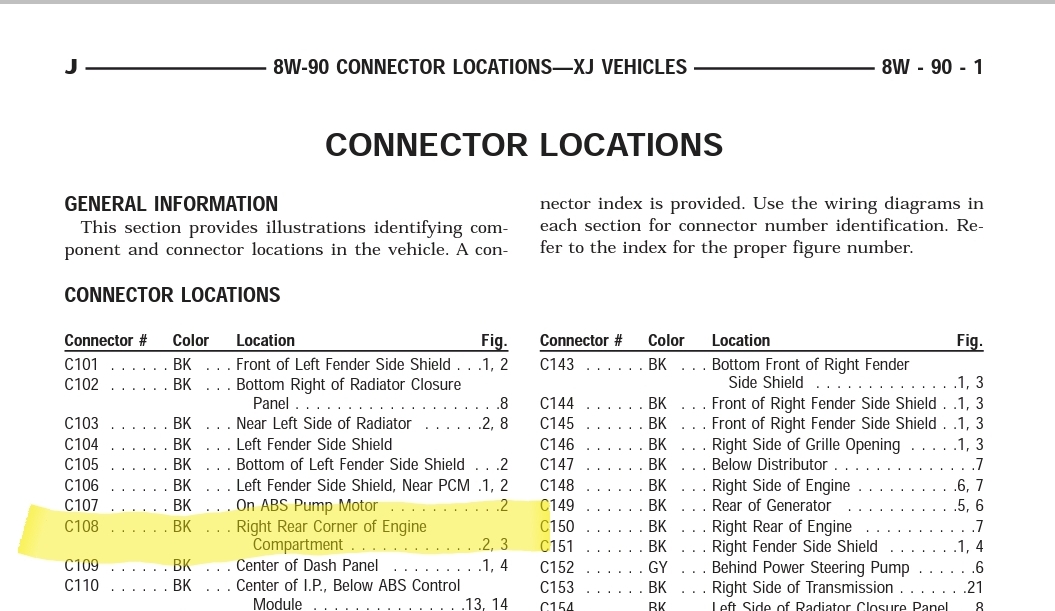

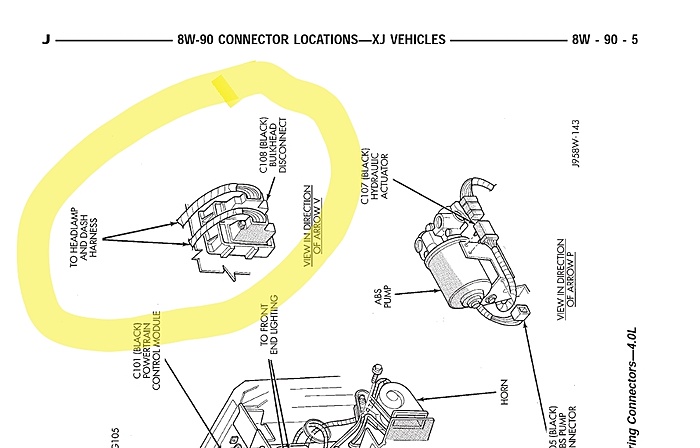

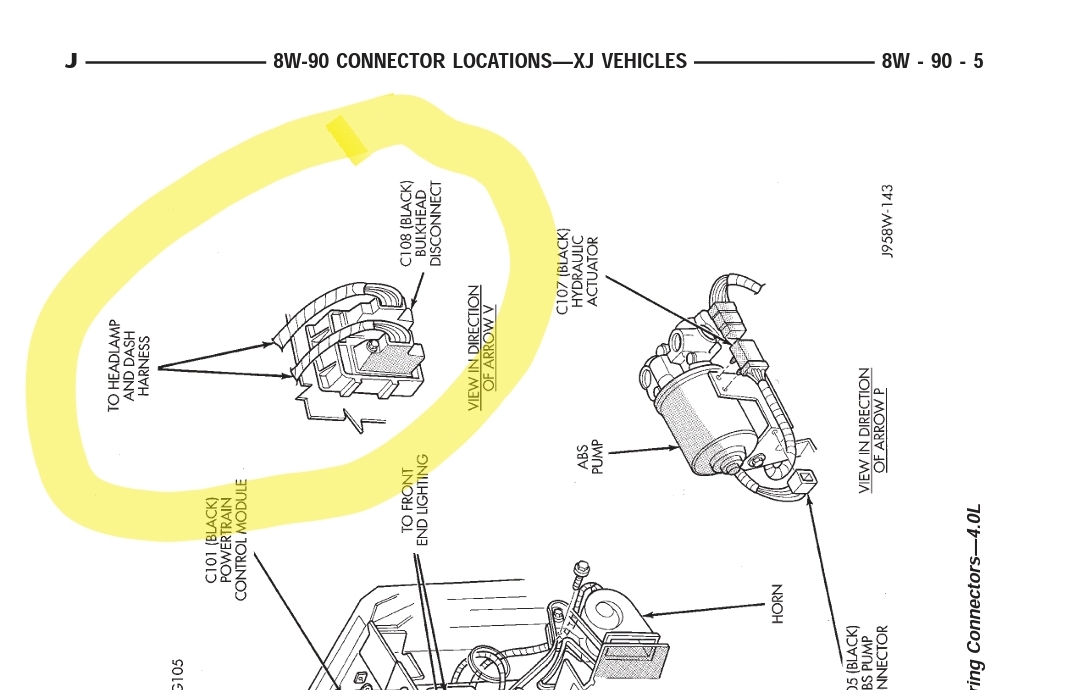

You could also unplug C108 and see if there's corrosion in there:
Attached Thumbnails No power to fuses 15, 17, 19-screenshot_20220821-183710_adobe-acrobat.jpg   No power to fuses 15, 17, 19-screenshot_20220821-183737_adobe-acrobat.jpg
Reply
0
Old Aug 22, 2022 | 07:00 AM
Share
  #19
Rentmoney's Avatar
Rentmoney
Thread Starter
Junior Member

Joined: Apr 2022
Posts: 31
Likes: 0
From: NC
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0
Default
Solved ... it was a shorted ignitiion switch
Reply
0
Old Aug 22, 2022 | 08:37 AM
Share
  #20
Roler's Avatar
Roler
CF Veteran

Joined: Jan 2012
Posts: 3,170
Likes: 312
From: Australia
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Default
Might be good for the followers to explain how you found it? At least there might be a closure possible!
