Which fuse or relay no power on cluster, radio, dome lights and locks

Old 07-06-2016, 01:52 PM
  #1
Member
Thread Starter

joeyjeepz's Avatar

Join Date: Oct 2015
Location: long island nass
Posts: 130
Year: 99
Model: Cherokee
Default Which fuse or relay no power on cluster, radio, dome lights and locks

changed radio and rewired the harness i grabbed all the wires and they touched, i herd a spark, im thinking blown fuse or relay, i checked most of the fuses on the pass side floor wall, i do not have a owners maunal if someone could tell me if they are all linked together, or would loose wires on the back of the cluster cause this, the dome light are out to which leaves me to think its not loose wires. Thank you
joeyjeepz is offline
Old 07-06-2016, 03:22 PM
  #2
Senior Member

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

In my 89 it's a 10 or 15 amp fuse if I'm not mistaken. If you have a test light you can to find the one.
LiamLikeNeeson is offline
Old 07-06-2016, 03:32 PM
  #3
CF Veteran

MoparNJeep's Avatar

Join Date: May 2012
Location: Puyallup wa
Posts: 1,209
Year: 1999
Model: Cherokee
Engine: 4.5L Stroker
Default

In the passenger kick panel there is some fuses. At the very top is 3 25amp fuses that are larger than the lower two rows. Its one of those
MoparNJeep is offline
Old 07-06-2016, 03:50 PM
  #4
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,922
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

freegdr is offline
Old 07-06-2016, 05:28 PM
  #5
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Year: 1999
Model: Cherokee
Engine: 4.0
Default

It's the IOD fuse in the PDC. Look under the cover of the PDC, it shows the location.
CCKen is offline
Old 07-07-2016, 02:08 AM
  #6
Member
Thread Starter

joeyjeepz's Avatar

Join Date: Oct 2015
Location: long island nass
Posts: 130
Year: 99
Model: Cherokee
Default

Thanks guys i will check it out!
joeyjeepz is offline
Old 07-07-2016, 12:12 PM
  #7
Member
Thread Starter

joeyjeepz's Avatar

Join Date: Oct 2015
Location: long island nass
Posts: 130
Year: 99
Model: Cherokee
Default

Soo the #1 fuse was blown (25 amp) still nothing im gonna keep searching, i just dont have enough time to search everything now
joeyjeepz is offline
Old 07-07-2016, 01:07 PM
  #8
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Year: 1999
Model: Cherokee
Engine: 4.0
Default

#1 fuse 25 Amp?


Here's your PDC:


Name:  %2098%2099%20PDC%20REV%2012_06_2015.jpg
Views: 399
Size:  454.3 KB
CCKen is offline
Old 07-07-2016, 01:21 PM
  #9
Member
Thread Starter

joeyjeepz's Avatar

Join Date: Oct 2015
Location: long island nass
Posts: 130
Year: 99
Model: Cherokee
Default

I ment this fuse panel, i will check the iod fuse tonight, thanks ken!

Last edited by joeyjeepz; 07-07-2016 at 01:31 PM.
joeyjeepz is offline
Old 07-07-2016, 01:36 PM
  #10
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Year: 1999
Model: Cherokee
Engine: 4.0
Default

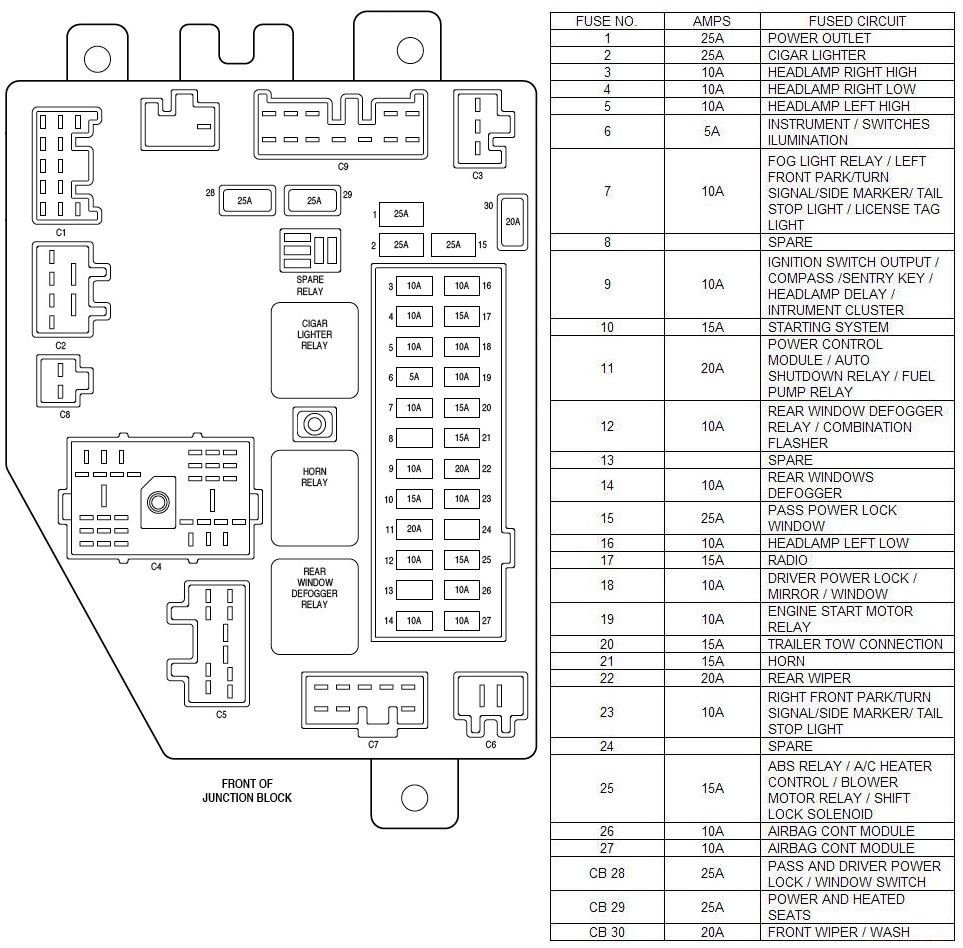

#1 25 Amp = Aux Power Outlet.
.


Name:  fuse20panel20pic20and20description2097-01-1.jpg
Views: 413
Size:  229.6 KB
CCKen is offline
Old 07-08-2016, 12:09 PM
  #11
Member
Thread Starter

joeyjeepz's Avatar

Join Date: Oct 2015
Location: long island nass
Posts: 130
Year: 99
Model: Cherokee
Default

Thank you KEN it was the IOD fuse!
joeyjeepz is offline
Old 07-08-2016, 12:20 PM
  #12
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by joeyjeepz View Post
Thank you KEN it was the IOD fuse!

Thanks for the follow up.


Remember, always remove the battery negative post connector when working on Jeep electrical systems - even removing and reinstalling sensor connectors.


Cheers.
CCKen is offline
Old 07-09-2016, 02:24 AM
  #13
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

Originally Posted by LiamLikeNeeson View Post
In my 89 it's a 10 or 15 amp fuse if I'm not mistaken. If you have a test light you can to find the one.
It's a whole different animal in the 97+

Our interior fuse panel is on the driver side above the left foot. In the 97+ (essentially all OBDII XJs), it's on the passenger side of the dash when you open the passenger door. Even uses the tiny fuses.
Basslicks is offline
Old 07-10-2016, 06:25 PM
  #14
Senior Member

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Ah forgot about that. Thanks man!
LiamLikeNeeson is offline
Old 07-12-2016, 09:20 PM
  #15
Newbie

JRPCHAMELEON's Avatar

Join Date: May 2016
Location: Vermont
Posts: 22
Year: 2001
Model: Cherokee
Engine: 4.0L
Default



My lights did the same thing although mine shorted out while on the highway in pitch black so that was a scary experience. Any ways the fuse that fixed my problem was #6 fuse, its the 5 amp one. The fuse panel cover doesnt have a 5 amp spare so you will have to go buy one if you dont already have a spare, I hope this helps. PS. a known thing to short out your lights like that (wothout you touching anything) is your rear windsheild wiper switch, they go bad and short it out, so just unplug it.
JRPCHAMELEON is offline
