need to identify line

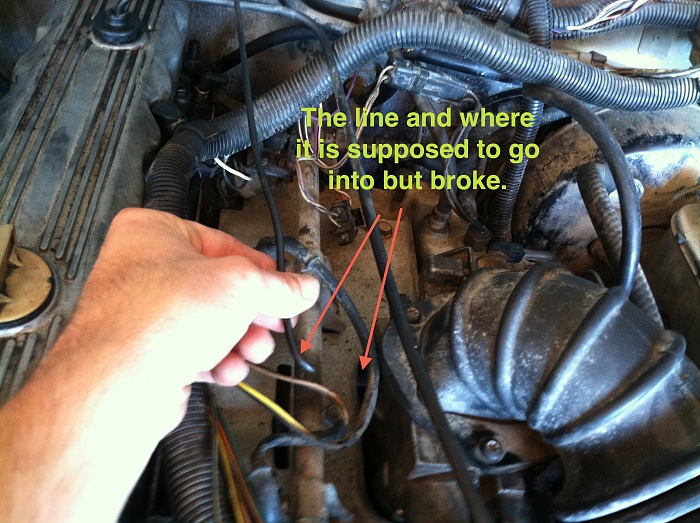

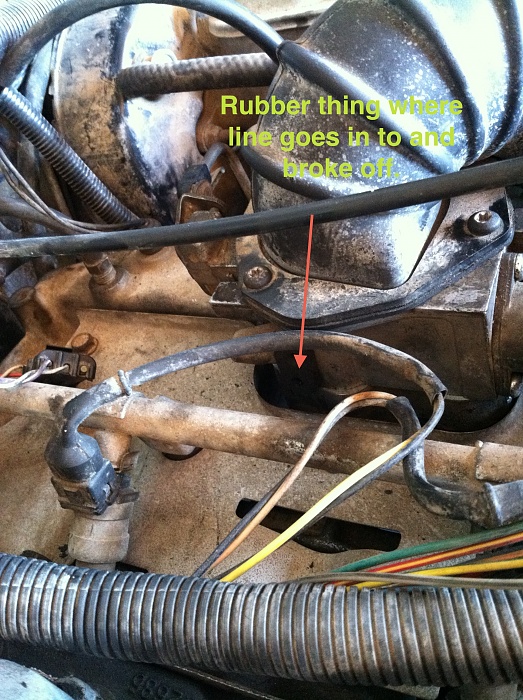

While working on my engine I broke this line. It looks like a vacuum line but not sure. It is an 88 4.0 engine. The line goes from above the engine attached to some squarish thing attached to the body to a rubber thing on the side of the throttle body (Sorry for being so technical). The line broke off inside of the rubber part on the throttle body. I was wondering how the line attaches to that rubber thing? When I replace it is it just push into the rubber thing? do I need to take that rubber thing out to get the broken piece? What is the line for? Is it stocked anywhere? It seems like a small enough simple enough repair, but for some reason they seem to give me the most trouble. Thanks for any help.
#2
Junior Member
Join Date: Feb 2014
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 L
While working on my engine I broke this line. It looks like a vacuum line but not sure. It is an 88 4.0 engine. The line goes from above the engine attached to some squarish thing attached to the body to a rubber thing on the side of the throttle body (Sorry for being so technical). The line broke off inside of the rubber part on the throttle body. I was wondering how the line attaches to that rubber thing? When I replace it is it just push into the rubber thing? do I need to take that rubber thing out to get the broken piece? What is the line for? Is it stocked anywhere? It seems like a small enough simple enough repair, but for some reason they seem to give me the most trouble. Thanks for any help.
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Edit; I almost forgot. I hear any manifold vacuum to the MAP is OK. (Like, "T" off that big line rear of the TB). Of course you need to plug the hole in the rubber plug. I kept mine as designed.
Yea, like Trav says, it's the MAP tube and very important. I actually used a tiny left hand thread screw extractor to get my broken piece out. Really though, any tiny screw you could get to get a grab in it might work. The rubber plug comes out OK. (the first time I tried I thought maybe it didn't). I'm not near a store. What I did was to keep the sections if rigid tube that were still OK, and carefully heat and bend a couple pieces, (very careful there, the tube will melt), then found some small vacuum line that would fit over that and spliced my tube back together. Was not a super fit so I put RTV silicone on the rigid only . Reason being it's crucial nothing blocks that little tube.
Possibly ACE or somebody sells small rigid tubing that can stand under-hood temps, Idk.
Yea, like Trav says, it's the MAP tube and very important. I actually used a tiny left hand thread screw extractor to get my broken piece out. Really though, any tiny screw you could get to get a grab in it might work. The rubber plug comes out OK. (the first time I tried I thought maybe it didn't). I'm not near a store. What I did was to keep the sections if rigid tube that were still OK, and carefully heat and bend a couple pieces, (very careful there, the tube will melt), then found some small vacuum line that would fit over that and spliced my tube back together. Was not a super fit so I put RTV silicone on the rigid only . Reason being it's crucial nothing blocks that little tube.
Possibly ACE or somebody sells small rigid tubing that can stand under-hood temps, Idk.
Last edited by DFlintstone; 05-12-2014 at 04:20 PM.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

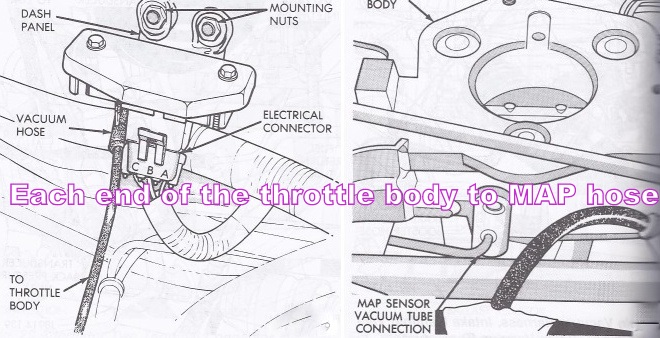

This may help put things into perspective.
That line is no longer available.
That line is no longer available.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
This is what I did:
Removed the Renix TB. Found I could tap the vacuum port for the MAP sensor line 1/8 NPT and thread a plug right in. No drilling required. I put a vacuum fitting into the intake manifold where the IAT was before I relocated it to the air box. Using spare plastic line from previous vacuum harness replacements and a hair dryer, I formed a new pipe from the intake fitting to the MAP.
Removed the Renix TB. Found I could tap the vacuum port for the MAP sensor line 1/8 NPT and thread a plug right in. No drilling required. I put a vacuum fitting into the intake manifold where the IAT was before I relocated it to the air box. Using spare plastic line from previous vacuum harness replacements and a hair dryer, I formed a new pipe from the intake fitting to the MAP.
