Need help ID'ing my differential and trans


Old 02-26-2013, 09:20 PM
  #1
Member
Thread Starter

mitch500's Avatar

Join Date: Jan 2013
Location: Edmonton,Canada
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0 H.O
Default Need help ID'ing my differential and trans
Hey Guys,

Just need help Figuring out what diff I have? I'm having trouble because the diff covers on the Dana 35 and 8.25 look kinda similar...

Anyone know.

It's a 1991 XJ 4.0 with a 231t-case if that matters.

Also what trans would I have a AW4 4-speed?
Last edited by mitch500; 02-26-2013 at 09:23 PM.
mitch500 is offline
Reply Like
Old 02-26-2013, 09:22 PM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,857
Received 1,522 Likes on 1,234 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Auto trans is an AW4.
Attached Images
cruiser54 is offline
Reply Like
Old 02-26-2013, 09:24 PM
  #3
Member
Thread Starter

mitch500's Avatar

Join Date: Jan 2013
Location: Edmonton,Canada
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0 H.O
Default
Originally Posted by cruiser54
Auto trans is an AW4.

thats the picture i was referencing too. Its hard to tell between the Dana 35 and 8.25? Im not to familiar with jeeps, thats why i posted a picture to help me identify it..

do you know which one it would be?
mitch500 is offline
Reply Like
Old 02-26-2013, 09:34 PM
  #4
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes on 17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default
The 8.25 is flat on the bottom.
DFlintstone is offline
Reply Like
Old 02-26-2013, 10:26 PM
  #5
CF Veteran

xjmarc's Avatar

Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Default
You have a D35 and if it's an auto it's an AW4.
xjmarc is offline
Reply Like
Old 02-27-2013, 05:24 AM
  #6
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,857
Received 1,522 Likes on 1,234 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by mitch500
thats the picture i was referencing too. Its hard to tell between the Dana 35 and 8.25? Im not to familiar with jeeps, thats why i posted a picture to help me identify it..

do you know which one it would be?
I can see the difference. The 35 has a little bump in the lower left corner and looks MORE oval than an 8.25. The 8.25 has a lip all around the cover and the 35 doesn't............
cruiser54 is offline
Reply Like
Old 02-27-2013, 06:13 AM
  #7
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes on 11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
Part of it is that reference pic only shows the diff cover. When you see the entire housing the differences are more obvious

salad is offline
Reply Like

Trending Topics

Old 02-27-2013, 08:12 AM
  #8
Member
Thread Starter

mitch500's Avatar

Join Date: Jan 2013
Location: Edmonton,Canada
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Engine: 4.0 H.O
Default
Originally Posted by salad
Part of it is that reference pic only shows the diff cover. When you see the entire housing the differences are more obvious

Thanks for the help. I'm new to Cherokees but not wrenching, just wanted to be sure.
mitch500 is offline
Reply Like
Old 02-27-2013, 08:20 AM
  #9
CF Veteran

Roler's Avatar

Join Date: Jan 2012
Location: Australia
Posts: 3,081
Received 295 Likes on 245 Posts
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Default
Originally Posted by mitch500
Thanks for the help. I'm new to Cherokees but not wrenching, just wanted to be sure.
Yep, left being the 8.25 in the pic above.
Roler is offline
Reply Like
Old 02-27-2013, 09:07 AM
  #10
CF Veteran

1998xjspt's Avatar

Join Date: Oct 2012
Location: Orlando/Winter Garden
Posts: 1,277
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: I6
Default
Originally Posted by xjmarc
You have a D35 and if it's an auto it's an AW4.
He has a c8.25
1998xjspt is offline
Reply Like
Old 02-27-2013, 09:55 AM
  #11
CF Veteran

prerunner1982's Avatar

Join Date: May 2008
Location: Edmond, OK
Posts: 2,495
Received 2 Likes on 2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 ltr
Default
Originally Posted by 1998xjspt
He has a c8.25
Actually it's a Dana 35....

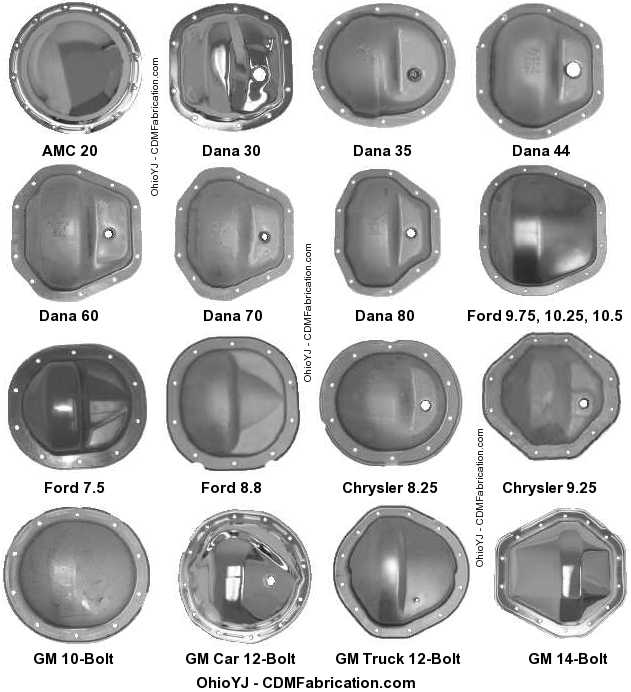

Here is a picture of a Chrysler 8.25. Notice the flat lip at the bottom, his does not have this.



Also the Chry 8.25 has a 3" diameter tube while the Dana 35 has an approx 2.5" diameter tube.
prerunner1982 is offline
Reply Like
Old 03-05-2013, 09:12 AM
  #12
CF Veteran

1998xjspt's Avatar

Join Date: Oct 2012
Location: Orlando/Winter Garden
Posts: 1,277
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: I6
Default
Originally Posted by prerunner1982

Actually it's a Dana 35....

Here is a picture of a Chrysler 8.25. Notice the flat lip at the bottom, his does not have this.

Also the Chry 8.25 has a 3" diameter tube while the Dana 35 has an approx 2.5" diameter tube.
I stand corrected
1998xjspt is offline
Reply Like
Old 03-05-2013, 09:23 AM
  #13
Junior Member

swamplife xj's Avatar

Join Date: Oct 2012
Location: Tallahassee, Florida
Posts: 108
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Why not just read the cover..... They are stamped DANA if it is a 35... And process of elimination tells the answer..... Unless some dana axles don't have that stamping?
swamplife xj is offline
Reply Like
Old 09-03-2013, 01:48 PM
  #14
Senior Member

67 GMC's Avatar

Join Date: May 2012
Location: Fort Erie, CANADA
Posts: 925
Received 5 Likes on 4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Default
Resurrecting this useful thread.

I wish they were all stamped!

Can you help with mine?
1987 XJ AW4, 4.0L

Front pics I think is DANA 30. The rear is maybe DANA 44?

I'm ordering the gaskets so if anyone can chime in, that would be great.

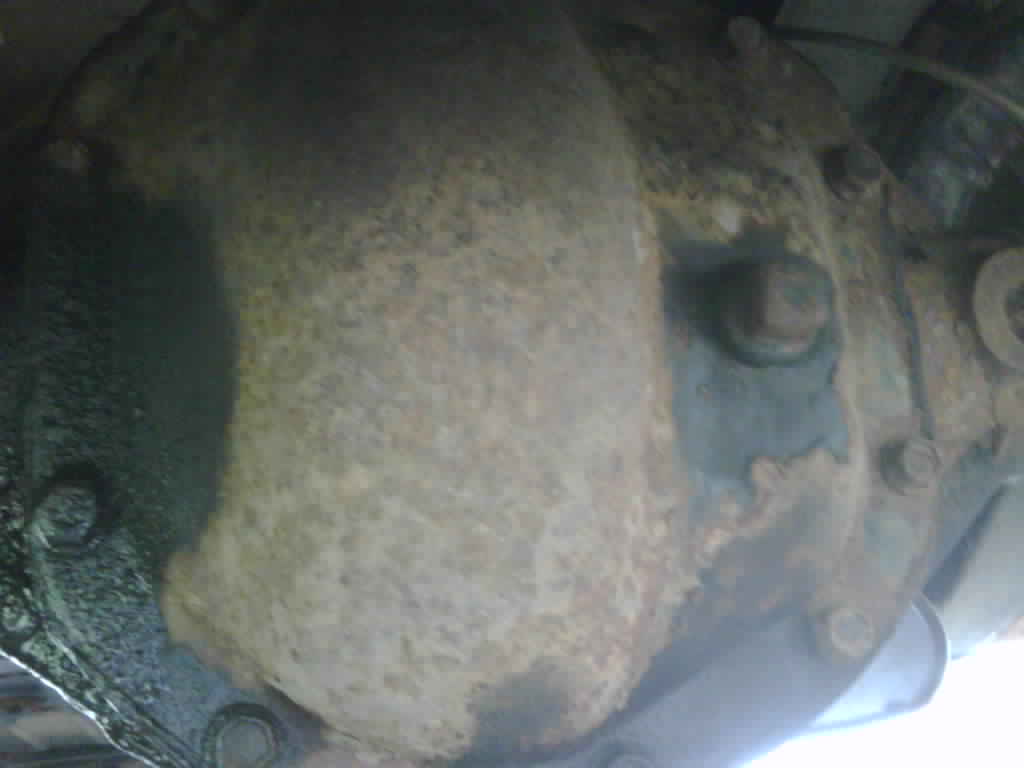

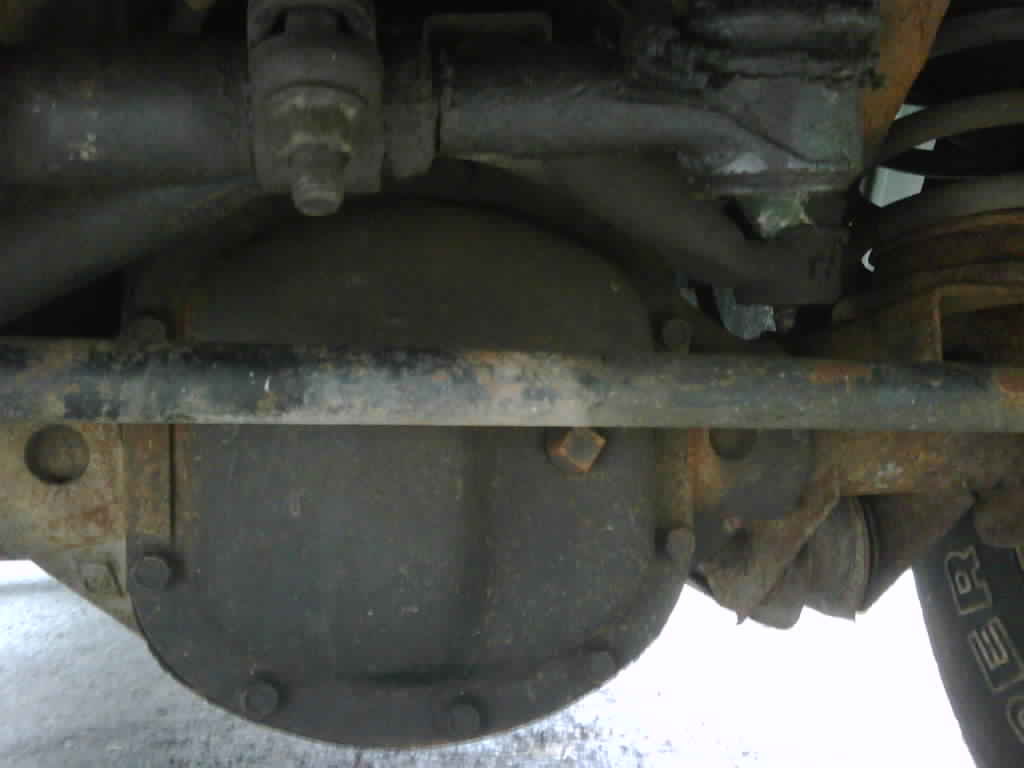

Attached Thumbnails Need help ID'ing my differential and trans-img00390-20130903-1426.jpg   Need help ID'ing my differential and trans-img00393-20130903-1427.jpg   Need help ID'ing my differential and trans-img00394-20130903-1428.jpg
