zmuehl22

Hey guys,

So my brother was about to sell a 2001 Jeep Cherokee Sport. Some kid took it for a test drive with him in the car and while idling, put the jeep into 4H. All of a sudden the jeep kind of starts shaking and it won't go back into 2wd. Tried to move the lever back to 4H and there is like no resistance or anything when changing from 4h to 4L and regular 2wd. When turning especially the jeep kind of jerks like it's trying to move, but just can't really. Anyone know what it could be? I'm guessing transfer case, but I'm far from a mechanic. Any help would be appreciated. Thanks

Programbo

When you say "no resistance" you mean moving the lever it just freely moves back and forth as if it's attached to nothing? Also when you say "shaking" do you mean when it tries to move? Is the engine still idling the same otherwise?

I would try and see if anything is frozen up or disconnected. Go under the Jeep and see if the transfer case shift linkage is still connected. Try shifting it manually from below. See if the from shaft is locked up or something.

zmuehl22

Yes the lever moves freely back and forth. The engine is running fine. It's only when the jeep tries to move that it gets shaky, similar to the feeling you can get if turning to much in 4H and you have good traction (which I know you shouldn't do btw haha). Hopefully we can see if it's that linkage. Sounds promising.

cruiser54

LOOK at the linkage. Maybe adjust it?

zmuehl22

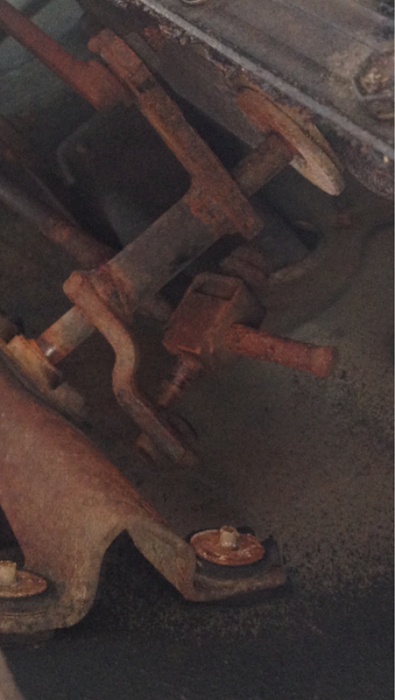

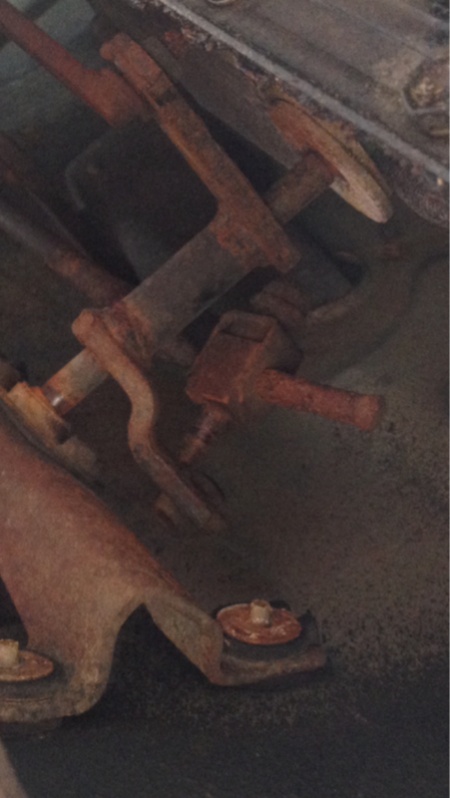

Alright the linkage was detached and when we can reattach it but it's not staying in place unless we use a zip tie or duct tape (i assume it just needs to be replaced) so there is tension in that now. However, i think it is still stuck in 4H even though the lever is at 2wd. So does that mean I need to manually adjust the linkage from underneath to match up with the lever inside the car? If so how do I do that exactly?

zmuehl22

Rockfrog

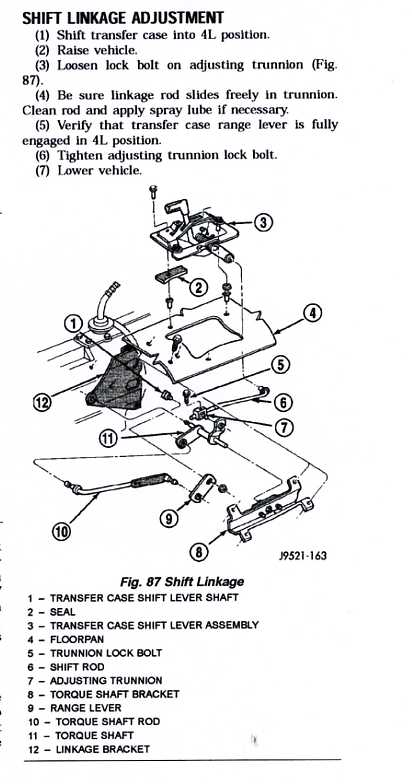

Straighten the linkage rod, loosen the bolt in last picture on the rod (13mm) put shift lever in 4lo, manually shift case into 4lo at the shift cam (lever on side of case at end of linkage) ... retighten. Test for function.

CCKen

Refer to the Owner's Manual about how to shift the transfer case. You will see that the TC is to be shifted with the vehicle moving.

Firestorm500

Boy, that kid bent the crap out of that, didn't he?

Jeep: Go anywhere, anytime?

Hmmmmm.

zmuehl22

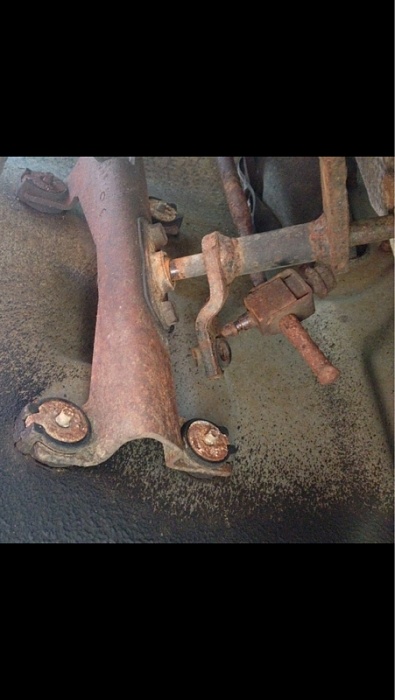

Ok so the jeep is home. Got the jeep into 2H manually. So thanks everyone for the help! Now the question is what all do I need to replace based on the pictures I put up? Shift rod maybe?? I have some other pictures I could possibly put up as well if you guys don't have enough of a visual

98XJ40K

Forget all of that complicated crap for the t case linkage.
Pick up one of these:
http://www.boostwerksengineering.com...ans-_p_25.html

CCKen

A shift rod would be nice.

You'll have to check the WWW to find it.

zmuehl22

Hey guys thanks for all the help on this thing!! Really appreciate it and new parts are on their way, so it'll be back on the road soon. You guys are the best!!

Kalali

Nice piece. Looks well made.

98XJ40K

It's pretty well conceived, and the parts are excellent quality. I need to put mine on, but I don't want to dig into it before my trip this weekend...
