name the part i'm missing?
05-11-2014, 05:16 PM
#1
Seasoned Member
Thread Starter
name the part i'm missing?

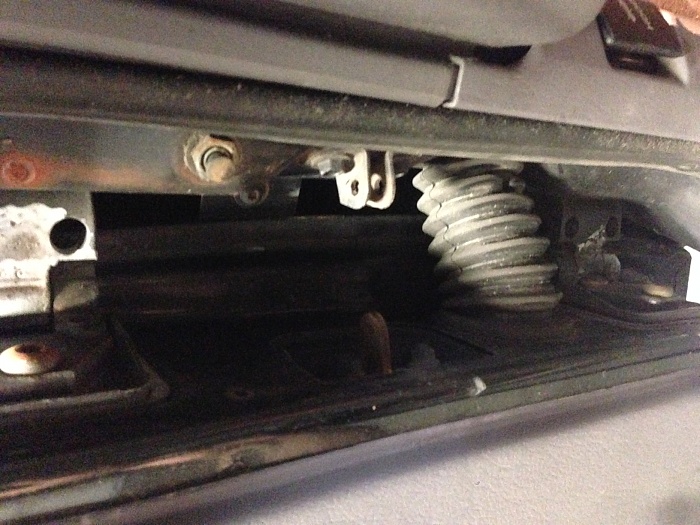

what is the piece that i'm missing for my drivers side door. there should be a metal bar that helps keep the door propped open or from just swaying freely but as you can see its missing...
05-11-2014, 05:28 PM
#3
Senior Member

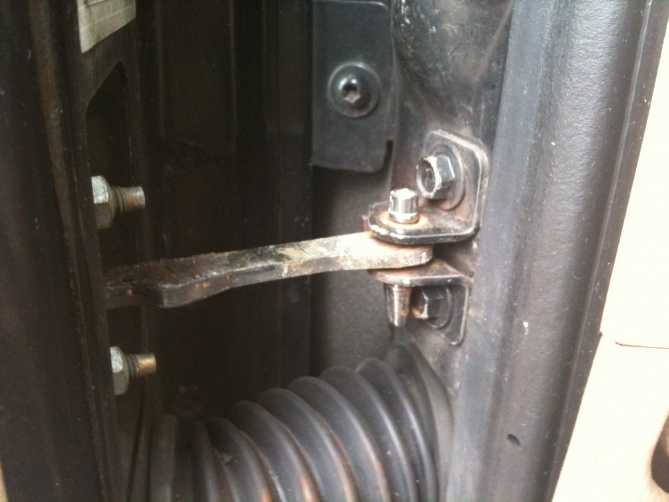

I don't think it's missing. Get some pliers and pull it out from the door. That's call a door check. You're missing the pin that holds the door check to the Jeep door jamb. It was probably "clicking" loudly so the PO pulled the pin.
Trending Topics
05-11-2014, 06:52 PM
#8
CF Veteran
Join Date: Jan 2009
Location: Baltimore, Maryland
Posts: 1,964
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1994 1993
Model: Cherokee
Engine: 4.0
Yeah everybody else covered it pretty good. As mentioned you are only missing the pin that holds the arm together. I removed mine since it was binding badly everytime you opened and closed the door
05-11-2014, 09:24 PM
#9
Senior Member
A new door check is over $50 at Rock Auto even! Don't know why these things are so expensive. I wish they were more universal. Seems to be a Jeep-only edition.
05-11-2014, 10:59 PM
#11
Member
Join Date: Mar 2010
Location: SO CAL
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
I pulled mine out a long time ago and forgot about how bad the click click noise was. But I was checking fuses one day and the wind kicked up and slammed my head with the door! so ya, i put the pin back and deal with the noise lol
Last edited by red4dr; 05-11-2014 at 11:57 PM.
05-11-2014, 11:44 PM
#12
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
It's funny--you don't really think about how much you rely on the door checks, until you get a Cherokee and experience the common issue of it going bad! Is it just the pin, or is it the whole check that causes the pops? My drivers door pops, but my rear doors are perfect almost like they were replaced. Makes sense because those doors don't see as much action.
Sorry for the hijack
Sorry for the hijack
05-11-2014, 11:58 PM
#13
CF Veteran
Join Date: Mar 2010
Location: Georgia
Posts: 1,438
Likes: 0
Received 7 Likes
on
7 Posts
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
It's funny--you don't really think about how much you rely on the door checks, until you get a Cherokee and experience the common issue of it going bad! Is it just the pin, or is it the whole check that causes the pops? My drivers door pops, but my rear doors are perfect almost like they were replaced. Makes sense because those doors don't see as much action. Sorry for the hijack
Last edited by MonacaYankee; 05-12-2014 at 12:10 AM.
05-12-2014, 12:00 AM
#14
Member
Join Date: Mar 2010
Location: SO CAL
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
i think its the preset detents that cause the pops. like where the door would stay open at if you only opened it that far. mine does it at the same spot opening and closing. like you said though, you dont really notice until you dont have them lol. i cant remember how many times I got pissed at the door for closing on me when I was parked on a slope when I had the pin pulled out.
