I have a 1999 jeep cherokee sport with a 4.0 5 speed and a found a 1996 jeep Cherokee with a 4.0. Ho. And a 5 speed. Will the body parts and or the mechanical parts fit?

cruiser54

Mechanical pretty much. Bodies are a bit different.

what are your intentions?

Birdseye79

Well just wanted it for parts but the body on my jeep is pretty good so i guess extra mechanical would be good. Do you know how i can tell what axles i have on my jeep now. I tried looking up the vin but didnt tell me?

freegdr

All XJs were built as a "Unibody" design with the body and frame rails tied together as one piece as opposed to a body on frame design. All XJs have solid axles front and rear. The suspension consists of coils for the front and leaf springs for the rear. All XJs came with disc brakes in the front and drums in the rear.

Dimensions

(small differences may occur depending on optional equipment or trim level)

wheelbase = 101.4"
overall length = 165.3" - 168.8"
overall width = 67.9" - 70.5"
track = 58"
height = 64"
height with roof rack = 66.8"
ground clearance (from differentials) = 7.3" - 8.3"
approach angle = 37.6* - 38*
departure angle = 31* - 32.1*
breakover angle = 21* - 21.9*
curb weight 2wd = 2,891 lbs - 2,993 lbs
curb weight 4wd = 3,057 lbs - 3,386 lbs
cargo capacity = 71.0 cu ft.

Body

The body comes in both 2-door and 4-door styles with a rear hatch (liftgate).

In 94 side-impact beams were added in the doors and roof was strengthened. The 3rd brakelight was added to the top of the liftgate.

In 96 the body structure was strengthened some although it was not noticeable in appearance.

In 97 the body (and interior) was redesigned to freshen it up a bit. Most noticeably it gave the body smoother lines by changing the bumpers, flares, and moldings. The front fender was trimmed just below the headlights and replaced with plastic bumper endcaps that wrap around to the wheel well. The liftgate was also changed from fiberglass to sheet metal in this year. The windshield washer bottle was also moved to the inside of the drivers side front fender.

Engines

2.5L I4 carburated - 105 hp @ 5000 rpm, 132 ft lb torque @ 2800 rpm - used in 84-85 models
2.5L I4 TBI (fuel injected) - 117 hp @ 5000 rpm, 135 ftlb @ 3500 rpm - used in 86 and updated in 87-90 to 121hp
2.5L I4 MPI (multi-port injection) - 130 hp @ 5250 rpm, 139 ft lb @ 3250 rpm - used in 91-00

GM 2.8L V6 - 115 hp @ 4800 rpm, 145 ft lb @ 2400 rpm - used in 84-86

Renault 2.1L 4cyl. Turbo Diesel - 85 hp @ 3750 rpm, 132 ft lb @ 2750 rpm - used in 85-87

Italian VM 2.5L Turbo Diesel - 140 hp, 236 ft lb torque - used in overseas XJs

4.0L I6 "Power Tech" - 177 hp @ 4750 rpm, 220 ft lb @ 4000 rpm - used 87-90
4.0L I6 MPI "Power Tech HO" (High Output) - 190 hp @ 4750 rpm, 220 ft lb @ 4,000 rpm - used in 91-95 and updated in 96-01 to 225 ft lb torque @ 3000 rpm (00-01 models use a distributorless ignition system)

Transmissions

Manual Transmissions
T4 or a T5 may have been used instead of an AX4 or an AX5 due to supply shortages.
AX4 - 4 speed manual - manufactured by Aisin - used 84-86 with 2.5L I4 and 2.8L V6 engines
AX5 - 5 speed manual - manufactured by Aisin - used with 2.8L V6 and 87+ with 2.5L I4
BA10/5 - 5 speed manual - manufactured by Peugot - used only up to 89
AX15 - 5 speed manual - manufactured by Aisin - used with 4.0L I6 engines
NV3550 - 5 speed manual - manufactured by New Venture - used in 00-01 in SE models with 4.0L I6 engines

Automatic Transmissions
Torqueflight 904 - 3 speed automatic - used 84-86 with 2.8L V6 engine and ?
30RH - 3 speed automatic - used with 2.5L I4 engine 94?-00
AW4 - 4 speed automatic, electronically controlled - manufactured by Aisin - used from 87-01 (87-91 models include a Power/Comfort button that adjusts the shift points)

Transfer Cases

The transfer cases used are all chain driven with aluminum housings. NP stands for "New Process" which is the brand, if you will. The newer ones are NV instead which stands for "New Venture". It is the same transfer case just a different name.

NP207 - "Command-Trac" part-time only - 2.61:1 ratio low range - used 84-87
NP231 - "Command-Trac" part-time only - 2.72:1 ratio low range - shift pattern 2H - 4H - N - 4L - used 87-01

NP228/NP229 - "Selec-Trac" - 2Hi - 4Hi(full-time) - N - 4Lo (part-time) - used 84-87
NP242 - "Selec-Trac" part-time OR full-time - 2.72:1 ratio low range - shift pattern 2wd - 4part-time - 4full-time - N - 4LO - used 87-01

Driveshafts

Front Driveshaft - From 84 thru 86 the front driveshaft was a true CV style ("beer can on a popsicle stick"), 87 + The front is a "double cardan" two-piece driveshaft with a CV joint at the transfer case end.

Rear Driveshaft - The 228 and 229 transfer cases used a fixed output yoke, with a 2-piece driveshaft incorporating the slip spline. Otherwise, The rear is a one-piece shaft with standard u-joints at both ends. The slip yoke is located on the output shaft of the transfer case. On 84-95 models, the yoke slides in and out of the transfer case and is lubricated by the ATF fluid internally. On 96-01 due to a design change, the slip yoke is external (does not slide in and out of the transfer case). This slip yoke is covered with a rubber boot.

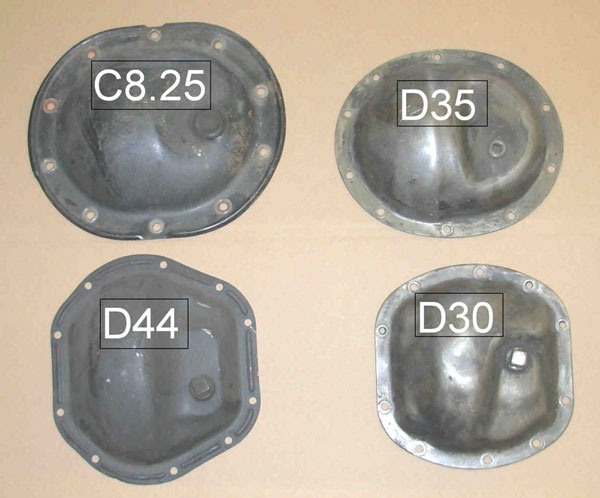

Axles

Front Axles
Dana 30 high pinion - reverse cut - 27 spline, 1.16" diameter shafts, 7.13" ring gear - used 84-99 (some axles through 91 are vacuum disconnect, 92+ are non-disconnect, 89-95 with ABS have 5-297x u-joints, all 95+ have 5-297x u-joints, all others have 5-260x u-joints except 84 thru 86 they were CV type rather than open u-joints)

Dana 30 low pinion - standard cut - 27 spline, 1.16" diameter shafts, 7.13" ring gear, 5-297x u-joints - used 00-01

Rear Axles
(Note on Dana 35 axles sometimes referred to as Dana 35C - The "C" does not stand for c-clip. It stands for "custom" meaning it came from Dana unfinished.)
(Note on 8.25 axles - none of these axles were used on XJs with ABS brakes. If you have ABS, you have the Dana 35. Without ABS you could have either axle. 8.25 axles are c-clip)

Dana 35 non c-clip - 27 spline, 1.18" diameter shafts, 7.58" ring gear, 2.62" axle tube - used 84-89
Dana 35 c-clip - 27 spline, 1.18" diameter shafts, 7.58" ring gear, 2.62" axle tube - used 90-01
Chrysler 8.25 - 27 spline, 1.17" diameter shafts, 8.25" ring gear, 3" axle tube - used 91-96
Chrysler 8.25 - 29 spline, 1.21" diameter shafts, 8.25" ring gear, 3" axle tube - used 97-01
Dana 44 non c-clip - 30 spline, 1.31" diameter shafts, 8.5" ring gear, 2.75" axle tube - used 87-89 on XJs equipped with towing package.

Gearing

3.07 - used with 4.0L engine / manual transmission
3.31 - only available on older (pre87?) 2 door XJs with "Fuel Economy" package
3.55 - used with 4.0L engine with automatic transmission; also used with 2WD 4-cyl engines (possibly 4WD as well) equipped with the 4-speed manual transmission
3.73 - found in some XJs with the towing package
4.10 - used with 2.5L engine usually, and older XJs with the "Off-Highway Vehicle" package.

Cooling Systems

Open style - any normal cooling system used today. Opposite of closed style described below.

Closed style - has no radiator cap and utilizes a pressure bottle. This style cooling system was used in 87-90 XJs.

Airbags

Drivers side airbag (mechanical) was added in 95.
Passenger side airbag was added in 97. Airbags changed from mechanical to electronic in this year also.


Production Numbers

# of XJs built in given year:

84 - 93,326
85 - 120,328
86 - 107,225
87 - 139,295
88 - 187,136
89 - 207,216
90 - 151,230
91 - 151,578
92 - 137,826
93 - 144,961
94 - 123,391
95 - 120,234
96 - 286,463
97 - 258,958
98 - 182,845
99 - 186,116
00 - 165,590
01 - 120,454

Total = 2,884,172

Trim Levels

84 - Base, Wagoneer, Pioneer, Chief
85 - Base, Wagoneer, Pioneer, Chief, Laredo
86 - Base, Wagoneer, Pioneer, Chief, Laredo
87 - Base, Wagoneer, Pioneer, Chief, Laredo, Limited
88 - Base, Wagoneer, Pioneer, Chief, Laredo, Limited, Sport
89 - Base, Wagoneer, Pioneer, Chief, Laredo, Limited, Sport
90 - Base, Wagoneer, Pioneer, Chief, Laredo, Limited, Sport
91 - Base, Briarwood, Chief, Laredo, Limited, Sport
92 - Base, Briarwood, Chief, Laredo, Limited, Sport
93 - Base, Sport, Country
94 - SE, Sport, Country
95 - SE, Sport, Country
96 - SE, Sport, Classic, Country
97 - SE, Sport, Classic, Country
98 - SE, Sport, Classic, Limited
99 - SE, Sport, Classic, Limited
00 - SE, Sport, Classic, Limited, Freedom
01 - Sport, Limited, 60th Ann

ehall

1996 is a transition year, with some of the late-gen parts on the old-gen body. Body panels are different (incompatible), engine management parts are different, but the powertrain and drivetrain are the same or very close and can be interchanged with minimal work. Gas tanks are different, sensors and injectors are different, power steering setup is the same, transfer case style is the same, etc

cruiser54

Uniframe!!!!

cruiser54

Here:

DFlintstone

You guys missed it. Gary actually did full sentences with proper punctuation! Yes, his has the two piece RF axle, but hey, credit where credit is due. Well written!

Fred/N0AZZ

Hell I cut and saved this whole thread to my Jeep folder.


Thanks All
