Misfire, three codes
#1
Junior Member
Thread Starter
Join Date: Sep 2012
Location: Massachusetts
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Misfire, three codes
'99 XJ 4.0. So yesterday, my MIL came on while going to the store and I could hear a misfire. Pulled codes are P0300, P0303, P0304. It was running fine the day before. I reset the codes and the MIL came back on in two restarts with the same numbers.
Now, since this threw codes for cylinders 3 and 4 at the same time without prior problems, I'm kind've leaning away from causes like faulty injectors (though I'm not ruling them out). I'll be running a compression test on Sunday or Monday (because it's currently 16 degrees outside) to test for a blown head gasket between the cylinders since that's my worst fear.
Any ideas on other things that could cause this? Searching keeps leading me to people with coil pack problems, which I don't have. Plugs, wires, cap, rotor, and distributor were changed out about eight months ago.
Now, since this threw codes for cylinders 3 and 4 at the same time without prior problems, I'm kind've leaning away from causes like faulty injectors (though I'm not ruling them out). I'll be running a compression test on Sunday or Monday (because it's currently 16 degrees outside) to test for a blown head gasket between the cylinders since that's my worst fear.
Any ideas on other things that could cause this? Searching keeps leading me to people with coil pack problems, which I don't have. Plugs, wires, cap, rotor, and distributor were changed out about eight months ago.
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
'99 XJ 4.0. So yesterday, my MIL came on while going to the store and I could hear a misfire. Pulled codes are P0300, P0303, P0304. It was running fine the day before. I reset the codes and the MIL came back on in two restarts with the same numbers.
Now, since this threw codes for cylinders 3 and 4 at the same time without prior problems, I'm kind've leaning away from causes like faulty injectors (though I'm not ruling them out). I'll be running a compression test on Sunday or Monday (because it's currently 16 degrees outside) to test for a blown head gasket between the cylinders since that's my worst fear.
Any ideas on other things that could cause this? Searching keeps leading me to people with coil pack problems, which I don't have. Plugs, wires, cap, rotor, and distributor were changed out about eight months ago.
Now, since this threw codes for cylinders 3 and 4 at the same time without prior problems, I'm kind've leaning away from causes like faulty injectors (though I'm not ruling them out). I'll be running a compression test on Sunday or Monday (because it's currently 16 degrees outside) to test for a blown head gasket between the cylinders since that's my worst fear.
Any ideas on other things that could cause this? Searching keeps leading me to people with coil pack problems, which I don't have. Plugs, wires, cap, rotor, and distributor were changed out about eight months ago.
Edit: Head gasket isn't too painful. Ever had a root canal? About the same.... :-)
#3
CF Veteran
Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,805
Received 99 Likes
on
88 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
First thing I do for this group of codes is to perform a "fuel pressure test". Must be done with a fuel pressure gauge; no shortcuts. Many parts stores will rent you this tool very inexpensively.
The P0300 is a code that I've seen related to fuel pressure before. For your 99, you should have 49 psi, plus or minus 5 psi.
There are a number of possibilities and yes, a blown head gasket is one of them. But because fuel pressure testing is very easy, I do that first. And after that, I'd perform the compression test. Spec for the 4.0 is 120-150 psi, with no more than a 30 psi variation between cylinders.
Good luck and keep us updated!
The P0300 is a code that I've seen related to fuel pressure before. For your 99, you should have 49 psi, plus or minus 5 psi.
There are a number of possibilities and yes, a blown head gasket is one of them. But because fuel pressure testing is very easy, I do that first. And after that, I'd perform the compression test. Spec for the 4.0 is 120-150 psi, with no more than a 30 psi variation between cylinders.
Good luck and keep us updated!
Last edited by tjwalker; 01-17-2015 at 05:59 PM.
#6
Seasoned Member
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
I meant I am following to see if there is a step or system I didn't think to check.
#7
Junior Member
Thread Starter
Join Date: Sep 2012
Location: Massachusetts
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Decided to go with the compression test first because I don't have a fuel pressure tester. Things weren't looking good after pulling the plugs.

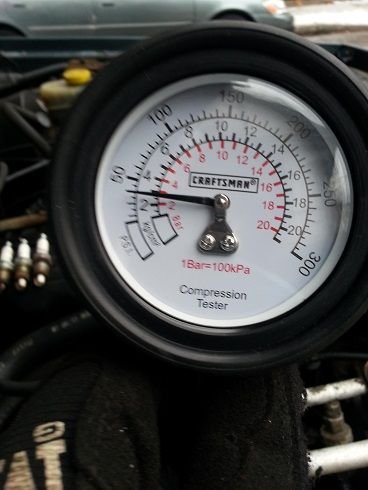

Cylinder 2, for a baseline. A little under spec.
Cylinder 3: Damn it.
And cylinder 4: welp.
Well, at least it's nice weather outside.
Cylinder 2, for a baseline. A little under spec.
Cylinder 3: Damn it.
And cylinder 4: welp.
Well, at least it's nice weather outside.
Trending Topics
#8
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
While certainly not good news a little diagnosis beats just simply replacing every sensor you can get your hands on. Is the vehicle loosing any coolant? If so you can borrow a pressure tester from many auto parts places. Might not be a bad idea to pull the valve cover and watch the valve train it may be a wiped cam.
#9
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
If you have the ability to apply compressed air (around 80 psi) to each of those cylinders while they're at TDC compression, you could check to see if the compressed air is leaking into the crankcase (listen at oil filler cap). If so, the rings are probably shot or upper part of the piston is blown out.
Pulling the head to change the gasket may not reveal that the rings are shot. But the cylinder wall may be all scraped up. Need to check.
Pulling the head to change the gasket may not reveal that the rings are shot. But the cylinder wall may be all scraped up. Need to check.
Decided to go with the compression test first because I don't have a fuel pressure tester. Things weren't looking good after pulling the plugs.
Cylinder 2, for a baseline. A little under spec.
Cylinder 3: Damn it.
And cylinder 4: welp.
Well, at least it's nice weather outside.
Cylinder 2, for a baseline. A little under spec.
Cylinder 3: Damn it.
And cylinder 4: welp.
Well, at least it's nice weather outside.
#10
Junior Member
Thread Starter
Join Date: Sep 2012
Location: Massachusetts
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
While certainly not good news a little diagnosis beats just simply replacing every sensor you can get your hands on. Is the vehicle loosing any coolant? If so you can borrow a pressure tester from many auto parts places. Might not be a bad idea to pull the valve cover and watch the valve train it may be a wiped cam.
#11
Junior Member
Thread Starter
Join Date: Sep 2012
Location: Massachusetts
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
If you have the ability to apply compressed air (around 80 psi) to each of those cylinders while they're at TDC compression, you could check to see if the compressed air is leaking into the crankcase (listen at oil filler cap). If so, the rings are probably shot or upper part of the piston is blown out.
Pulling the head to change the gasket may not reveal that the rings are shot. But the cylinder wall may be all scraped up. Need to check.
Pulling the head to change the gasket may not reveal that the rings are shot. But the cylinder wall may be all scraped up. Need to check.
Seems like the head's coming off no matter what the case is.
#12
CF Veteran
Join Date: Dec 2011
Location: Roanoke, VA
Posts: 1,050
Likes: 0
Received 2 Likes
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Unfortunately I don't, I live in the city and just did the compression test while parked on the street - no easy way to do a leak down test. The fact that there were no misfires before, and suddenly two neighbor cylinders became problematic strongly points to the gasket, though. Or a cracked head, but that's unlikely because I've never come close to overheating.
Seems like the head's coming off no matter what the case is.
#13
Junior Member
Thread Starter
Join Date: Sep 2012
Location: Massachusetts
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Hey, I can finally update this! I've been buried under snow forever so I haven't been able to do the job until now.
Blown between 3 and 4.
Blown between 3 and 4.
