Mechanic says oil leak is bad

Thread Tools

Search this Thread

Old Feb 24, 2012 | 01:35 PM
  #76
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by cdhebert
I don't understand why you guys are changing the o-rings in the oil filter adapter. Pull the adapter, take the oil pressure sensor and the threaded oil filter stem off of it, and then THROW IT AWAY! Remove the alignment pin from the block, screw the oil filter stem into the block, and screw the oil filter directly to the engine. There is plenty of room, and the adapter o-rings will NEVER leak again. There are a couple of ports on the passenger side of the engine that you can attach the oil pressure sensor to. I pulled the plug from the rear-most one and put a brass 90 in it facing forward and attached the sensor there. Good luck. Oil changes might be a little messier, but it eliminates a couple failure points, and paper towels are really cheap.
There's not enough clearance to do that on the earlier Jeeps. If the engine moves just a bit, the filter gets creamed by the mount.
Reply
Old Feb 24, 2012 | 04:19 PM
  #77
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Originally Posted by stockli

I have to change my adapter too it is leaking but getting that t60 out seems to require a low profile torx, I cant get a ratchet in there. How were you able to get to it with your torx?

X2 please let me know cuz I can't get my socket in there either. How they heck did anybody else do it???
Reply
Old Feb 24, 2012 | 04:21 PM
  #78
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

I've got to do this for 2 friends with 99 XJs. I was thinking of just getting the bit without a socket on it and fabbing something up from that, like welding a wrench to it.
Reply
Old Feb 25, 2012 | 05:36 PM
  #79
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Got it, NO MORE OIL LEAKS!!! haha its nice
Reply
Old Feb 25, 2012 | 05:50 PM
  #80
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Originally Posted by stockli

I have to change my adapter too it is leaking but getting that t60 out seems to require a low profile torx, I cant get a ratchet in there. How were you able to get to it with your torx?

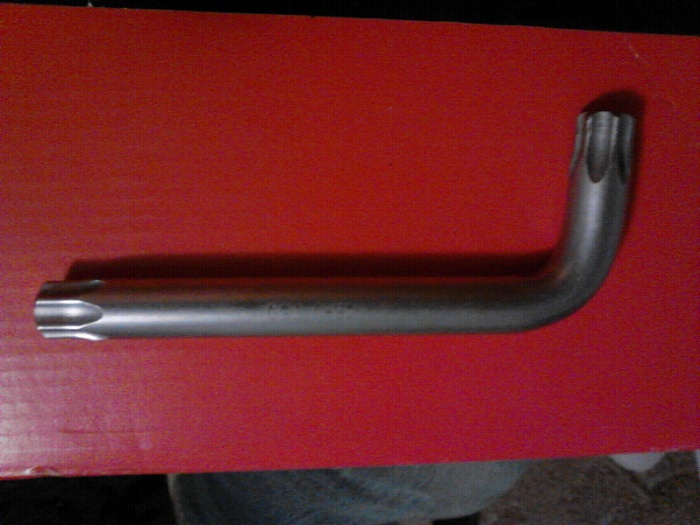

This is what worked for me, really a pain. I had to do it from underneath

Mechanic says oil leak is bad-forumrunner_20120225_185042.jpg
Reply
Old Feb 25, 2012 | 06:07 PM
  #81
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Originally Posted by Zach2610
Got it, NO MORE OIL LEAKS!!! haha its nice
And the crowd cheers Well done! Now the next thing.

(yea, there was one other thing that's a little harder that it sounds, I forget what it was)
Reply
Old Feb 25, 2012 | 06:24 PM
  #82
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Originally Posted by DFlintstone

And the crowd cheers Well done! Now the next thing.

(yea, there was one other thing that's a little harder that it sounds, I forget what it was)
Yep lol next im gonna tackle my rough idle, gonna start readin up on it. Its gettin worse and worse......
Reply
Old Feb 25, 2012 | 06:29 PM
  #83
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Zach2610
Yep lol next im gonna tackle my rough idle, gonna start readin up on it. Its gettin worse and worse......
Congratulations!!

Have you cleaned the throttle body and IAC yet? Checked to make sure your intake manifold fasteners are snug?
Reply
Old Feb 25, 2012 | 08:30 PM
  #84
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cruiser54

Congratulations!!

Have you cleaned the throttle body and IAC yet? Checked to make sure your intake manifold fasteners are snug?
I havent done anything yet but i have an exaust manifold crack.....can that cause it?
Reply
Old Feb 25, 2012 | 11:26 PM
  #85
AMG's Avatar
AMG
CF Veteran

Joined: Jan 2011
Posts: 1,245
Likes: 0
From: Lexington, KY
Year: 1997
Model: Cherokee
Engine: 4.0 HO with a bored throttle body and 703 injectors
Default

Originally Posted by Zach2610
I havent done anything yet but i have an exaust manifold crack.....can that cause it?
No, or at least very unlikely not. When was the last time the engine had a tune-up? New plugs, wires, distributor cap and rotor button, and an oxygen senser can really clean up idle and running issues. Plus, try running a fuel system cleaner like Lucas oil's Deep fuel system cleaner.
Reply
Old Feb 26, 2012 | 06:18 AM
  #86
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by AMG
No, or at least very unlikely not. When was the last time the engine had a tune-up? New plugs, wires, distributor cap and rotor button, and an oxygen senser can really clean up idle and running issues. Plus, try running a fuel system cleaner like Lucas oil's Deep fuel system cleaner.

That^^ with a throttle body clean first since it's new to you. Basics have to be done first.
Reply
Old Feb 26, 2012 | 07:04 AM
  #87
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Originally Posted by AMG
No, or at least very unlikely not. When was the last time the engine had a tune-up? New plugs, wires, distributor cap and rotor button, and an oxygen senser can really clean up idle and running issues. Plus, try running a fuel system cleaner like Lucas oil's Deep fuel system cleaner.
I have new plugs and wires but thats all
Reply
Old Feb 26, 2012 | 07:07 AM
  #88
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Take a look at the cap and rotor.

Have you checked your intake manifold bolts?

You're gonna have to do some stuff here to make sure what it ISN'T and it's all basic maintenance and cheap to do.

What brand of spark plugs did you use?
Reply
Old Feb 26, 2012 | 08:33 AM
  #89
Zach2610's Avatar
Thread Starter
Member

Joined: Mar 2011
Posts: 152
Likes: 0
From: Georgia
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Autolite platinum i think
Reply
Old Feb 26, 2012 | 09:31 AM
  #90
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Just in case you are looking for something to do;
That rear manifold bolt has a habit of loosening. On anything like that you NEVER want to tighten only one. It can warp/bend, even crack things. If I found that any that where easy to reach where loose, I'd pull the air cleaner and tighten them all, starting in the middle and working out towards the ends. I'd go over three times, a tad tighter each time. I have a pretty good feel for torque/tightness, and it's a bear of a spot to get a torque wrench on them all. Just don't ape on it. If its firm and not turning, no point in going on to break it, a REAL *****. The rearmost bolt underneath takes a little doing, but it can be done with the right extension(s?). For that very back one by the firewall I use way long extensions (18"), with a swivel at the socket. The E-fan comes out in a snap with only the two little top cap screws, I forget if that helps or not. Anyway, that's a good thing to check on any old Jeep.
(Check your motor mount while the air cleaner is off)
