BreakOut

Ok so it might not be so major but my belt decided to give up on me today and it broke and flew off. Alright went out and bought a new one and when i was ready to put it on i realized i didnt know how it went and that i didnt have a diagram anywhere on in my engine bay. So now i have a nice jeep sitting in my driveway without a belt and im sad that i cant drive it. So if you guys could lend me a hand and help me get my belt back on that would be great. Oh and i mean help as in getting a picture of how your belt is on or a diagram of some sort. Would appreciate any help that you guys can give.

Banks

Programbo

That`s what I like a quick and efficient reply

boyesreef

id say

Mike1998XJ

If he has a 1998 Cherokee the routing should be like this.
Mike

BreakOut

Oh wow this is really odd. For some odd reason my jeep has 8 pulleys instead of 7 like the rest of you guys. =S

89cherokeelimited

What is your extra pulley? I've never heard of a jeep having 8

Mike1998XJ

Yes, we need a picture of that!

BreakOut

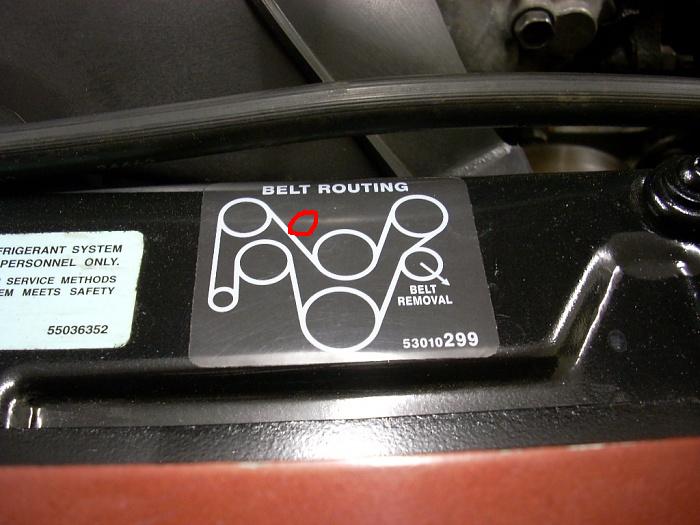

I will defiantly get you guys some pictures of my extra pulley that i have later today or either tomorrow and hopefully we can figure this pulley out. But for now i just edited one of the pictures from above and made the pulley where mine is located. Thanks for all the help guys. I really appreciate it.
