leaf spring problem
#1
Newbie
Thread Starter
Join Date: Aug 2008
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
leaf spring problem
I was attempting to remove leaf spring but the drivers side front nut broke from the weld. I grinded the bolt off so the spring is out but now the nut and part of the bolt are stuck in the perch. should i hole saw threw the frame to get it out and put a new bolt on? I don't know anyone that welds. any suggestions would be greatly appreciated.
#2
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 16 Likes
on
12 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
I had no such problem with mine but you can PM XJStryker he is the expert as both his Jeeps had that problem. Good Luck.
#3
Do you hear banjos?
Try to get the bolt and hardware out of the frame rail. Drill a hole that matches the OD of the bolt of the bolt that goes through the leaf. Cut a small rectangle in the "frame" where the hardware used to live. Only needs to be big enough to get a wrench, nut, washers, etc... through. Find the right length of grade 8 bolt and nut, with a couple of washers inside the nut for support and on the out side as well. We had to do this on my buddies XJ about a year ago, and it has held with no problems what so ever, and his right foot has a high lead content!! Just check the bolt from time to time to make sure it's tight. You can't patch the hole, as you need to be able to access it to tighten the bolt. Be sure and throw some paint on it after the job is done to keep the rust bunnies away!! I wouldn't worry about welding it because if it strips out you're right back where you started!! Hope this helps!! Later!!
#6
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 16 Likes
on
12 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
Took him half a day to check in but this guy above^^^^ is the one I was sure had your solution. Thanks Kid Stryker!!
#7
Do you hear banjos?
Trending Topics
#8
Seasoned Member
Join Date: Apr 2008
Location: Grand Junction, Colorado
Posts: 377
Likes: 0
Received 2 Likes
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0L
Here is what I did on mine. I did end up leaving mine open and if the other side does this at some point, I wouldn't hesitate to do it again. Try to make it a little cleaner than Stryker (no offense) Something more like this.
That way if you do end up welding it back up then it will penetrate more even. Also I have seen a thread somewhere on NAXJA where a guy cut a square out of the center part where the bolt would be and fabbed up his own welded nut on the inside and welded the square back in the center.
#9
Junior Member
Join Date: Mar 2009
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: '85
Model: Cherokee
Engine: 4.0L I6
Here is what I did on mine. I did end up leaving mine open and if the other side does this at some point, I wouldn't hesitate to do it again. Try to make it a little cleaner than Stryker (no offense) Something more like this.
That way if you do end up welding it back up then it will penetrate more even. Also I have seen a thread somewhere on NAXJA where a guy cut a square out of the center part where the bolt would be and fabbed up his own welded nut on the inside and welded the square back in the center.
That way if you do end up welding it back up then it will penetrate more even. Also I have seen a thread somewhere on NAXJA where a guy cut a square out of the center part where the bolt would be and fabbed up his own welded nut on the inside and welded the square back in the center.
I have this exact same problem right now. But I am a little bit confuse by the picture. On the inside hole is that just a hole or a new nut welded there?
#11
Junior Member
Join Date: Mar 2009
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: '85
Model: Cherokee
Engine: 4.0L I6
K I have the hole cut in the bracket and everything is out to where I can put a fresh bolt and nut in...the problem I have is that the holes are pretty seriously wollered-out. I can't get my welder inside that bracket to weld a big washer there or something....any ideas? Thanx for any help!!
#13
Junior Member
Join Date: Mar 2009
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: '85
Model: Cherokee
Engine: 4.0L I6

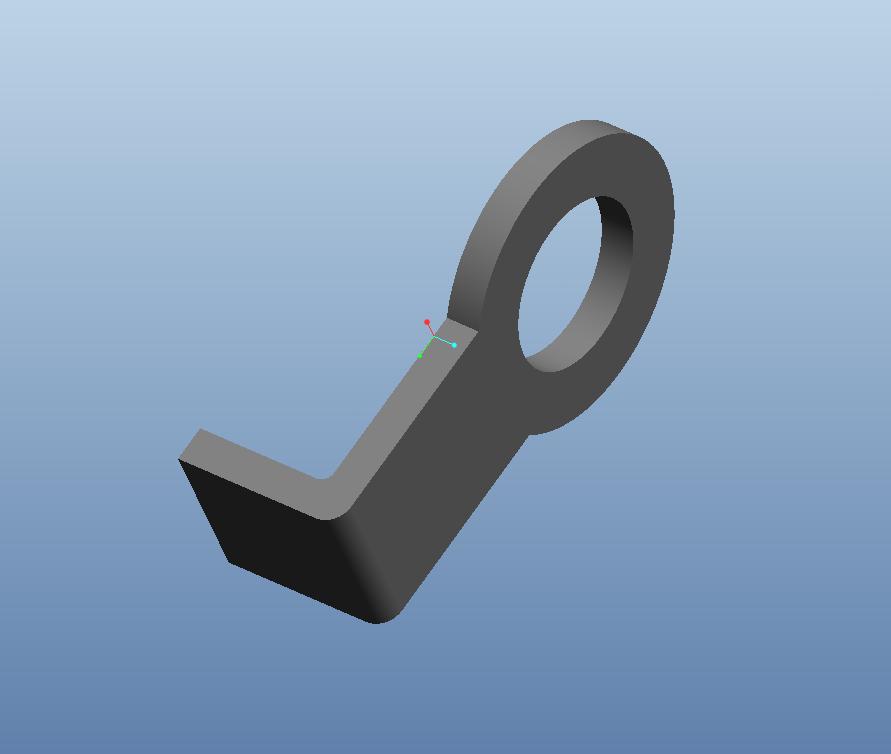

K i really like that idea but are you meaning to weld the tab to the frame outside of where the nut is housed? And if so do you think this has enough strength to support everything?
#14
Junior Member
Join Date: Mar 2009
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: '85
Model: Cherokee
Engine: 4.0L I6
K thanx for all the help everyone. It's back together and in better shape than before. Although I did it my own way, it was a combination of everybody's ideas that made it happen...thanx again.
