Default intake tubing

Dumb question. Im not quite up on my tech terms but the tube that goes from the block to the intake, @ its connection on the top of the block, is that area supposed to have a lot of "play"? When i was removing my k/n filter for cleaning i noticed the flat piece was moving around a lot more then what i would think would be normal with a small gap

Like i said dumb question. But just making sure
Old 02-20-2013, 11:17 AM
  #2
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Pics ?
Old 02-20-2013, 11:29 AM
  #3
Member
Thread Starter

XJtlk789's Avatar

Join Date: Sep 2009
Posts: 238
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0l I6
Default

Yeah. See the gap im talking about. And it spins a little too easy, to me at least.

intake tubing-forumrunner_20130220_122837.jpg
Old 02-20-2013, 11:55 AM
  #4
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes on 67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

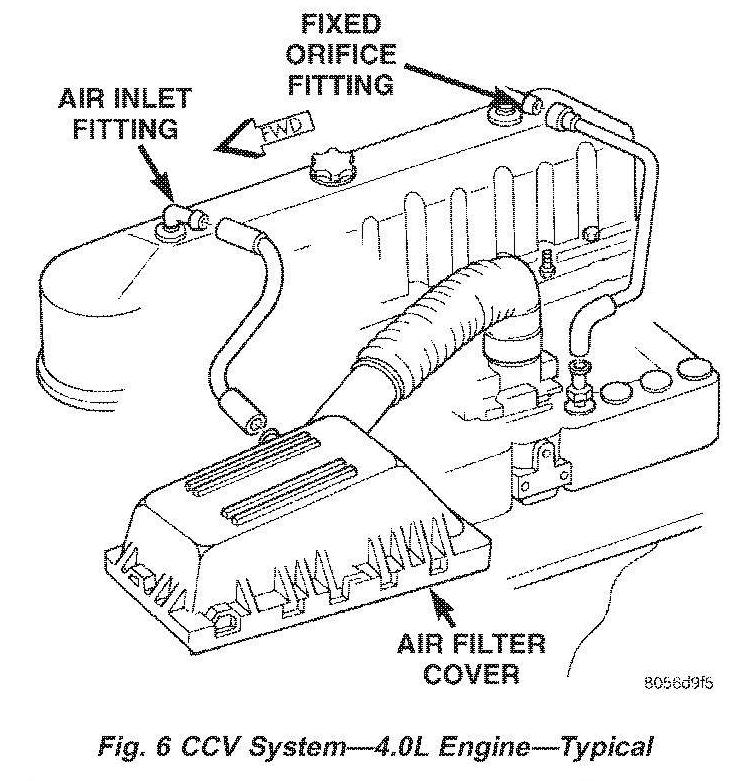

Here's a pic of the crank case ventilation system. As you can see, that fitting you have in your pic is the air inlet fitting. The loose piece is the grommet. These grommets can be obtained from auto parts stores. So can the fittings.

Name:  40CCV.jpg
Views: 28
Size:  109.7 KB
Old 02-20-2013, 11:59 AM
  #5
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by XJtlk789
Yeah. See the gap im talking about. And it spins a little too easy, to me at least.

Attachment 176077
You can just put a clamp on it if ya want it alowscrank case preessure//ffumes to be drawn out and reciculated
Old 02-20-2013, 11:59 AM
  #6
Member
Thread Starter

XJtlk789's Avatar

Join Date: Sep 2009
Posts: 238
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0l I6
Default

Ok so i should replace it? Thats not normal movement? Is there a way to tighten it?
Old 02-20-2013, 12:07 PM
  #7
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by XJtlk789
Ok so i should replace it? Thats not normal movement? Is there a way to tighten it?
They gonna move as long as its not soft and rotted youll be fine just a zip tie if ya wanna snugit up.
Old 02-20-2013, 12:18 PM
  #8
Member
Thread Starter

XJtlk789's Avatar

Join Date: Sep 2009
Posts: 238
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0l I6
Default

Ok cool thanks guys. Appreciate it
