j-rod

ok so today I swapped in the new AW4 and junked the bad one.

I also installed a new 29 tooth speedo gear. everything is working except the speedo now.

I thought I had it all lined up but apparently not. I am getting no reading on the speedo at all.

What do I line the number range up with to be sure it is aligned? I see three diff ranges of numbers on the black part the gear snaps in to...but how do I know it is aligned properly with the gear in the housing?

Thanks!

this is on a 96 XJ. 4.0 4WD.

freegdr

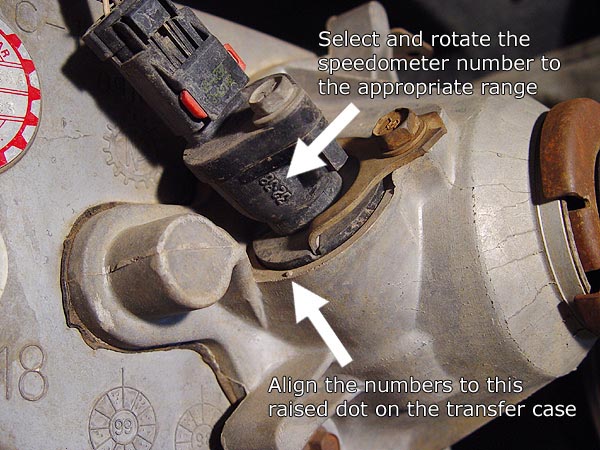

this help

j-rod

thank you.

I will double check that tomorrow when i get the XJ back home. I didnt see a dot or anything to align it to like that when i did it today.

freegdr

this is for wrangler but the areas prob still the same google it

OnlyInMyXJ22

Here

Scroll down about half way and it will explain how to line it up properly.

j-rod

going to go get my Jeep this morning. think ill try and correct speedo before driving home. dont want to shear any teeth off the new gear...though I think my gear isnt even touching so it shouldnt be an issue.

freegdr

getter done

j-rod

got her done. speedo works. Ill check it with the GPS for accuracy tomorrow on the drive to work.
