Ideas for rear ash tray pre 96
#1
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Ideas for rear ash tray pre 96

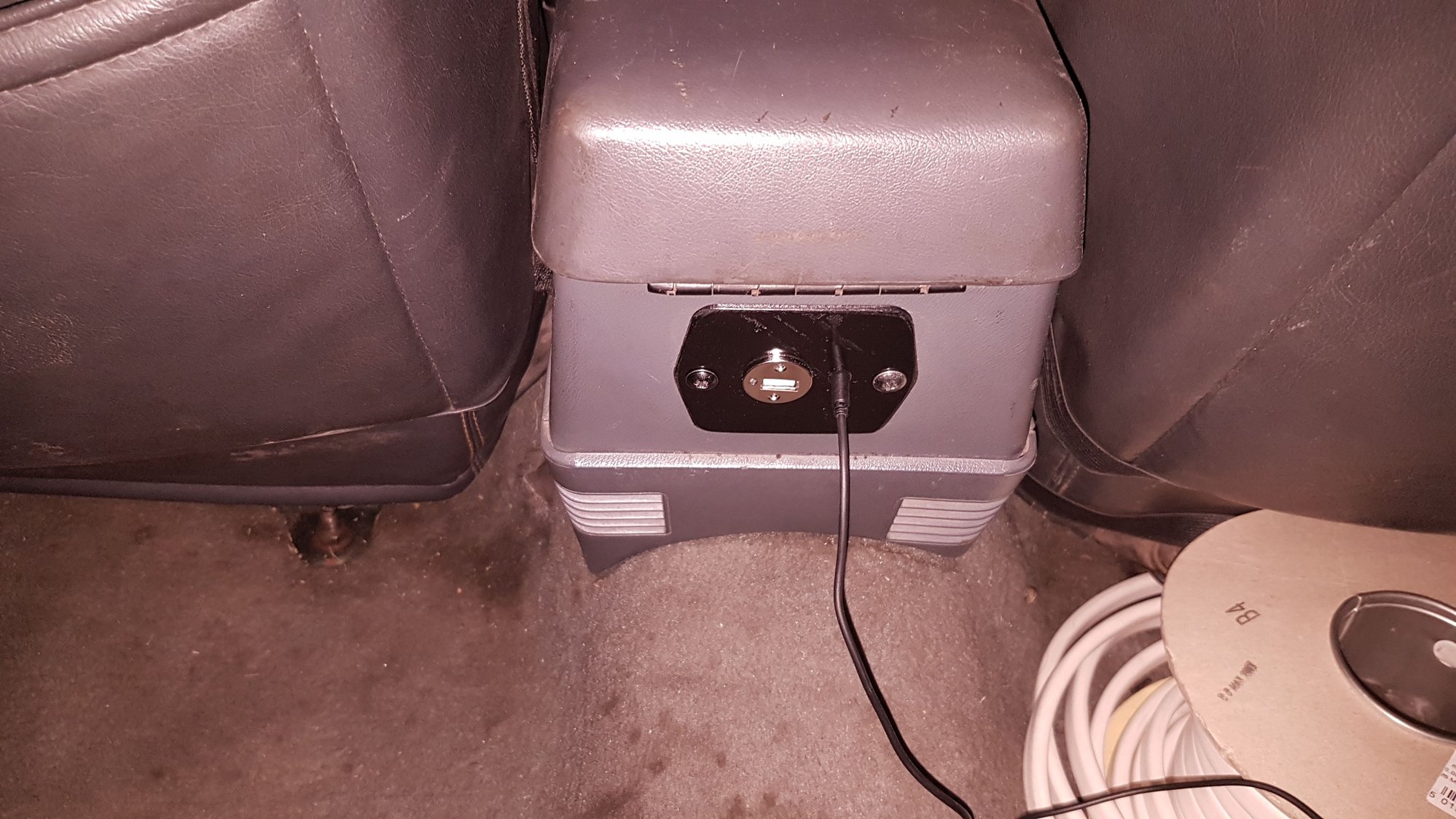

I want to add a clean and functional usb charger where the ash tray is on the back of the center console for pre 96 XJs. I知 still new to wiring. I知 curious what other people have done with this space or if someone has done the same thing.
I might post in Cherokee chat
I might post in Cherokee chat
Last edited by Spencer_P; 05-01-2019 at 05:27 PM.
#3
CF Veteran
I like the usb port idea. I might just look into that. I already have a hard-wire usb charger component that I haven't taken the time to install yet.
#6
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
https://www.amazon.com/dp/B00MODXVO8/ref=wl_it_dp_o_pd_S_ttl?_encoding=UTF8&colid=R30M0DNCDDFB&coliid=IHTOH127ZFUW2&pldnSite=1
I think this would be really nice to install where the ash tray is but would probably have to make some form of a plate for it to mount to
#7
CF Veteran
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
It just came back to me what I planned on doing. Put a USB port and an Aux port back there as I have a friend who has to lean forward with his phone for plugging into the radio. Then at the front end put another Aux port to then plug my lead in.
Trending Topics
#10
CF Veteran
Join Date: Oct 2018
Location: Hunt County Texas
Posts: 1,096
Received 164 Likes
on
139 Posts
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
https://www.amazon.com/dp/B00MODXVO8...UW2&pldnSite=1
I think this would be really nice to install where the ash tray is but would probably have to make some form of a plate for it to mount to
I think this would be really nice to install where the ash tray is but would probably have to make some form of a plate for it to mount to
Its on my list of things to do as well. When im camping it would be nice to have an outlet there. Even though i have another in the cargo area.
#11
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
yeah I thought about that too. Could you tell me some more about how you put one in the cargo area? I know my way around the engine but haven稚 attempted any wiring yet.
#12
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
You must start by knowing your load.
When it doubt, go big.
Second, use proper tools and good quality components. This is no place to cheap out. Crappy vinyl connectors will bite you in the butt somewhere down the road. Use 3M nylon or equivalent. Get a GOOD crimper and learn how to use it properly. Don't just stick the connector in there any old way and mash down. That kind of crap is exactly why crimp connections have a bad reputation - people don't do it right. Crimp connections, done right, are preferred in marine applications, and are mil-spec in many applications where soldering is not permitted. Yeah, that's right. Properly done crimps are better than soldering.
Blue Sea Marine components are about the best out there.
Third, watch out for chafing points. Even though you are going to fuse your new circuit close to where you tap in for power, you don't want to have to redo it all because you are constantly blowing fuses. Use wire loom and rubber wire mounts as needed to make sure you don't have any hot wires rubbing through anywhere.
#13
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
The first thing you need to know is your load. What are you going to power with your project? That will tell you how much current you will need, which will tell you what size wire you need, which will tell you what size fuse you need.
You must start by knowing your load.
When it doubt, go big.
Second, use proper tools and good quality components. This is no place to cheap out. Crappy vinyl connectors will bite you in the butt somewhere down the road. Use 3M nylon or equivalent. Get a GOOD crimper and learn how to use it properly. Don't just stick the connector in there any old way and mash down. That kind of crap is exactly why crimp connections have a bad reputation - people don't do it right. Crimp connections, done right, are preferred in marine applications, and are mil-spec in many applications where soldering is not permitted. Yeah, that's right. Properly done crimps are better than soldering.
Blue Sea Marine components are about the best out there.
Third, watch out for chafing points. Even though you are going to fuse your new circuit close to where you tap in for power, you don't want to have to redo it all because you are constantly blowing fuses. Use wire loom and rubber wire mounts as needed to make sure you don't have any hot wires rubbing through anywhere.
You must start by knowing your load.
When it doubt, go big.
Second, use proper tools and good quality components. This is no place to cheap out. Crappy vinyl connectors will bite you in the butt somewhere down the road. Use 3M nylon or equivalent. Get a GOOD crimper and learn how to use it properly. Don't just stick the connector in there any old way and mash down. That kind of crap is exactly why crimp connections have a bad reputation - people don't do it right. Crimp connections, done right, are preferred in marine applications, and are mil-spec in many applications where soldering is not permitted. Yeah, that's right. Properly done crimps are better than soldering.
Blue Sea Marine components are about the best out there.
Third, watch out for chafing points. Even though you are going to fuse your new circuit close to where you tap in for power, you don't want to have to redo it all because you are constantly blowing fuses. Use wire loom and rubber wire mounts as needed to make sure you don't have any hot wires rubbing through anywhere.
#14
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Okay, that's very minimal amperage. Most cigarette lighter sockets are fused at 20 amps, so if you tap there, you'll probably want to fuse at something like 5 amps, and run 18 gauge wire.
