Horn's NOT Honkin'
#1
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
Horn's NOT Honkin'
Hey Fellas:
I need some of your expertise. My horn is not honking. This just happened last week. I'm really concerned because I share this Jeep with my 18 year old and I don't want him or I to ever be in a dangerous situation and not be able to honk the horn. When the horn is pressed all you can hear is a click. If you give me instructions I can follow them and fix the horn.
Thanks a lot!
'94 XJ
I need some of your expertise. My horn is not honking. This just happened last week. I'm really concerned because I share this Jeep with my 18 year old and I don't want him or I to ever be in a dangerous situation and not be able to honk the horn. When the horn is pressed all you can hear is a click. If you give me instructions I can follow them and fix the horn.
Thanks a lot!
'94 XJ
#2
Seasoned Member
Join Date: Jul 2013
Location: Spokane Valley, WA
Posts: 432
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Hey Fellas:
I need some of your expertise. My horn is not honking. This just happened last week. I'm really concerned because I share this Jeep with my 18 year old and I don't want him or I to ever be in a dangerous situation and not be able to honk the horn. When the horn is pressed all you can hear is a click. If you give me instructions I can follow them and fix the horn.
Thanks a lot!
'94 XJ
I need some of your expertise. My horn is not honking. This just happened last week. I'm really concerned because I share this Jeep with my 18 year old and I don't want him or I to ever be in a dangerous situation and not be able to honk the horn. When the horn is pressed all you can hear is a click. If you give me instructions I can follow them and fix the horn.
Thanks a lot!
'94 XJ
Black89
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Great info there above^. I'd still see if I could check it's fuse. Normally a relay gets power in two places, one to power/activate the relay, and another for the actual power for the device.
#4
Seasoned Member
Join Date: Jul 2013
Location: Spokane Valley, WA
Posts: 432
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Black89
Last edited by Black89; 10-17-2013 at 11:14 PM.
#5
Member
Join Date: May 2012
Location: Missouri
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Check for water in them. After swapping to a nice fancy front bumper, mine got water in them and died (well, only one died. the other sounds like it's sick). Replaced the dead one with a universal replacement from O'Reillys and all is good.
#6
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
Yesterday...
...when my son was driving the horn started working and then stopped. At some point tomorrow I will take the cover off and turn the bolt underneath. In the past it was sticking and when I took the bolt off I found that I needed to replace the plastic ring.
I have not checked the fuse because I don't have the schematic

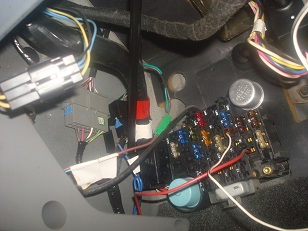

anymore. Here is a pic of the fuses will one of you please tell me which one I should check?
Also, I'm not sure how to check the power wire connection, loosen the mount bolt or "wrap the horn". Please be explain in simple terms if you can, as I do not understand mechanical jargon but I can fix it. Thank you!
I have not checked the fuse because I don't have the schematic
anymore. Here is a pic of the fuses will one of you please tell me which one I should check?
Also, I'm not sure how to check the power wire connection, loosen the mount bolt or "wrap the horn". Please be explain in simple terms if you can, as I do not understand mechanical jargon but I can fix it. Thank you!
#7
Seasoned Member
Join Date: Jul 2013
Location: Spokane Valley, WA
Posts: 432
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
...when my son was driving the horn started working and then stopped. At some point tomorrow I will take the cover off and turn the bolt underneath. In the past it was sticking and when I took the bolt off I found that I needed to replace the plastic ring.
I have not checked the fuse because I don't have the schematic
anymore. Here is a pic of the fuses will one of you please tell me which one I should check?
Also, I'm not sure how to check the power wire connection, loosen the mount bolt or "wrap the horn". Please be explain in simple terms if you can, as I do not understand mechanical jargon but I can fix it. Thank you!
I have not checked the fuse because I don't have the schematic
anymore. Here is a pic of the fuses will one of you please tell me which one I should check?
Also, I'm not sure how to check the power wire connection, loosen the mount bolt or "wrap the horn". Please be explain in simple terms if you can, as I do not understand mechanical jargon but I can fix it. Thank you!
Black89
Trending Topics
#8
Seasoned Member
Join Date: Jul 2013
Location: Spokane Valley, WA
Posts: 432
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
This link will provide the fuse panel layout you just need to scroll down to the one that shows your year.
http://www.jeepsunlimited.com/forums...se-box-Diagram
Black89
http://www.jeepsunlimited.com/forums...se-box-Diagram
Black89
#9
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
So, this is where I am...
...do I need to go further. I don't see a wire but if stick this tool into the horn that operates the horn, I hear the same click.
Have I gone far enough? Not sure how to pull the steering wheel apart. When I removed the bolt in the middle, nothing happened.
Have I gone far enough? Not sure how to pull the steering wheel apart. When I removed the bolt in the middle, nothing happened.
#10
Seasoned Member
Join Date: Jul 2013
Location: Spokane Valley, WA
Posts: 432
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
You do not need to pull the steering wheel apart. That's not the horn is just the button for it and since the relay is "Clicking" the "button" is not the issue. The Horn is located down under behind the bumper. (at least on my 89' which has one on each side) The horn or horns each have a power wire going to them and that is what needs to be cleaned. You will then also see where they bolt up and ground as well. Those points need to be clean as well. Put the steering wheel back together and look under the front for the horns. They will be black in color and have a squared of trumpet like end on them which is where the sound comes from.
#11
Senior Member
Thread Starter
Join Date: Apr 2012
Location: Charlotte, NC
Posts: 716
Received 0 Likes
on
0 Posts
Year: 1994 Jeep Cherokee Sport
Hey Guys...
It's fixed! Hooray! Loosened the mount bolt a bit and then took the spring out of the hole that my son pointed to in the previous pic and wal-la! Totally working!
Woohoo! Thanks fellas!!! Until next time...my horn's a honkin'! O yeah!
Woohoo! Thanks fellas!!! Until next time...my horn's a honkin'! O yeah!
