Help identifying cracked power steering mount
#1
Newbie
Thread Starter
Join Date: Apr 2018
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee(SJ)
Help identifying cracked power steering mount

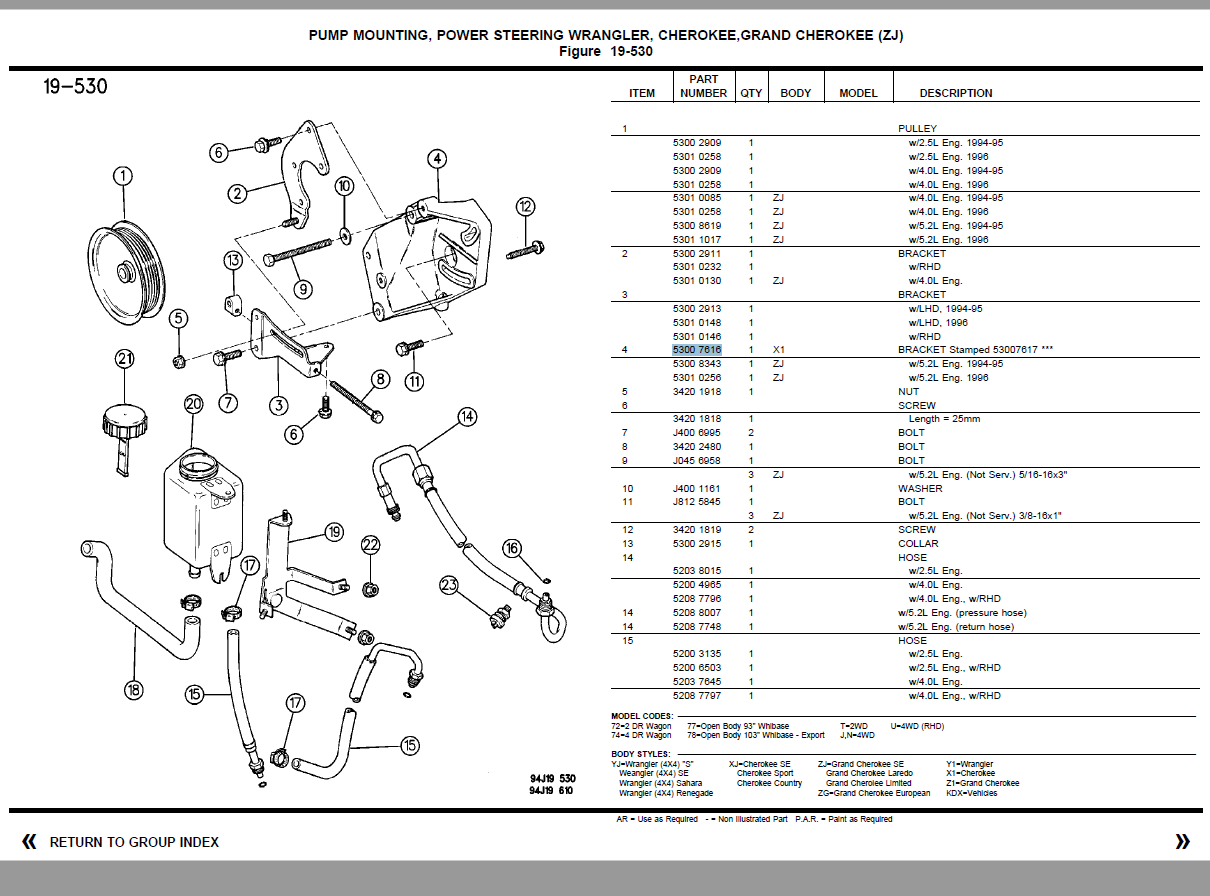

#4 in diagram, what the part number?
We recently bought a 1995 Cherokee XJ and it has a crack in the mount behind the power steering pump/reservoir. The crack is about 85% of the way thru to the other side so we would like to get it fixed as soon as possible but we can't find a part number anywhere or any help on the internet. A few other people in other threads have asked similar questions about this part, but I didn't see any resolutions. If anyone has any idea what different names this part could have or the part number, I'd appreciate it. I know we could go to a scrap yard and pull one the old fashioned way, but I'd like to have the part number first so I know my options. I'm hoping that this part is not a part of the intake manifold in some way. I'n at least 95% sure the part we are looking for is #4 in the diagram but I couldn't find anything with a reverse google search. Thanks for any help and input!
We recently bought a 1995 Cherokee XJ and it has a crack in the mount behind the power steering pump/reservoir. The crack is about 85% of the way thru to the other side so we would like to get it fixed as soon as possible but we can't find a part number anywhere or any help on the internet. A few other people in other threads have asked similar questions about this part, but I didn't see any resolutions. If anyone has any idea what different names this part could have or the part number, I'd appreciate it. I know we could go to a scrap yard and pull one the old fashioned way, but I'd like to have the part number first so I know my options. I'm hoping that this part is not a part of the intake manifold in some way. I'n at least 95% sure the part we are looking for is #4 in the diagram but I couldn't find anything with a reverse google search. Thanks for any help and input!
#2
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,531 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
So I think I found the part. 5300 7616. Looks the same from '91 to '96. Clicking on it will make it bigger and readable.
