Cracked Head Gasket? Cracked Cylinder Head?
#1
Seasoned Member
Thread Starter
Join Date: Nov 2011
Location: West Warwick, RI
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L High Output
Cracked Head Gasket? Cracked Cylinder Head?
Hey Guys,
Hope all you Nor'East people are doing good with this bitter cold. So basically I'm thinking I have a crack in my Head Gasket in my 95 XJ, 4.0HO...Jeep sat for about a week in this terrible weather for about a week, went out to start it and it wouldn't turn over. I asked my neighbor if he'd give me a jump and while I went inside to get my Cables, he took it upon himself to check everything out for me, which was really nice. Anyways, he said Thomas, you do realize your at the Add mark on your Antifreeze Bottle and your Oil is way up. I had to move it to the front of my house so I had no choice unless I wanted to push it up the driveway, so I had him jump it. As soon as I started it, it was knocking like a sonofa*****. Now, I know when you revv it, it will go away if it's a lifter...Which it did. Now, my final question...Coolant in the Oil obviously means something is toast...If it were a cracked head would it sound like a diesel? Its not smoking blue but the Oil looks like Chocolate Milk. Sorry for the people that say JUST SEARCH!!!! But Im using a phone and this app is always screwing up, crashing, and closing. Thanks guys for the input.
Hope all you Nor'East people are doing good with this bitter cold. So basically I'm thinking I have a crack in my Head Gasket in my 95 XJ, 4.0HO...Jeep sat for about a week in this terrible weather for about a week, went out to start it and it wouldn't turn over. I asked my neighbor if he'd give me a jump and while I went inside to get my Cables, he took it upon himself to check everything out for me, which was really nice. Anyways, he said Thomas, you do realize your at the Add mark on your Antifreeze Bottle and your Oil is way up. I had to move it to the front of my house so I had no choice unless I wanted to push it up the driveway, so I had him jump it. As soon as I started it, it was knocking like a sonofa*****. Now, I know when you revv it, it will go away if it's a lifter...Which it did. Now, my final question...Coolant in the Oil obviously means something is toast...If it were a cracked head would it sound like a diesel? Its not smoking blue but the Oil looks like Chocolate Milk. Sorry for the people that say JUST SEARCH!!!! But Im using a phone and this app is always screwing up, crashing, and closing. Thanks guys for the input.
#2
Seasoned Member
Thread Starter
Join Date: Nov 2011
Location: West Warwick, RI
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L High Output
Ill get a video up here of it...BTW, Check Engine light is lit but Ill get the codes tomorrow and post them.
#3
Seasoned Member
Thread Starter
Join Date: Nov 2011
Location: West Warwick, RI
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L High Output
http://m.youtube.com/#/watch?v=4dYAkg6OV5o&feature=youtube_gdata_player&desktop_uri=%2Fwatch%3Fv%3D4dYAkg6OV5o%26feature%3Dyoutube_gdata_player I hope it works.
#4
CF Veteran
Join Date: Jul 2012
Location: SD
Posts: 1,395
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
The video doesn't play for me, but from your description, it sure sounds like a head gasket/head problem. Time for some troubleshooting (compression test, cooling system pressure test, etc).
#6
CF Veteran
Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
There is really only one way to find out for sure if it's a cracked head or just a head gasket. That would be by pulling the head. Hopefully it is only the head gasket. Let us know what you find out.
Good Luck!
Good Luck!
#7
CF Veteran
Join Date: Dec 2009
Location: Oxford NC
Posts: 1,882
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
just make sure you resurface the head before reinstalling it with a new gasket as they can warp. and check the valves. might at well get it all out of the way while your in there
Trending Topics
#9
Seasoned Member
Thread Starter
Join Date: Nov 2011
Location: West Warwick, RI
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L High Output

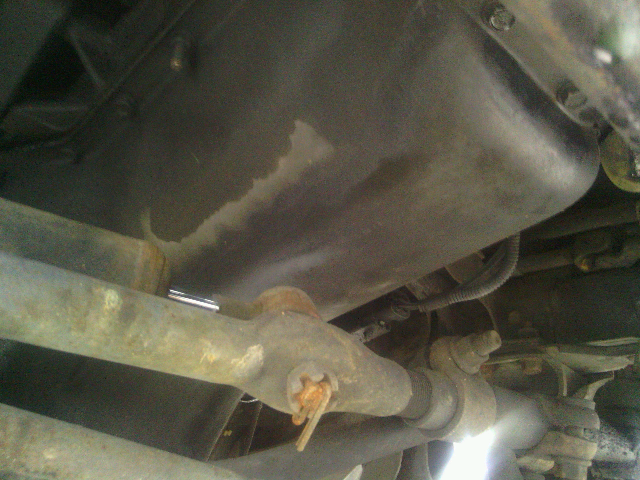

Everyone, thanks for all the help. I knew it had to be a gasket...Alright...Time to search how to replace it. Felpro will be the best I assume, am I correct?? I hear it isn't hard, just very time consuming. This morning it also had leaked quite a significant amount of Coolant from what looks like some kind of a seal directly below a pulley (I think, don't laugh if it isn't a Pulley, Ha)...Don't know if that has anything to do with a gasket, but I just want to throw that out there.
#10
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
If it is going to be a while before you make repairs, change the oil and filter, then crank the motor over with the plugs out a few times. Don't want to leave the bearings soaking in antifreeze any longer than necessary.
#11
Member
Join Date: Sep 2010
Location: St Louis Park, MN
Posts: 112
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
As they said, I would guess a head gasket. Usually a cracked head will pressurize your cooling system or smoke like a b I t c h. I would suggest going with a felpro kit because it will give you a ton of stuff. When you get the head off, poor water in the intake and exhaust port and watch her leaks from the valves. Not everything has a valve tool and a valve lapper or know how to do it correctly. If you are leaking from the valves, take it to a machine shop and have them do a valve job and deck the head. It should only cost $250 ish from a good shop. Also, while the clean the head they can find if there is a crack in it. That is my suggestion, of course I didn't do that cause I had no money but being a mechanic I rigged my own port and lapped the valves. hooray for broke mechanics! Anyways, good luck and let us know what you did!
#13
Seasoned Member
Thread Starter
Join Date: Nov 2011
Location: West Warwick, RI
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L High Output
I will be doing all of what you guys told me. Jesus, Id be lost without this forum...My truck gave me a wonderful sixteenth birthday present! Eh, maybe she is jealous she can't have cake. Who wants a slice of Death By Chocolate Cake? All anyone needs is a sliver of this stufd and you'll be good for chocolate till the next century. Six Layers and nothing but chocolate. I really have to stop getting off topic. Anyways guys, I appreciate all the help you guys give me to keep this thing running, and don't know what the heck I'd do without ya's.
#15
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Good luck. Being as young as you are and successfully replacing your own head gasket would be a great achievement and invaluable life skill under your belt!

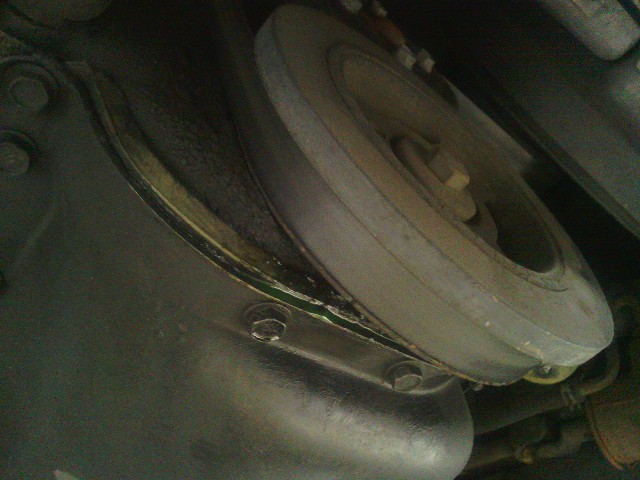

Be sure to check every nook and cranny of your cooling system. Radiator, hoses, freeze plugs (I had a lot of drama with these), water pump. It's possible that leak in the one picture you have is coming from the water pump since that sits above the "pulley" you mentioned which is actually the harmonic balancer (I think).
Last weekend I thought for sure I blew my head gasket trying to get my Jeep as close to home as I could get after I blew a freeze plug and all the coolant rushed out of my engine block...but after putting it all back together and fixing everything, turns out the good ol 4.0 still runs fine.
Be sure to check every nook and cranny of your cooling system. Radiator, hoses, freeze plugs (I had a lot of drama with these), water pump. It's possible that leak in the one picture you have is coming from the water pump since that sits above the "pulley" you mentioned which is actually the harmonic balancer (I think).
Last weekend I thought for sure I blew my head gasket trying to get my Jeep as close to home as I could get after I blew a freeze plug and all the coolant rushed out of my engine block...but after putting it all back together and fixing everything, turns out the good ol 4.0 still runs fine.
