Help identify broken part
#1
Senior Member
Thread Starter
Join Date: Feb 2011
Location: NJ
Posts: 897
Likes: 0
Received 1 Like
on
1 Post
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Help identify broken part

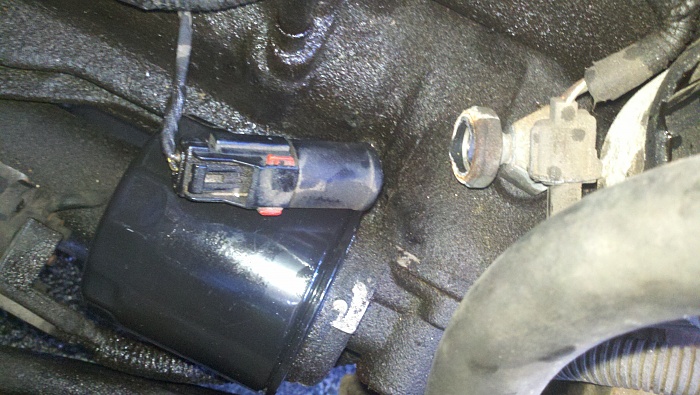

During an oil change I broke a plug looking part. It's plugged in right above the oil filter into the distributor I believe. It broke all the way at the base below the connection. The check gauges light is on and my oil pressure gauge isn't working. Any ideas what this is called so I can replace it? Thanks.
#2
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Yep that is your oil pressure sending unit (sometimes referred to as an "oil pressure switch"). Which is why your gauge isn't working. You can get a wrench on that metal part of the sensor to take it out and throw a new one on. I'd suggest getting a new one from the dealer.
#3
CF Veteran
Join Date: Jan 2011
Location: Eh infusion
Posts: 8,996
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2000
Model: Cherokee
Engine: The legendary inline 6, haven't done anything here yet
Originally Posted by 1996sportXJ
Yep that is your oil pressure sending unit (sometimes referred to as an "oil pressure switch"). Which is why your gauge isn't working. You can get a wrench on that metal part of the sensor to take it out and throw a new one on. I'd suggest getting a new one from the dealer.
#4
Senior Member
Thread Starter
Join Date: Feb 2011
Location: NJ
Posts: 897
Likes: 0
Received 1 Like
on
1 Post
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Yep that is your oil pressure sending unit (sometimes referred to as an "oil pressure switch"). Which is why your gauge isn't working. You can get a wrench on that metal part of the sensor to take it out and throw a new one on. I'd suggest getting a new one from the dealer.
*never mind about the price. Found some OEM online for $43.82 plus shipping.
Last edited by rgr4475; 04-20-2012 at 06:35 PM.
#5
CF Veteran
Join Date: Jan 2012
Location: New Hampshire
Posts: 1,117
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by rgr4475
Yeah figured it was something like that, thank you. And you're saying I should definitely get OEM instead of aftermarket for something like that? Also, what is the ball park price for an OEM replacement? Thanks again!
#6
CF Veteran
Join Date: Jan 2011
Location: Eh infusion
Posts: 8,996
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2000
Model: Cherokee
Engine: The legendary inline 6, haven't done anything here yet
Originally Posted by rgr4475
Yeah figured it was something like that, thank you. And you're saying I should definitely get OEM instead of aftermarket for something like that? Also, what is the ball park price for an OEM replacement? Thanks again!
*never mind about the price. Found some OEM online for $43.82 plus shipping.
#7
Member
Join Date: Feb 2011
Location: Corpus Christi
Posts: 201
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Just un screw it an buy the highest priced one at auto zone. I went threw 3 bad one before getting one that reads right.
Thanks China for the crap you make
Thanks China for the crap you make
Trending Topics
#8
CF Veteran
Just a side question on this: in case of emergency, can you still drive without it, or will oil be all over the place?
#9
CF Veteran
Yep that is your oil pressure sending unit (sometimes referred to as an "oil pressure switch"). Which is why your gauge isn't working. You can get a wrench on that metal part of the sensor to take it out and throw a new one on. I'd suggest getting a new one from the dealer.
So if you have an actual oil gauge that shows PSI you need the sending unit. If you just have a light to tell you if something's wrong then you need the switch.
#10
CF Veteran
#11
Senior Member
Thread Starter
Join Date: Feb 2011
Location: NJ
Posts: 897
Likes: 0
Received 1 Like
on
1 Post
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Just to clarify, a sending unit is a variable resistance circuit, it allows for the use of a gauge. An oil pressure switch is a simple pressure switch, it's either on or off depending on if the pressure is right or not, this is used with a dummy gauge(idiot lights.)
So if you have an actual oil gauge that shows PSI you need the sending unit. If you just have a light to tell you if something's wrong then you need the switch.
So if you have an actual oil gauge that shows PSI you need the sending unit. If you just have a light to tell you if something's wrong then you need the switch.
#12
Senior Member
Thread Starter
Join Date: Feb 2011
Location: NJ
Posts: 897
Likes: 0
Received 1 Like
on
1 Post
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Got the part and installed it today with no problems. Thanks everyone for the help.
Side note: I had a mid range Fram oil filter on there for about 5000 miles. Ended up putting a Bosch oil filter on because of all the bad things I heard about Fram filters. And wow, what a difference in oil pressure between the two. At idle with the Fram, the gauge would almost show no oil pressure and would only rise when accelerating. Now, the oil pressure is strong even at idle. That will be the last Fram anything I buy.
Side note: I had a mid range Fram oil filter on there for about 5000 miles. Ended up putting a Bosch oil filter on because of all the bad things I heard about Fram filters. And wow, what a difference in oil pressure between the two. At idle with the Fram, the gauge would almost show no oil pressure and would only rise when accelerating. Now, the oil pressure is strong even at idle. That will be the last Fram anything I buy.
