Head gasket or not?

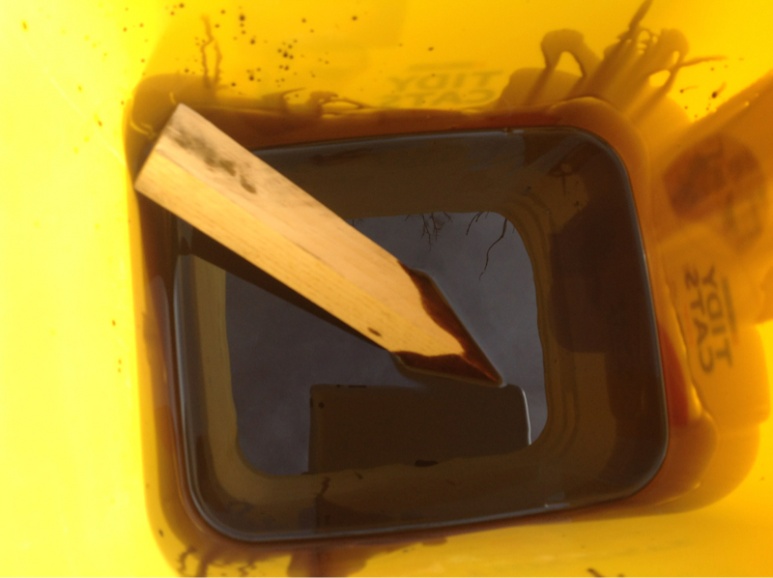

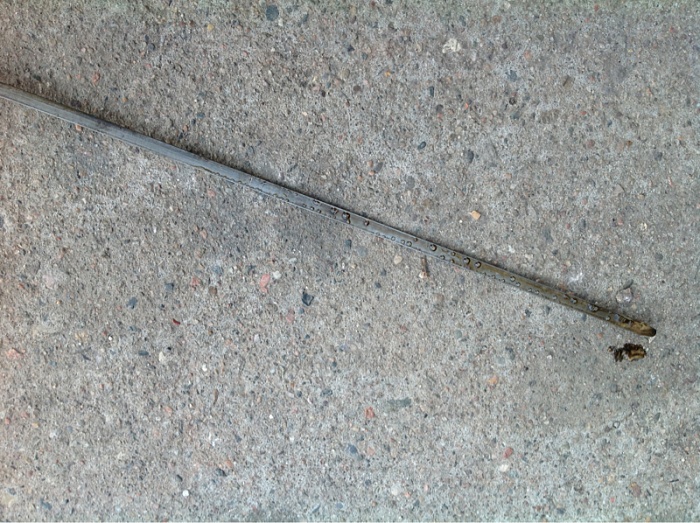

Hey guys I'm working on my buddies xj for him. It's a 1987 with a 4.0. It runs good but it has milky residue on the dipstick as well as condensation and some residue on the oil cap. But when I drained the oil I found no evidence of coolant or residue. I've never done a head gasket so please help me out and tell me if it might be something else cause coolant residue on the dipstick. Thanks guys!
#3
Senior Member
Join Date: Jan 2011
Location: Dalton, MA
Posts: 645
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0 H.O. 180K miles
Do a compression test on all cylinders, could just be condensation on the dipstick but it very well could be a leaking gasket. Also check the exhaust when it's running, if there appears to be more water vapor than there should be that will give you more info.
#5
Seasoned Member
Thread Starter
Join Date: Jan 2011
Location: Canon City CO
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: Renix I6 4.0!
There were no symptoms really besides that after shutoff steam would roll out of the exhaust. It ran and idled the same. He was loosing about a gallon of coolant every two weeks.
#6
Seasoned Member
Thread Starter
Join Date: Jan 2011
Location: Canon City CO
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: Renix I6 4.0!
#7
Seasoned Member
Thread Starter
Join Date: Jan 2011
Location: Canon City CO
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: Renix I6 4.0!
I pulled the valve cover and found nothing that would indicate a big leak in gasket. There wasn't even a drop of coolant. Anyone have any ideas of what else could be an issue?????? I'm doing a compression test tomorrow
Trending Topics
#8
Junior Member
Join Date: Feb 2013
Location: Glendale Az.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: Buzzen half dozen 4.0l
Cast iron heads dont crack gaskets for the most part. If you find that the head gasket isnt cracked I would look real close at the head. I did a head gaskets on a Chevy and found the head was cracked so every intake stroke. It would suck water in.
Run a compression test.
Run a compression test.
#10
CF Veteran
Join Date: Apr 2009
Posts: 4,734
Likes: 0
Received 9 Likes
on
9 Posts
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
Fix all coolant leaks first, starting with the radiator.
I can assure an earlier poster that cast iron heads do crack and head gaskets will blow between the head and the block.
I can assure an earlier poster that cast iron heads do crack and head gaskets will blow between the head and the block.
#11
Seasoned Member
Thread Starter
Join Date: Jan 2011
Location: Canon City CO
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: Renix I6 4.0!
Could I run a compression test with the oil already out or should I top it back off? I really don't think it's a blown head gasket because my only real clue would be the cream on the end of the dipstick which from what I read is common in short trips and in cold moist environments. I'm leaning more towards condensation but I'm still gonna run a compression test.
#13
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Yea, I'd rather do a compression test on an engine that is at least warm. One reason being the end gaps of the rings is smaller. You could even do a second set ot numbers after adding a couple tablespoons of oil to the cyls, a "wet" test. A low one comes up wet, rings, no improvement, valves. (not for moisture, just because you are there)
Has it been sitting? Some amount of moisture might be normal....might check the CCV system. The rear tube to the manifold, and the CCV orifice should be clean and clear. The front 1/2 inch tube to the air box needs to be free as well. I'd bet some of those after-market filter deals some run just get mucked/plugged up inside where you can't see it. Don't really know though.
Has it been sitting? Some amount of moisture might be normal....might check the CCV system. The rear tube to the manifold, and the CCV orifice should be clean and clear. The front 1/2 inch tube to the air box needs to be free as well. I'd bet some of those after-market filter deals some run just get mucked/plugged up inside where you can't see it. Don't really know though.
