FYI part of my overheating problem solved: Temp Gauge

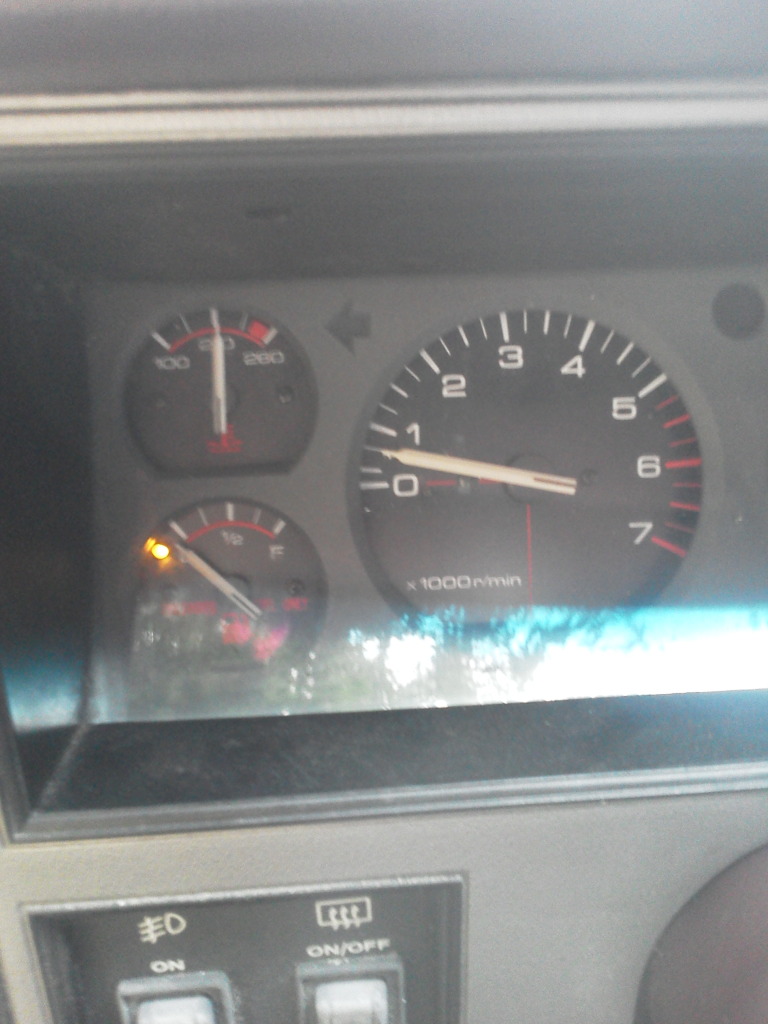

After replacing most of the cooling system on Dad's (now mine) 92 Cherokee it was still "overheating". It would peg itself upon starting, even with the ignition on. All that I read was that if it pegged itself that the gauge was working (people test it by grounding it out which pegs the gauge). So I figured I may have a short to ground. Took the cluster out and looked at the board. Slight corrosion but not bad. Cleaned it with contact cleaner. I noticed the gauge was showing about 210 degrees on the gauge. Hmmm. Took the gauge out of the cluster and looked it over. With it in my hand the gauge was reading about 260. As I looked it over I noticed slight corrosion around the resistor. Sprayed it down with contact cleaner. The Temp dropped. After a couple more hits with contact cleaner I reinstalled it and put everything back together. Now still reading a bit high but she needs to have some flush run through her and the forward radiator sprayed out. Although after wiring the aux fan up and checking to make sure the fan was blowing the right way it took out most of my pinky nail. That's not feeling too warm and fuzzy right now. Ouch. I am an official dumb #%^
Also after it was reinstalled the gauge was bouncing around. I took out the BWD temp sensor and installed an Eklind from Napa and all is working well.
Also after it was reinstalled the gauge was bouncing around. I took out the BWD temp sensor and installed an Eklind from Napa and all is working well.
09-03-2012, 12:48 PM
#3
Member
Thread Starter
Join Date: Aug 2012
Location: Princess Anne Md
Posts: 163
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992 Laredo and 1996 Sport
Model: Cherokee
Engine: 4.0
I would imagine with it completely unplugged from the system it reads the ambient air. the small bit of corrosion was causing faulty readings.
Trending Topics
09-04-2012, 01:23 AM
#9
Senior Member
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
Originally Posted by 88_cherokee
mine has no thermostat and rarely ever gets to 210
09-04-2012, 02:15 AM
#10
CF Veteran
Join Date: Mar 2011
Location: California
Posts: 2,570
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Yep. I don't have a thermostat in right now, flushed the system while dealing with an overheating issue and haven't put one back in yet. I give it a few minutes to warm up to at least 150 before driving. Stays right around 200 - 205. I'll be putting a thermostat back in once it starts to cool off here.
09-04-2012, 09:25 AM
#11
Senior Member
Join Date: Sep 2009
Location: Olean NY where salt eats jeeps
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
Originally Posted by sthon
Yep. I don't have a thermostat in right now, flushed the system while dealing with an overheating issue and haven't put one back in yet. I give it a few minutes to warm up to at least 150 before driving. Stays right around 200 - 205. I'll be putting a thermostat back in once it starts to cool off here.
