fuel problems
I got two problems whit fuel.on my 87 xj
1) my fuel pump stop working a few month ago when I crank my jeep it just stop pumping. Now when I feed it directly to a accessory the pump works. But she won't mark a full tank just empty. The white wire It's wats keep my fuel pump on. Relays are fine
2).I'm getting a strong fuel smell I just dont know what to do. I was told replace the fuel injectors.
1) my fuel pump stop working a few month ago when I crank my jeep it just stop pumping. Now when I feed it directly to a accessory the pump works. But she won't mark a full tank just empty. The white wire It's wats keep my fuel pump on. Relays are fine
2).I'm getting a strong fuel smell I just dont know what to do. I was told replace the fuel injectors.
#2
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
On the inner fender by the air cleaner is a ceramic resistor with orange wires. Check it's connections or just bypass it. Power out the rear of that goes straight to the pump.
Also;
There is a brittle little tube. It comes out of a rubber plug, low on the engine side of the throttle body. It runs back to the firewall, then up to your MAP sensor sort of high up there near center on the firewall. CRUCIAL!! The MAP will tell the ECU to dump fuel with less/no vacuum. Any crack or blockage and it will be pig-rich. (black smoke, fouled black plugs). You can pull the line off the MAP and feel for vacuum with your finger. If it runs!
ALSO Take a really good look at your injectors. The originals are known to leak where the housings come together.
Check out Cruisers stuff found in my signature. Bunch of great stuff there
on your Jeep!
Also;
There is a brittle little tube. It comes out of a rubber plug, low on the engine side of the throttle body. It runs back to the firewall, then up to your MAP sensor sort of high up there near center on the firewall. CRUCIAL!! The MAP will tell the ECU to dump fuel with less/no vacuum. Any crack or blockage and it will be pig-rich. (black smoke, fouled black plugs). You can pull the line off the MAP and feel for vacuum with your finger. If it runs!
ALSO Take a really good look at your injectors. The originals are known to leak where the housings come together.
Check out Cruisers stuff found in my signature. Bunch of great stuff there
on your Jeep!
#3
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

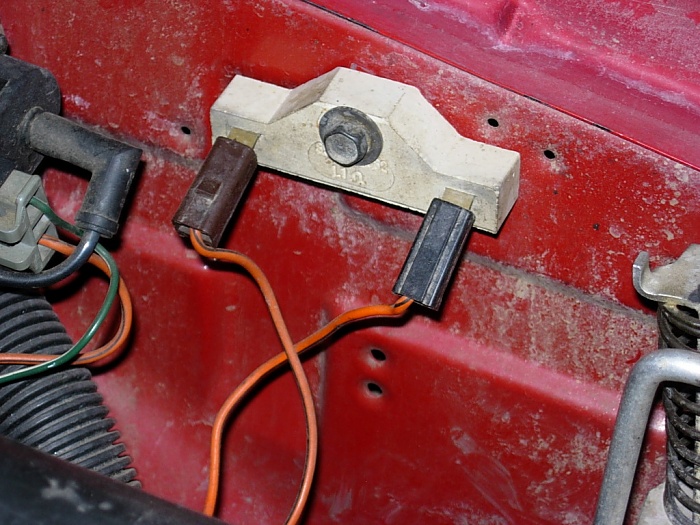

Here's a photo of the fuel pump ballast resistor.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
That's really odd. Are the connectors good and tight?
Trending Topics
#8
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
If that is an 88, and that's on the inner fender near the air cleaner, connect the wires together and throw it towards who ever put it there! (but save it )
Besides sending messages to Alien Invaders, all it does is knock the voltage to the pump down a bit to make it less noisy. Just my .02 anyway.
Besides sending messages to Alien Invaders, all it does is knock the voltage to the pump down a bit to make it less noisy. Just my .02 anyway.
#11
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

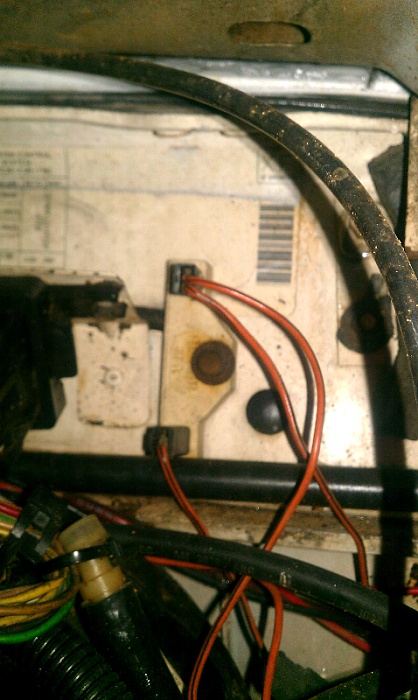

Oh heck, I didn't have the right glasses! (I thought the whole white rectangle was your ..thing).
Yea, likely there are two on the powered side because it can be powered by different circuits. Ours are likely the same, just the wires connect before the resistor.
I think you should see system voltage, 12 to 14, on the powered end, and a few less out the other to the pump. Me, if I had any question I''d just pull the wire to the pump off, and jump it to positive to test it.
Yea, likely there are two on the powered side because it can be powered by different circuits. Ours are likely the same, just the wires connect before the resistor.
I think you should see system voltage, 12 to 14, on the powered end, and a few less out the other to the pump. Me, if I had any question I''d just pull the wire to the pump off, and jump it to positive to test it.
#13
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
You are going to need a meter to deal with that 88. If the pump won't run/no fuel, checking voltage there at that resistor is something I would want to do.
Even the $5 Harbor Freight meter actually works. For a while anyway.
Even the $5 Harbor Freight meter actually works. For a while anyway.
#14
Member
Thread Starter
Join Date: Jul 2011
Location: Puerto Rico
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6
I got it fix. New ballast and relay. New fuel pump. Now I wanna upgrade my fuel injectors. I heard . From srt4 Neon to 5.0 Mustang what about BMW
