Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

front axle not centered

Thread Tools

Search this Thread

Old Oct 8, 2010 | 09:35 AM
  #1
jd2311900's Avatar
Thread Starter
Member

Joined: Sep 2009
Posts: 193
Likes: 0
From: clarkston, MI
Year: 2000
Model: Cherokee
Engine: 4.0L
Default front axle not centered

I just finished my 5in lift, and now my axle is not centered. The axle is shifted 3in to the right. So now the question is will an Alignment fix this or is there something else wrong?

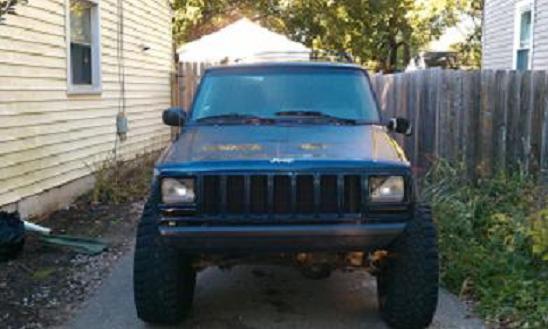

Attached Images
Reply
Old Oct 8, 2010 | 09:36 AM
  #2
BlackBetty01's Avatar
Junior Member

Joined: Oct 2010
Posts: 42
Likes: 0
From: Ohio
Year: 2001
Model: Cherokee
Engine: 4.0
Default

For that much lift your gonna be needing an adjustable track bar to re center the axle....Then an alignment to get everything back to normal
Reply
Old Oct 8, 2010 | 09:37 AM
  #3
mattnwhit's Avatar
Junior Member

Joined: Sep 2010
Posts: 45
Likes: 0
From: Wichita Falls, Tx
Year: 1997
Model: Cherokee
Engine: ATK 4.0L
Default

mine was the same way. check and adjust your drag link
Reply
Old Oct 8, 2010 | 09:55 AM
  #4
TrekkerJmm's Avatar
"CF Moderator"

Joined: Sep 2008
Posts: 3,045
Likes: 3
From: N.J. Shore Area
Year: 1994
Model: Cherokee
Engine: l6 HO
Default

Originally Posted by BlackBetty01
For that much lift your gonna be needing an adjustable track bar to re center the axle....Then an alignment to get everything back to normal
X2 on the adjustable Trac Bar to straighten that out...Tj
You can find some on the "Vendors" For sale section on CF
Reply
Old Oct 8, 2010 | 10:07 AM
  #5
Biceps McRipped's Avatar
Seasoned Member

Joined: Aug 2010
Posts: 274
Likes: 0
From: Maine
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by BlackBetty01
For that much lift your gonna be needing an adjustable track bar to re center the axle....Then an alignment to get everything back to normal


Definitely the trac bar. Even with my 2 inch lift my axle is noticeably off centered.
Reply
Old Oct 8, 2010 | 10:26 AM
  #6
caged's Avatar
CF Veteran

Joined: Nov 2008
Posts: 7,874
Likes: 100
From: Northern Ontario, Canada
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

yup, drag link has nothing to do with that. but you'll want to adjust it to straighten out your steering wheel if it's off center.

get an adjustable track bar, that will bring your axle back to center. if you can afford it, get an HD superflex from rubicon express. it uses a drop bracket and johnny "style" joint, rather than a tie rod end joint or heim joint. it will last longer and flex a lot better.
Reply
Old Oct 8, 2010 | 11:41 AM
  #7
jd2311900's Avatar
Thread Starter
Member

Joined: Sep 2009
Posts: 193
Likes: 0
From: clarkston, MI
Year: 2000
Model: Cherokee
Engine: 4.0L
Default

Thanks everyone thats what i needed to know.
