First repair victories and a cooling question
#1
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
First repair victories and a cooling question
Well I got my first 2 repairs done. Sway bar links changed and a transmission cooler line leak fixed. Got the quick connects gone while I was at it. Feels pretty good too have them done with relatively little problem.
I do have a cooling question though. On the initial warm up my temp gauge will almost reach the white line right before red (235ish?) before cooling back off to 210 where it will pretty well stay. It only does this on the first warm up after the engine has completely cooled. Very consistent on this. Should I be looking at changing the thermostat or is this pretty normal? 1996 cherokee 4.0. All the cooling system is original from what I can tell.
I do have a cooling question though. On the initial warm up my temp gauge will almost reach the white line right before red (235ish?) before cooling back off to 210 where it will pretty well stay. It only does this on the first warm up after the engine has completely cooled. Very consistent on this. Should I be looking at changing the thermostat or is this pretty normal? 1996 cherokee 4.0. All the cooling system is original from what I can tell.
#3
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
What I mean is everything seems to be OEM. No upgraded radiator or extra coolers stuff like that. I am sure some stuff has been changed at some point (but kept OEM or equivalent) but as far as when I'm not sure. Sorry I didn't clarify.
Last edited by frantic29; 09-05-2013 at 04:59 PM.
#5
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Also I am planning on upgrading the whole system at some point but it will be probably next spring unless something drastic happens.
Trending Topics
#8
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

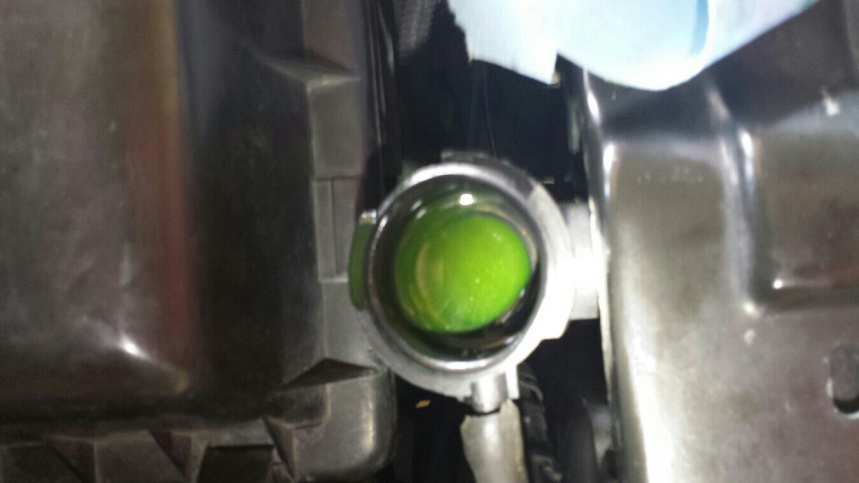

Looks green to me. Couldn't get a good pic into the overflow bottle but this is what I saw in the rad cap. Overflow looks the same.
Last edited by frantic29; 09-05-2013 at 05:25 PM.
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#10
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I scoured over it. No identifying marks I can see. There is a sticker on the bottom of the radiator but I can only see the corner of it. Don't see a way of getting to it without pulling the radiator out. There's probably a way but I don't know of it.
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Factory thermostat 83501426 and a good coolant flush is a good starting point.
#12
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Kind of what I was thinking. Come to think of it I have also never seen the electric fan work either. It doesn't get driven in town much but today I was sitting at a light and it started to creep up. I will test it tomorrow. Right now I think the girlfriend is kind of annoyed. I have spent the last 2 days for the most part working on and researching this thing. Thanks guys. I'll let you know what I figure out tomorrow.
#14
Member
Thread Starter
Join Date: Jan 2012
Location: Topeka, KS
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I know it's an old thread now but I got the thermostat changed out. Fixed the issue. Also found out the wasn't kicking on for high coolant temp. Replaced the sending unit and now all is right in the cooling system world.
#15
Senior Member
Join Date: Aug 2012
Location: 614 Ohio
Posts: 707
Likes: 0
Received 0 Likes
on
0 Posts
Year: 98
Model: Cherokee
Engine: 4.0L
Good to hear. I'm about to do a whole cooling system replacement in the next month or so.
