Fasteners to Hold Transmission Line?

Old Jun 8, 2022 | 04:18 AM
  #1
Rlmx's Avatar
Thread Starter
Seasoned Member

Joined: Oct 2017
Posts: 325
Likes: 15
From: NW OH
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0L L6 OHV 12V
Default Fasteners to Hold Transmission Line?

What is the name (or part #) of the fasteners that hold up the transmission coolant lines?

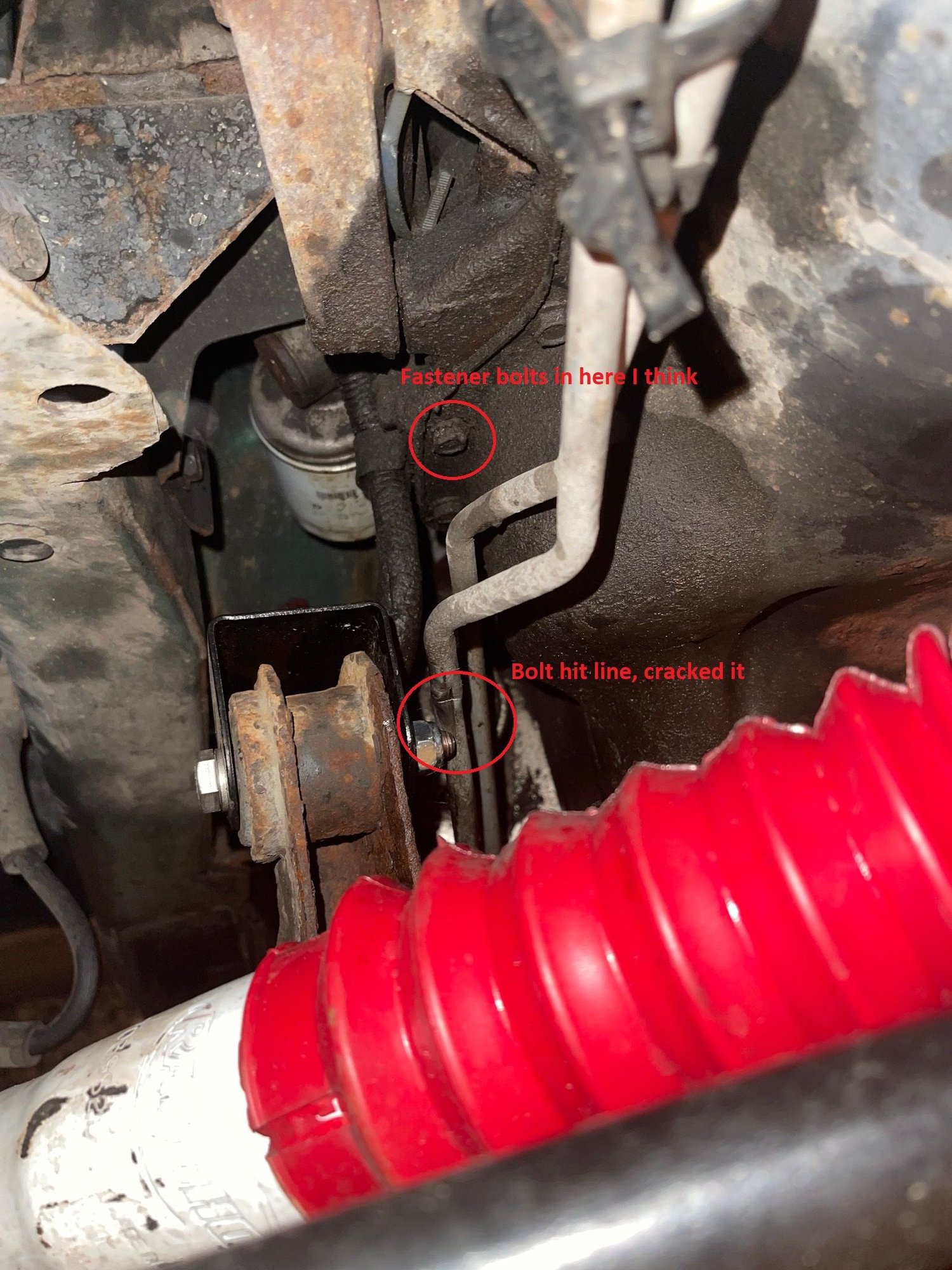

My poor son cannot seem to catch a break. He has a 99' that we are slowly restoring. A garage replaced his transmission coolant lines, but the garage didn't button them up to the engine, they left the lines hanging. A suspension bolt hit a line and cracked it.



Reply
Old Jun 8, 2022 | 10:13 AM
  #2
lawsoncl's Avatar
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2017
Posts: 4,365
Likes: 1,215
Year: 1989
Model: Comanche (MJ)
Engine: 4.0
Default

You'll have to rummage at the hardware store and improvise. I've reshaped these before as replacements.
https://www.homedepot.com/p/Gardner-...1500/100150329

Also rebent one of these as a hanger and wrapped in rubber tape so it doesn't cut the line.
https://www.homedepot.com/p/Oatey-1-...3500/303434697
Reply
Old Jun 8, 2022 | 05:50 PM
  #3
Rlmx's Avatar
Thread Starter
Seasoned Member

Joined: Oct 2017
Posts: 325
Likes: 15
From: NW OH
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0L L6 OHV 12V
Default

That makes sense. Thank you!
​​​​​​​
Originally Posted by lawsoncl
You'll have to rummage at the hardware store and improvise. I've reshaped these before as replacements.
https://www.homedepot.com/p/Gardner-...1500/100150329

Also rebent one of these as a hanger and wrapped in rubber tape so it doesn't cut the line.
https://www.homedepot.com/p/Oatey-1-...3500/303434697
Reply
Old Jun 9, 2022 | 01:45 AM
  #4
awg's Avatar
awg
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2016
Posts: 3,816
Likes: 725
Year: 96
Model: Cherokee (XJ)
Engine: 4.0
Default

You might want to check the bump stops in the front springs too, if they are rotted away, they cannot limit compression in the manner intended
Reply
Old Jun 9, 2022 | 09:28 AM
  #5
lawsoncl's Avatar
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2017
Posts: 4,365
Likes: 1,215
Year: 1989
Model: Comanche (MJ)
Engine: 4.0
Default

Looks like it was the bolt at the back/top of the control arm. I'd check the engine and trans mounts too.
Reply
