Default exhaust/ Tail pipe fix

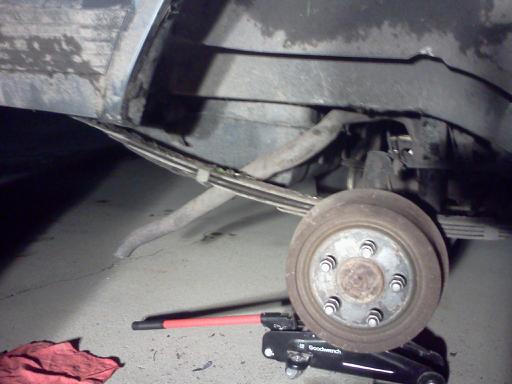

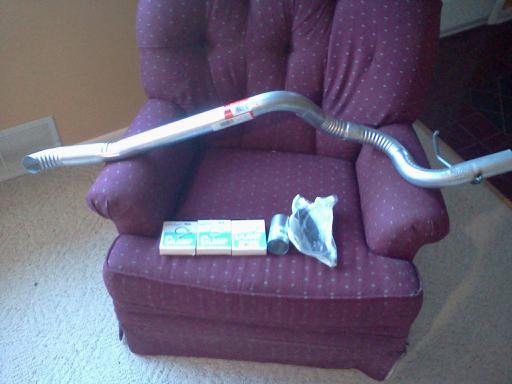

So i messed up the tail pipe. i believe that's the extent of the problem. so i bought a new tail pipe for 27$ and about 17$ in mounting parts and such.

Name:  messseeddd upppppp.jpg
Views: 169
Size:  27.6 KB

Name:  new.jpg
Views: 136
Size:  25.2 KB

ill post another picture when i finally get it mounted and fixed

also i wasn't sure if where to put this. its technically stock so i went with OEM

and any tips or suggestions are always welcome!
Old 08-30-2011, 06:51 PM
  #2
Senior Member

excess650's Avatar

Join Date: Apr 2011
Location: here today gone tomorrow
Posts: 746
Likes: 0
Received 3 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

After the old one is off, snake the new tailpipe in from the rear. I'm guessing that the rear hanger was broken or missing for you to have that little incident.

If the turndown is angled out to the right too far, it will contact the shackle or leaf spring. I cut mine off and added an 18" straight section.

If the muffler is questionable, now is the time to replace it. Any length (stock or shorter) will work 2-1/4" in and out, center inlet, offset outlet.

In the 'burg, or outside?
Old 08-30-2011, 08:17 PM
  #3
Senior Member
Thread Starter

Mendax13's Avatar

Join Date: Jul 2011
Location: New Cumberland, PA
Posts: 516
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by excess650
After the old one is off, snake the new tailpipe in from the rear. I'm guessing that the rear hanger was broken or missing for you to have that little incident.

If the turndown is angled out to the right too far, it will contact the shackle or leaf spring. I cut mine off and added an 18" straight section.

If the muffler is questionable, now is the time to replace it. Any length (stock or shorter) will work 2-1/4" in and out, center inlet, offset outlet.

In the 'burg, or outside?
well we already cut the old one off, the hanger farthest to the rear broke and is pretty much non-existent, (bought a new one) we left the hanger closest to the muffler so it doesn't fall. we got a sleeve to put over both and clamps to clamp it and another clamp to clamp it to the new rear hanger.

sadly the muffler is questionable. but with this setup i believe i would be able to change it pretty easily.

i'm outside the burg. New Cumberland to be exact.
Old 08-31-2011, 06:13 AM
  #4
Senior Member

excess650's Avatar

Join Date: Apr 2011
Location: here today gone tomorrow
Posts: 746
Likes: 0
Received 3 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

If you have the $ do the muffler now and save yourself the aggravation of working on the exhaust again. I bought a welded,stainless Magnaflow for less $ than the lifetime warranty Walker.

I'm outside of Mechanicsburg.
Old 09-01-2011, 03:28 AM
  #5
Senior Member
Thread Starter

Mendax13's Avatar

Join Date: Jul 2011
Location: New Cumberland, PA
Posts: 516
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

something to think about. ill check out the prices and stuff. but if i start getting to crazy ill wanna replace the whole system including headers. which isnt a bad thing . but who has the money these days
