electrical problem or relay
Yesterday my jeep 87 xj was running fine. Ac was running and turn signal and wipers and headlights. Now non of them work but I can turn it on and it runs except al the other parts I mention don't
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Check all the fuses for power in and out with key in run position . Sounds like fuseable link or Ignition switch issue .
Thread Starter
Member
Joined: Jul 2011
Posts: 119
Likes: 0
From: Puerto Rico
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Trending Topics
CF Veteran
Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Besides the switch...off your starter relay there by the battery is a "fan" of about 5 fusible links. Easy enough to just tale a look and see if anything looks burnt there. (Like freedgr mentioned)
Last edited by DFlintstone; Dec 1, 2013 at 07:48 PM. Reason: Easy
Thread Starter
Member
Joined: Jul 2011
Posts: 119
Likes: 0
From: Puerto Rico
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6
As we speak now I'm working on the jeep the cables for the starter relay there in shape.. now I'm gonna check inside the ignition switch
Member
Joined: Nov 2013
Posts: 111
Likes: 0
From: Alaska
Year: 1988
Model: Cherokee
Engine: 4.0L In Line 6

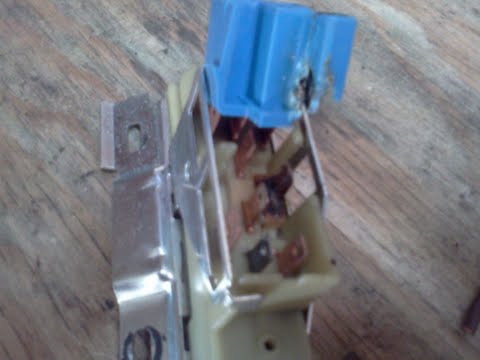

That is what my other 88 looked like when I started having troubles. I found if I wiggled the key, things would come back to life. It also had A/C and all the other extra load. Replaced the switch and connector and it was happy again.
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
If it the switch you will be in the lead for least post to fix ignition switch issues ....under 20 here....https://www.cherokeeforum.com/f2/89-...-issue-183750/
Thread Starter
Member
Joined: Jul 2011
Posts: 119
Likes: 0
From: Puerto Rico
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6
The switch on top of the colum its not burn. Now my headlamps turn on. All the cables look okay. I'm gonna replaced the key cylinder since. It's broken I can turn my jeep whit out the key
CF Veteran
Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I have doubts it's the key. Something to fix anyway though...
The fusible links off the start relay are not "cables". Actually the wire in them is sized smaller then the rest. That's the idea, they will fry before the rest of "whatever" circuit. It might be the insulation on those might be different as well. (fire resistant)
Not that it's likely, but it IS easy to to just take a look. There might be five of them. Off a large stud on the start relay. See than they look and feel OK.
My 90 may have had a problem there...The original owner or someone, a shop did something to it "for" my mom while I was out of town.....
Not that it's likely, but it IS easy to to just take a look!
The fusible links off the start relay are not "cables". Actually the wire in them is sized smaller then the rest. That's the idea, they will fry before the rest of "whatever" circuit. It might be the insulation on those might be different as well. (fire resistant)
Not that it's likely, but it IS easy to to just take a look. There might be five of them. Off a large stud on the start relay. See than they look and feel OK.
My 90 may have had a problem there...The original owner or someone, a shop did something to it "for" my mom while I was out of town.....
Not that it's likely, but it IS easy to to just take a look!
