Electrical problem, not sure where to start
#1
Newbie
Thread Starter
Join Date: Dec 2014
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Electrical problem, not sure where to start
Hi all, new here and to Jeeps, got my xj about a year ago. It's a 99 with the 4.0 and an auto trans.
I am having a problem that is happening more and more frequently, where I turn the key to the "on" position, but the gauges don't turn on, no warning lights or anything, fuel pump doesn't prime, but the radio and lights work. If I try to start, it just cranks but never gets any fuel.
I believe there is some loose wiring or something because if I smack the small dash piece to the right of the glovebox, or if I open the passenger door and slam it shut really hard, suddenly the gauges wake up and it starts just fine.
Around the same time this started happening, my keyless locks stopped working. I'm not sure if it is an oem keyless system or not, I have been using a oem jeep remote, but I looked up behind the dome light and there is no circuit board there. Not sure if this is related to the jeep not starting, seems like an interesting coincidence.
Sorry for the super long post, just not sure where to start with this, any help is greatly appreciated!
I am having a problem that is happening more and more frequently, where I turn the key to the "on" position, but the gauges don't turn on, no warning lights or anything, fuel pump doesn't prime, but the radio and lights work. If I try to start, it just cranks but never gets any fuel.
I believe there is some loose wiring or something because if I smack the small dash piece to the right of the glovebox, or if I open the passenger door and slam it shut really hard, suddenly the gauges wake up and it starts just fine.
Around the same time this started happening, my keyless locks stopped working. I'm not sure if it is an oem keyless system or not, I have been using a oem jeep remote, but I looked up behind the dome light and there is no circuit board there. Not sure if this is related to the jeep not starting, seems like an interesting coincidence.
Sorry for the super long post, just not sure where to start with this, any help is greatly appreciated!
#2
Member
Join Date: Dec 2014
Location: Sheridan, IL
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I've got a 98 so your electrical should be identical to mine. On the passenger side under the dash closest to the door you'll find a fuse panel. I'd check for loose fuses. Thats what it sounds like to me. If all those are ok, there is another fuse panel under the hood on the passenger side, check those arent loose, although I dont think any of those have anything to do with the interior electrical but wouldnt hurt to check anyway.
#3
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II

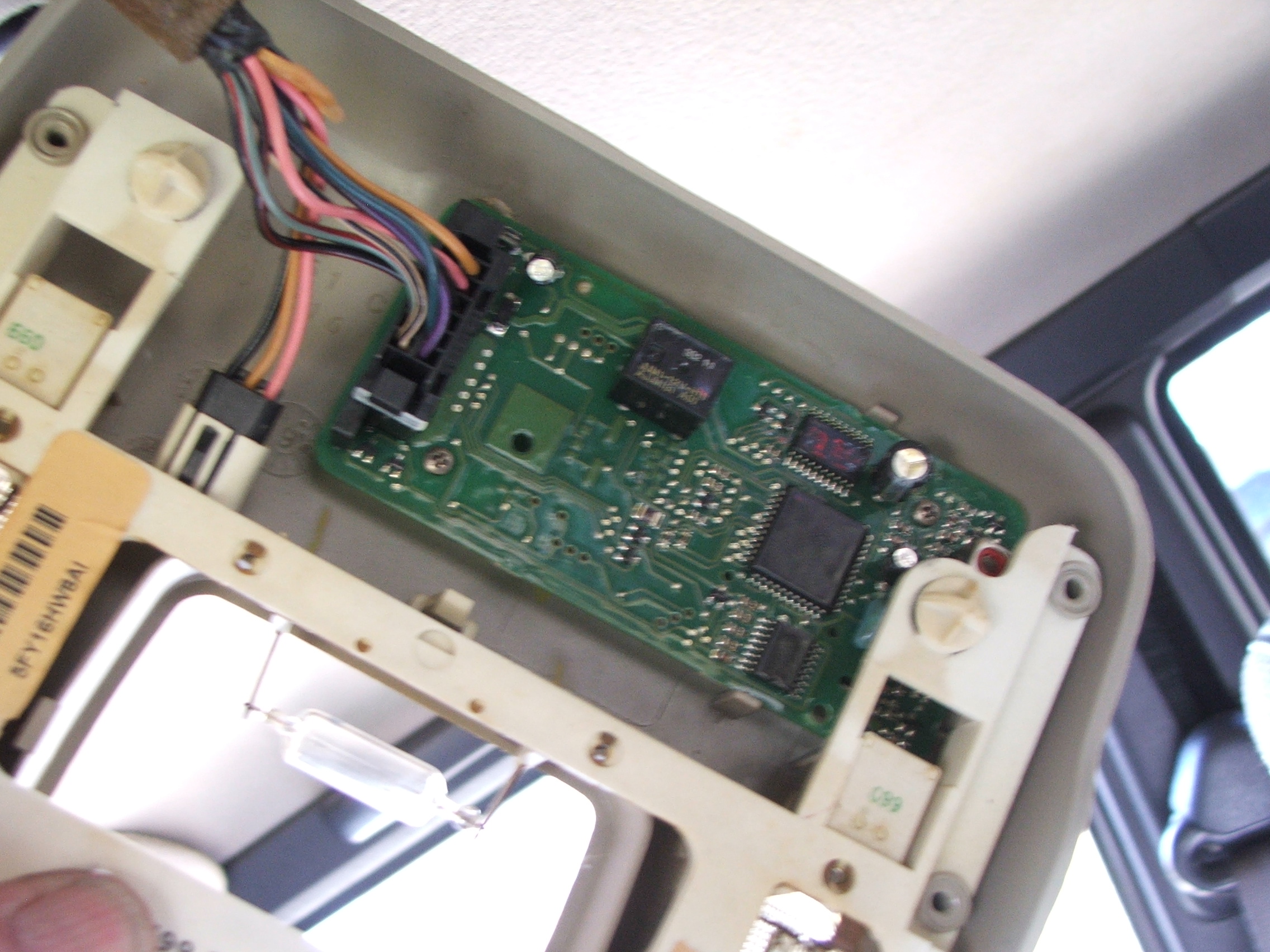

OEM remote = OEM RKE. When you said "behind" the dome light what exactly do you mean? The RKE module is IN the dome light, unless someone moved it...
The RKE module is part of the CCD bus which the PCM uses to communicate with the gauge cluster and other fun stuff. If the CCD bus is corrupted it's very possible it will refuse to work.
The RKE module is part of the CCD bus which the PCM uses to communicate with the gauge cluster and other fun stuff. If the CCD bus is corrupted it's very possible it will refuse to work.
#4
Newbie
Thread Starter
Join Date: Dec 2014
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I've got a 98 so your electrical should be identical to mine. On the passenger side under the dash closest to the door you'll find a fuse panel. I'd check for loose fuses. Thats what it sounds like to me. If all those are ok, there is another fuse panel under the hood on the passenger side, check those arent loose, although I dont think any of those have anything to do with the interior electrical but wouldnt hurt to check anyway.
How would I check to see if the CCD bus is corrupted?
#6
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Everyone on the Forum hates me so I won't show you how to fix it. So I'll wait and see if you can fix it. And if you can't fix it, you can come crawling to me and I'll show you how.
Har Har
Har Har
Trending Topics
#10
Newbie
Thread Starter
Join Date: Dec 2014
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#13
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
You may have a loose/bad connection to the instrument cluster causing the proble. By smacking the dash it brings things back to life would lead to thinking this.
You can check the CCD Bus to find out.
Review the CCD Bus schematic below. It shows the Data Link Connector and the various modules connected to the bus.
Do this test:
Remove the negative (-) battery post connector.
Using a digital Ohmmeter, set to 200 Ohms, read between DLC pin cavities 3 and 11. You should see 60 Ohms. If you see 120 Ohms, smack the dash and see if it goes to 60 Ohms. If you see 60 Ohms smack it again to see if it changes. If you see the resistance change by smacking the dash it is probably the instrument cluster connector C2, CCD Bus connectors (+) and/or (-).
If this test is inconclusive, reconnect the battery and check the voltages at the DLC.
Turn the ignition switch to ON, without starting the engine.
Using a digital Voltmeter set to 20 VDC, probe DLC pin cavity 3 (+) probe and pin cavity 4 and/or 5 with (-) probe. The voltage should be around 2.49 Volts. Repeat the test using pin cavity 11. THe voltage should be a bit higher.
Note the volltage tolerances on the schematic. If the voltages are out of range, smack the dash.
If the voltages stay out of range there could be a bad module on the CCD Bus.
The fix for the instrument cluster is to remove it and check the pin cavities in the connector to your right. That's connector C2. Try cleaning the pin cavities and reinstalling the instrument cluster and trying it again. If it still fails, Chrysler has a TSB kit that replaces that connector.
Also, consider what Rcrivolio said. Fuse #9 in the Junction Block powers the instrument cluster.
You can check the CCD Bus to find out.
Review the CCD Bus schematic below. It shows the Data Link Connector and the various modules connected to the bus.
Do this test:
Remove the negative (-) battery post connector.
Using a digital Ohmmeter, set to 200 Ohms, read between DLC pin cavities 3 and 11. You should see 60 Ohms. If you see 120 Ohms, smack the dash and see if it goes to 60 Ohms. If you see 60 Ohms smack it again to see if it changes. If you see the resistance change by smacking the dash it is probably the instrument cluster connector C2, CCD Bus connectors (+) and/or (-).
If this test is inconclusive, reconnect the battery and check the voltages at the DLC.
Turn the ignition switch to ON, without starting the engine.
Using a digital Voltmeter set to 20 VDC, probe DLC pin cavity 3 (+) probe and pin cavity 4 and/or 5 with (-) probe. The voltage should be around 2.49 Volts. Repeat the test using pin cavity 11. THe voltage should be a bit higher.
Note the volltage tolerances on the schematic. If the voltages are out of range, smack the dash.
If the voltages stay out of range there could be a bad module on the CCD Bus.
The fix for the instrument cluster is to remove it and check the pin cavities in the connector to your right. That's connector C2. Try cleaning the pin cavities and reinstalling the instrument cluster and trying it again. If it still fails, Chrysler has a TSB kit that replaces that connector.
Also, consider what Rcrivolio said. Fuse #9 in the Junction Block powers the instrument cluster.
Last edited by CCKen; 12-30-2014 at 03:53 PM.
#15
Newbie
Thread Starter
Join Date: Dec 2014
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Thanks for the help everyone. Just to provide some closure to this thread, it turns out the problem was a loose connector behind the panel under the steering wheel. Wiggling it would turn the gauges on and off. It has been secured and all is well so far. Now to find a working RKE..
