Default Electric Fan Shroud

I have a 93 2.5L with an electric fan from a 98 2.5L instead of the stock mechanical fan. However, it's currently mounted to a sheet metal looking thing that just has holes cut for mounting and a hole in the middle where the fan blows. I think it's restricting my airflow pretty significantly. Does anyone have any good shroud suggestions? I have no clue what alternatives there are for the fan. Will the stock one work?
Reply
Old Aug 18, 2012 | 11:25 PM
  #2
Radi's Avatar
CF Veteran

Joined: Apr 2012
Posts: 5,302
Likes: 23
From: Wisconsin
Model: Cherokee
Default

Picture? Is there a gap between the back of the radiator and the sheet metal, enough for air to flow? Or is it pressed up there tight?
Reply
Old Aug 19, 2012 | 11:09 AM
  #3
Phil_XJ's Avatar
Thread Starter
Newbie

Joined: Apr 2012
Posts: 27
Likes: 0
From: Arizona
Year: 1993
Model: Cherokee
Engine: 2.5L
Default

It's right up tight against it. Her is a picture, I'll try to take a better one when I get home. Do you this if I just put a spacer or something it would be a lot better?
Attached Thumbnails Electric Fan Shroud-image-3577923330.jpg
Reply
Old Aug 19, 2012 | 11:30 AM
  #4
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

why not just put factory setup back on ?
Reply
Old Aug 19, 2012 | 02:46 PM
  #5
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Yep, the factory belt fan will pull way more air than the factory efan. The belt fan does need to be properly shrouded and bolted to a good fan clutch.
Reply
Old Aug 19, 2012 | 04:12 PM
  #6
Phil_XJ's Avatar
Thread Starter
Newbie

Joined: Apr 2012
Posts: 27
Likes: 0
From: Arizona
Year: 1993
Model: Cherokee
Engine: 2.5L
Default

Being a 2.5L, every horse counts. And I'd like to be able to have it on a switch.
Reply
Old Aug 19, 2012 | 05:01 PM
  #7
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

is it running hot
Reply
Old Aug 19, 2012 | 07:37 PM
  #8
Phil_XJ's Avatar
Thread Starter
Newbie

Joined: Apr 2012
Posts: 27
Likes: 0
From: Arizona
Year: 1993
Model: Cherokee
Engine: 2.5L
Default

Yes. Not overheating but close to it.
Reply
Old Sep 1, 2012 | 10:32 PM
  #9
Phil_XJ's Avatar
Thread Starter
Newbie

Joined: Apr 2012
Posts: 27
Likes: 0
From: Arizona
Year: 1993
Model: Cherokee
Engine: 2.5L
Default

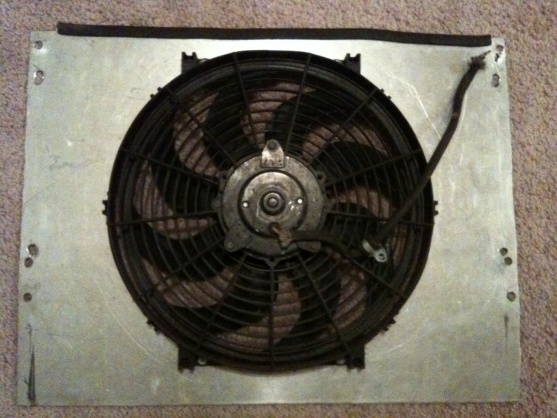

Didn't get a whole lot of response so I just decided to go with the taurus swap. Here is the old fan though so you can see how bad the setup was. Fan is small, and came off a 98 2.5L XJ. Anyway, problem solved!
Attached Thumbnails Electric Fan Shroud-photo.jpg
Reply
Old Sep 2, 2012 | 12:56 AM
  #10
Radi's Avatar
CF Veteran

Joined: Apr 2012
Posts: 5,302
Likes: 23
From: Wisconsin
Model: Cherokee
Default

That second pic really does look like it's blocking a lot of the radiator.
Reply
Old Sep 2, 2012 | 01:37 AM
  #11
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Neat looken fan though. Gave me an idea. Been having issues finding brushes for the Sweedish Perm magnet vacuum motor I've been using for my hydro. (can get'm, just spendy). Wonder what kind of service I could expect from a fan motor like that.
Reply
Old Sep 2, 2012 | 02:06 AM
  #12
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by Radi
That second pic really does look like it's blocking a lot of the radiator.
seeing how fan was mounted flush to rad every where you see silver was where no air flow was getting thru
Reply
