Drive belt 1990 xj
#1
Seasoned Member
Thread Starter
Join Date: Oct 2013
Location: Los Angeles Ca.
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

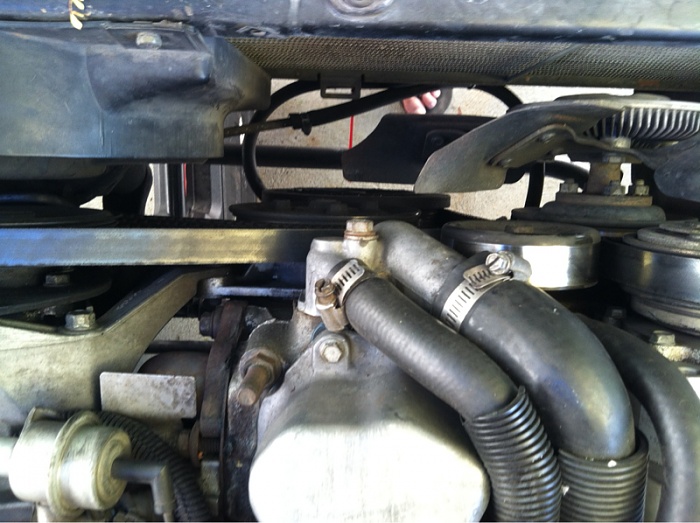

What's the best way to take the serpentine/ drive belt off? There is no tensioner just an idler pulley. I'm replacing my WP. Thermostat hoses ect.. I've got a Haynes book but it's not very specific. Looks like there's a bolt on the power steering is this what I've got to loosen once I've got the bracket bolts off .
Last edited by 7ate9; 08-04-2014 at 10:01 PM.
#2
CF Veteran
Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
What's the best way to take the serpentine/ drive belt off?
There is no tensioner just an idler pulley.
I'm replacing my WP. Thermostat hoses ect..
I've got a Haynes book but it's not very specific.
Looks like there's on the power steering is this what I've got to loosen once I've got the bracket bolts off .
There is no tensioner just an idler pulley.
I'm replacing my WP. Thermostat hoses ect..
I've got a Haynes book but it's not very specific.
Looks like there's on the power steering is this what I've got to loosen once I've got the bracket bolts off .
Edit: also always post your jeeps year and engine, trim etc so we can better help you. And as for the PS pump bolt, you turn it so the idler pulley raises and loosens the belt
#4
Seasoned Member
Thread Starter
Join Date: Oct 2013
Location: Los Angeles Ca.
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Looks like I have to loosen several bolts on the power steering bracket in order to get it to pivot?
Can it be done with just loosening the top bolt?
Can it be done with just loosening the top bolt?
#5
Senior Member
Join Date: Mar 2013
Location: Texas
Posts: 691
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
It's easier to get at the tensioner bolt on the lower part of the power steering bracket if you remove the air box.
The pulley on the power steering bracket is not an idler, it turns the power steering pump.
I don't believe I have ever loosened or removed the idler pulley to loosen the belt.
The pulley on the power steering bracket is not an idler, it turns the power steering pump.
I don't believe I have ever loosened or removed the idler pulley to loosen the belt.
#6
Senior Member
Join Date: Mar 2013
Location: Texas
Posts: 691
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
You are correct. There are two bolts that you loosen from the rear with an end wrench . 1/2 inch if I had to guess. Also from the front loosen the pivot screw for the tensioner bolt and I believe one other bolt but I can't swear to that without looking at it.
Edit: This is the setup for the '93. I cannot swear that the '90 is the same.
Edit: This is the setup for the '93. I cannot swear that the '90 is the same.
Last edited by Pelican; 08-04-2014 at 10:22 PM.
Trending Topics
#8
And if it hasn't been done in a loooong time ... You may need to tap the end of the adjustment bolt to get it to move. Spray it with your favourite penetrant prior to and afterwards to make life easier the next time.
#9
CF Veteran
Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
That's why we need the year lol. Love how easy the newer models are. Ever with the tight space the idler pulley doesn't give issue to loosen up.
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

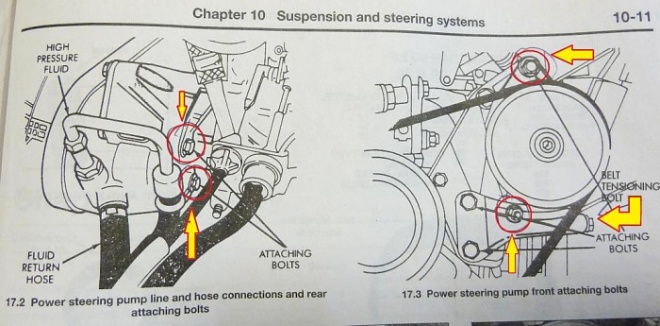

Here's another photo/diagram.
#11
CF Veteran
Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
I'm curious. Did you already pull the fan shroud from around you mechanical fan or do you not have one? If you don't have one I would suggest that you add that to your parts list when you get you new water pump. Your engine will run cooler with it.
#12
Seasoned Member
Thread Starter
Join Date: Oct 2013
Location: Los Angeles Ca.
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Yep already pulled the fan shroud working on the water pump pulley now.
Q can you get the lower radiator hose with a spring inside to keep the hose from collapsing? Part #? 1990 xj 4d I6 aw4 danA 35 w/ 242tc
Also I need a 195* thermostat is this correct?
Anything else any more tip much appreciated thanks everyone for the help I'm getting.
Temp outside is 95 and all I have is an umbrella hahaa
Q can you get the lower radiator hose with a spring inside to keep the hose from collapsing? Part #? 1990 xj 4d I6 aw4 danA 35 w/ 242tc
Also I need a 195* thermostat is this correct?
Anything else any more tip much appreciated thanks everyone for the help I'm getting.
Temp outside is 95 and all I have is an umbrella hahaa
#13
Senior Member
Join Date: Mar 2013
Location: Texas
Posts: 691
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
Yes, 195* thermostat, preferably OEM unit from the dealer or Stant Superstat (my opinion). None of the fail safe, fail open or other specialty units.
I've always just swapped the spring into the new hose, which supposes of course that you have an old hose with a spring. I think I saw a comment in the forum recently about hoses with springs being available from the dealer although I thought they no longer came that way. Perhaps someone will chime in.
I've always just swapped the spring into the new hose, which supposes of course that you have an old hose with a spring. I think I saw a comment in the forum recently about hoses with springs being available from the dealer although I thought they no longer came that way. Perhaps someone will chime in.
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
You don't need the spring. It was only there to facilitate filling the cooling system on the assembly line using vacuum or pressure..........
#15
Seasoned Member
Thread Starter
Join Date: Oct 2013
Location: Los Angeles Ca.
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Well I made some progress today in the heat :/
Pulled everything off and found out thermostat is a 180* made by motorad) I'm assuming it would run at 210 *now all the time with a 195* ??
I got the superstant part # 45359 195*f/90*c
There was a lot of excess RTV inside the thermostat housing too.
Why would someone put a 180 in there ?
Pulled everything off and found out thermostat is a 180* made by motorad) I'm assuming it would run at 210 *now all the time with a 195* ??
I got the superstant part # 45359 195*f/90*c
There was a lot of excess RTV inside the thermostat housing too.
Why would someone put a 180 in there ?
