this a d35?

Thread Tools

Search this Thread

Old 06-21-2012, 02:07 AM
  #1
Junior Member
Thread Starter

Cameron770's Avatar

Join Date: Feb 2012
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee

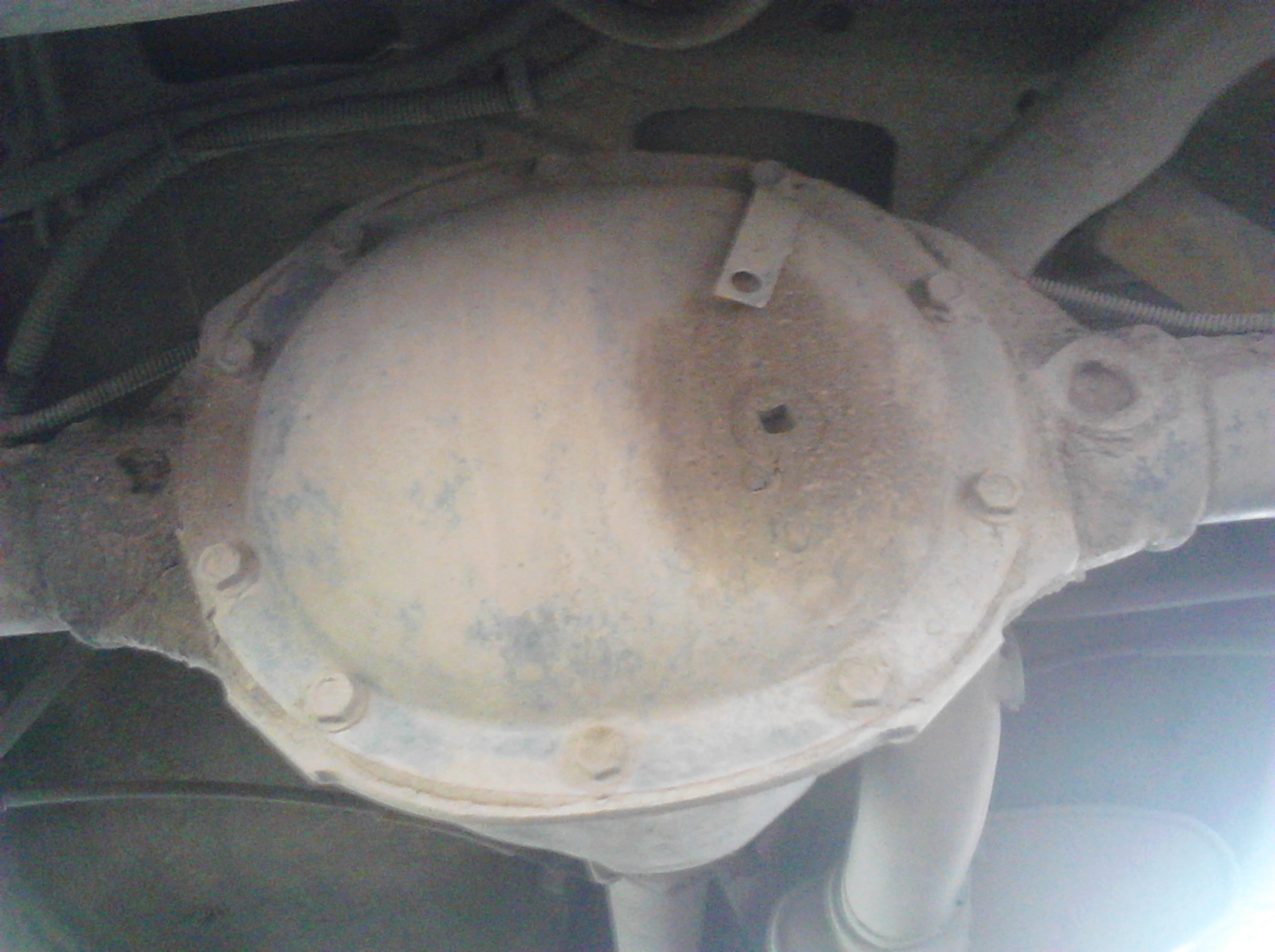

Default this a d35?

its on my 87 waggy. Seems pretty stout and I know it has been rebuilt within the last year.
Name:  IMG_20120609_170509.jpg
Views: 41
Size:  605.5 KB
Old 06-21-2012, 02:12 AM
  #2
CF Veteran

PNWjeeper's Avatar

Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Id say a 8.25 with the long flat top and bottom. But I'm no expert by any means.
Old 06-21-2012, 02:20 AM
  #3
CF Veteran

mrfajita's Avatar

Join Date: May 2010
Location: Fort Collins, CO
Posts: 3,405
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Default

An 87 would not come with an 8.25 and thats definitely a d35. I think its a non c clipped one though by the year and the screw in fill plug. So its slightly less worse than a regular 35
Old 06-21-2012, 04:17 AM
  #4
Senior Member

XJUSMC's Avatar

Join Date: Dec 2010
Location: Wekiva, FL
Posts: 888
Likes: 0
Received 2 Likes on 2 Posts
Year: 99 sport
Model: Cherokee
Engine: 4.0 i6
Default

it is a d35. for sure.
Old 06-21-2012, 05:37 AM
  #5
Junior Member

w-stev29's Avatar

Join Date: Feb 2011
Location: Near Wilmington, NC
Posts: 49
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

D35
Old 06-21-2012, 07:59 AM
  #6
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,874
Received 94 Likes on 85 Posts
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

it is in fact a d35 non c-clip.

too bad you didn't have the d44, the only other stock axle available in 87.
Old 06-21-2012, 08:54 AM
  #7
CF Veteran

Donnie_K's Avatar

Join Date: Jun 2009
Location: Columbus, Ohio
Posts: 2,173
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

Originally Posted by PNWjeeper
Id say a 8.25 with the long flat top and bottom. But I'm no expert by any means.
your monitor out of focus? there's no flat top or bottom on that
Old 06-21-2012, 09:04 AM
  #8
Wheel, break, fix, repeat

Elexwiz's Avatar

Join Date: Dec 2011
Location: Chesapeake, VA
Posts: 205
Likes: 0
Received 0 Likes on 0 Posts
Year: 1987
Model: Cherokee
Engine: AMC I6 4.0
Default

Originally Posted by Donnie_K
your monitor out of focus? there's no flat top or bottom on that
Old 06-21-2012, 09:56 AM
  #9
CF Veteran

PNWjeeper's Avatar

Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Donnie_K
your monitor out of focus? there's no flat top or bottom on that
lookin at it on my iPod its a little pic, plus as i said im not an expert by any means
Old 07-16-2012, 03:33 AM
  #10
Junior Member
Thread Starter

Cameron770's Avatar

Join Date: Feb 2012
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

so is it usual for this rearend to have lsd? jacked up the rear spun driver side tire passenger side spun the opposite way.
Old 07-16-2012, 05:46 AM
  #11
Seasoned Member

cookrw's Avatar

Join Date: Feb 2012
Location: Oxford, OH
Posts: 369
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Cameron770
so is it usual for this rearend to have lsd? jacked up the rear spun driver side tire passenger side spun the opposite way.
That means its an open diff.
Old 07-16-2012, 10:21 PM
  #12
Senior Member

sam24th's Avatar

Join Date: Aug 2010
Location: NC/SC
Posts: 1,012
Likes: 0
Received 1 Like on 1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Yup thats an open diff. Its also a non c-clip D35 axle as many have said.
