Cooling system maintenance my way
#1
CF Veteran
Thread Starter
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Cooling system maintenance my way

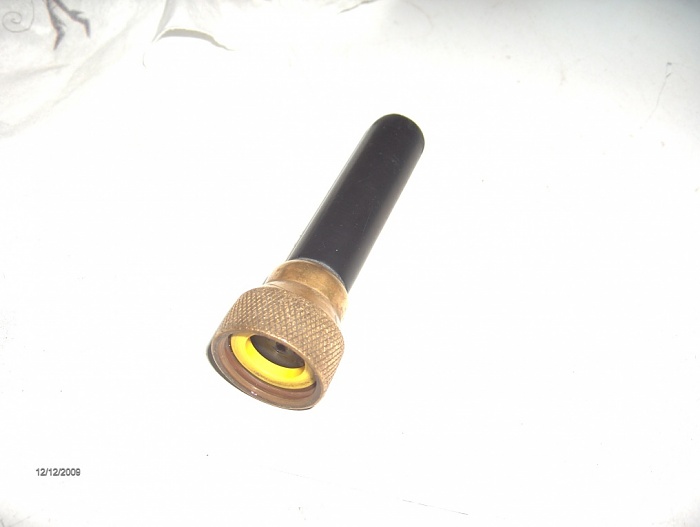

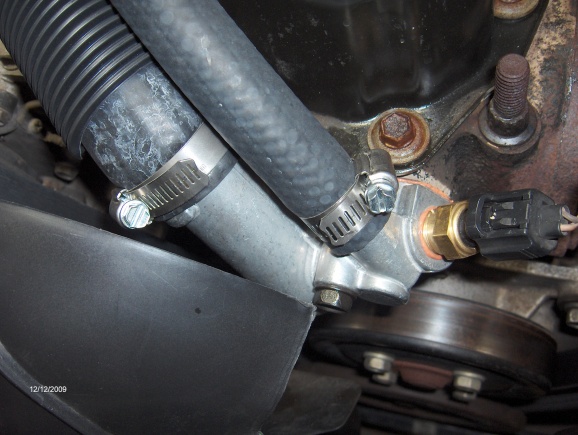

This afternoon I replaced top and bottom rad hoses, heater hoses, t-stat, t-stat housing, coolant sensor and the serpentine belt. I removed the old bottom rad hose at the pump which quickly dumps coolant. Then I removed the old top rad hose and the old top heater hose, both at the t-stat housing. Using my flex nozzle attached to the garden hose, I squirted water into the old top rad hose thus flushing the rad out through the old bottom rad hose. I then stuck the nozzle into the old heater hose and flushed the heater core out through the water pump. Last but not least, I flushed the cylinder head and block out the water pump by placing the nozzle on the heater hose nipple on the t-stat housing. A little compressed shop air blew most of the remaining clear water out of the rad, heater core and block.
Replaced the stock 195F t-stat with a 180F Stant Super Stat. Heater is warming up the cabin quicker and that's a pleasant surprise. Wifey and I drove around for little over an hour, looking at residential Xmas lights, and the ScanGauge floated from 181F to 188F the whole time driving slow, stop-n-go. Ambient temp was low/mid 60s, as we hit 70 today.
Replaced the stock 195F t-stat with a 180F Stant Super Stat. Heater is warming up the cabin quicker and that's a pleasant surprise. Wifey and I drove around for little over an hour, looking at residential Xmas lights, and the ScanGauge floated from 181F to 188F the whole time driving slow, stop-n-go. Ambient temp was low/mid 60s, as we hit 70 today.
#3
Now put the correct t-stat back in. The OBD2 sysem will say in open loop mode if the engine doesn't reach normal operating temperature...and you'll pissing gas out the tail pipe.
#6
CF Veteran
Thread Starter
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Apparently there's some confusion about open/closed loop engine emissions/performance management. Going to "closed loop" has virtually nothing to do with coolant temp but rather O2 sensor temp. There are 3 main components to "the loop"......1. the engine, 2. the computer, 3. the O2 sensor(s). O2 sensors must reach several hundred degrees F before they begin to function. When the engine is started cold, the system is in "open loop" with only the engine and computer functioning. Heated O2 sensors (ones with multiple wires) "light off" within a few seconds (less than a minute) of the engine starting and once they are functioning the system is in "closed loop". The computer is looking for, and striving to maintain, a 14.7:1 air to fuel ratio, not 195F coolant temp.

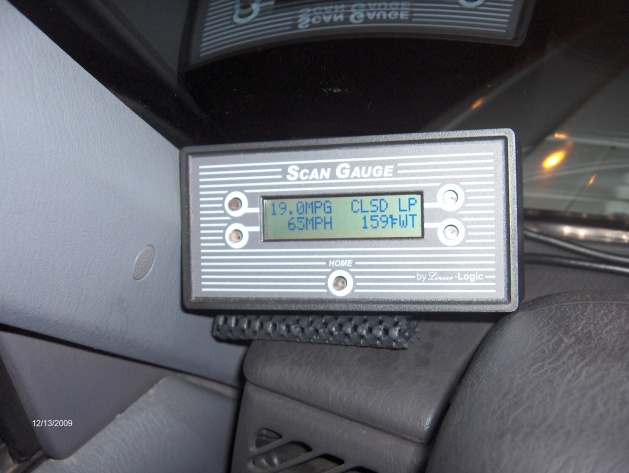

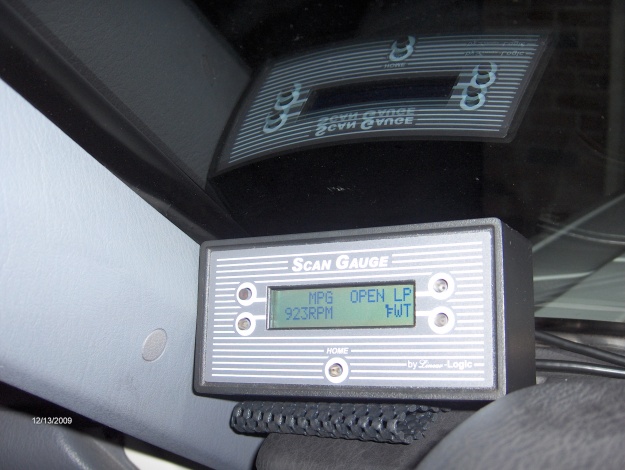

My ScanGauge displays both open and closed loop. Here lately, with A.M. temps in the low/mid 20s, you can see the gauge display go from open to closed loop within 30-45 seconds of start up however, the coolant temp has risen only a few degrees during that time. Best I can tell, the digital real time MPG numbers displayed on the ScanGauge are the same as when the 195F t-stat was in. Works for me.........the 180F stays.
My ScanGauge displays both open and closed loop. Here lately, with A.M. temps in the low/mid 20s, you can see the gauge display go from open to closed loop within 30-45 seconds of start up however, the coolant temp has risen only a few degrees during that time. Best I can tell, the digital real time MPG numbers displayed on the ScanGauge are the same as when the 195F t-stat was in. Works for me.........the 180F stays.
#7
You are misinformed.
IDLE MODE
When the engine is at operating temperature, this
is a Closed Loop mode. At idle speed, the powertrain
control module (PCM) receives inputs from:
† Air conditioning select signal (if equipped)
† Air conditioning request signal (if equipped)
† Battery voltage
† Crankshaft position sensor
† Engine coolant temperature sensor
† Extended idle switch (4.0L engine with police
package only)
† Intake manifold air temperature sensor
† Manifold absolute pressure (MAP) sensor
† Throttle position sensor (TPS)
† Camshaft position sensor signal (in the distributor)
† Battery voltage
† Park/neutral switch (gear indicator signal—auto.
trans. only)
† Oxygen sensors
† Power steering pressure switch (2.5L engine
only)
Based on these inputs, the following occurs:
† Voltage is applied to the fuel injectors with the
ASD relay via the PCM. The PCM will then control
injection sequence and injector pulse width by turning
the ground circuit to each individual injector on
and off.
† The PCM monitors the O2S sensor input and
adjusts air-fuel ratio by varying injector pulse width.
It also adjusts engine idle speed through the idle air
control (IAC) motor.
When the engine is at operating temperature, this
is a Closed Loop mode. At idle speed, the powertrain
control module (PCM) receives inputs from:
† Air conditioning select signal (if equipped)
† Air conditioning request signal (if equipped)
† Battery voltage
† Crankshaft position sensor
† Engine coolant temperature sensor
† Extended idle switch (4.0L engine with police
package only)
† Intake manifold air temperature sensor
† Manifold absolute pressure (MAP) sensor
† Throttle position sensor (TPS)
† Camshaft position sensor signal (in the distributor)
† Battery voltage
† Park/neutral switch (gear indicator signal—auto.
trans. only)
† Oxygen sensors
† Power steering pressure switch (2.5L engine
only)
Based on these inputs, the following occurs:
† Voltage is applied to the fuel injectors with the
ASD relay via the PCM. The PCM will then control
injection sequence and injector pulse width by turning
the ground circuit to each individual injector on
and off.
† The PCM monitors the O2S sensor input and
adjusts air-fuel ratio by varying injector pulse width.
It also adjusts engine idle speed through the idle air
control (IAC) motor.
CRUISE MODE
When the engine is at operating temperature, this
is a Closed Loop mode. At cruising speed, the powertrain
control module (PCM) receives inputs from:
† Air conditioning select signal (if equipped)
† Air conditioning request signal (if equipped)
† Battery voltage
† Engine coolant temperature sensor
† Crankshaft position sensor
† Intake manifold air temperature sensor
† Manifold absolute pressure (MAP) sensor
† Throttle position sensor (TPS)
† Camshaft position sensor signal (in the distributor)
† Park/neutral switch (gear indicator signal—auto.
trans. only)
† Oxygen (O2S) sensors
Based on these inputs, the following occurs:
14 - 26 FUEL SYSTEM XJ
DESCRIPTION AND OPERATION (Continued)
† Voltage is applied to the fuel injectors with the
ASD relay via the PCM. The PCM will then adjust
the injector pulse width by turning the ground circuit
to each individual injector on and off.
† The PCM monitors the O2S sensor input and
adjusts air-fuel ratio. It also adjusts engine idle
speed through the idle air control (IAC) motor.† The PCM adjusts ignition timing by turning the
ground path to the coil on and off.
† The PCM operates the A/C compressor clutch
through the clutch relay. This happens if A/C has
been selected by the vehicle operator and requested
by the A/C thermostat.
When the engine is at operating temperature, this
is a Closed Loop mode. At cruising speed, the powertrain
control module (PCM) receives inputs from:
† Air conditioning select signal (if equipped)
† Air conditioning request signal (if equipped)
† Battery voltage
† Engine coolant temperature sensor
† Crankshaft position sensor
† Intake manifold air temperature sensor
† Manifold absolute pressure (MAP) sensor
† Throttle position sensor (TPS)
† Camshaft position sensor signal (in the distributor)
† Park/neutral switch (gear indicator signal—auto.
trans. only)
† Oxygen (O2S) sensors
Based on these inputs, the following occurs:
14 - 26 FUEL SYSTEM XJ
DESCRIPTION AND OPERATION (Continued)
† Voltage is applied to the fuel injectors with the
ASD relay via the PCM. The PCM will then adjust
the injector pulse width by turning the ground circuit
to each individual injector on and off.
† The PCM monitors the O2S sensor input and
adjusts air-fuel ratio. It also adjusts engine idle
speed through the idle air control (IAC) motor.† The PCM adjusts ignition timing by turning the
ground path to the coil on and off.
† The PCM operates the A/C compressor clutch
through the clutch relay. This happens if A/C has
been selected by the vehicle operator and requested
by the A/C thermostat.
Trending Topics
#8
CF Veteran
Thread Starter
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Nothing like being misinformed, so I guess the ScanGauge is wrong. After all, it only displays info that it receives from the ECM. You can clearly see the display change from "open" to "closed" loop under a multitude of different operating conditions whether the engine is at 195F or not. For example, when you hammer down on the throttle, the ScanGauge will instantly display "open" loop because under heavy throttle applications the ECM overrides the O2 sensor(s), giving the engine a richer mixture to avoid engine damage. Once normal/steady speed is resumed, the system returns to "closed" loop and the ScanGauge indicates same. Like I said, the ScanGauge, or any other instrument/tool/gauge, that plugs in to the ALDL port, just displays info it receives from the ECM. So when it displays "closed" loop, I believe the loop is closed and all is good in the universe. May the force be with you.
#9
WOT is in fact an OPEN LOOP Mode
Closed loop mode is not in effect until the engine reaches normal operating temps, and that is 195 deg F. That is the parameter programmed into all OBD2 PCM's (96-01).
The following are the fuel injection modes of operation, I've also added the applicable PCM Mode next to each.
Ignition switch ON
† Engine start-up (crank) Open Loop
† Engine warm-up Open Loop
† Engine start-up (crank) Open Loop
† Engine warm-up Open Loop
† Idle With engine at normal operating temperature Open Loop
† Cruise With engine at normal operating temperature Open Loop
† Acceleration Open Loop Mode
† Deceleration Open Loop Mode
† Wide open throttle (WOT) Open Loop Mode
† Ignition switch OFF
The only sensor NOT monitored in open loop is the O2 sensor.
During Closed Loop modes, the PCM will monitor
the oxygen (O2S) sensors input. This input indicates
to the PCM whether or not the calculated injector
pulse width results in the ideal air-fuel ratio. This
ratio is 14.7 parts air-to-1 part fuel. By monitoring
the exhaust oxygen content through the O2S sensor,
the PCM can fine tune the injector pulse width. This
is done to achieve optimum fuel economy combined
with low emission engine performance.
Now do you understand why the proper t-stat is critical to proper engine performance? Without reaching 195 Deg you're wasting gas, probably won't pass an emissions test, and shorting the life of your catalytic converter.
WIDE OPEN THROTTLE MODE
This is an Open Loop mode. During wide open
throttle operation, the powertrain control module
(PCM) receives the following inputs.
† Battery voltage
† Crankshaft position sensor
† Engine coolant temperature sensor
† Intake manifold air temperature sensor
† Manifold absolute pressure (MAP) sensor
† Throttle position sensor (TPS)
† Camshaft position sensor signal (in the distributor)
During wide open throttle conditions, the following
occurs:
† Voltage is applied to the fuel injectors with the
ASD relay via the PCM. The PCM will then control
the injection sequence and injector pulse width by
turning the ground circuit to each individual injector
on and off. The PCM ignores the oxygen sensor input
signal and provides a predetermined amount of additional
fuel. This is done by adjusting injector pulse
width.
† The PCM adjusts ignition timing by turning the
ground path to the coil on and off.
This is an Open Loop mode. During wide open
throttle operation, the powertrain control module
(PCM) receives the following inputs.
† Battery voltage
† Crankshaft position sensor
† Engine coolant temperature sensor
† Intake manifold air temperature sensor
† Manifold absolute pressure (MAP) sensor
† Throttle position sensor (TPS)
† Camshaft position sensor signal (in the distributor)
During wide open throttle conditions, the following
occurs:
† Voltage is applied to the fuel injectors with the
ASD relay via the PCM. The PCM will then control
the injection sequence and injector pulse width by
turning the ground circuit to each individual injector
on and off. The PCM ignores the oxygen sensor input
signal and provides a predetermined amount of additional
fuel. This is done by adjusting injector pulse
width.
† The PCM adjusts ignition timing by turning the
ground path to the coil on and off.
The following are the fuel injection modes of operation, I've also added the applicable PCM Mode next to each.
Ignition switch ON
† Engine start-up (crank) Open Loop
† Engine warm-up Open Loop
† Engine start-up (crank) Open Loop
† Engine warm-up Open Loop
† Idle With engine at normal operating temperature Open Loop
† Cruise With engine at normal operating temperature Open Loop
† Acceleration Open Loop Mode
† Deceleration Open Loop Mode
† Wide open throttle (WOT) Open Loop Mode
† Ignition switch OFF
The only sensor NOT monitored in open loop is the O2 sensor.
During Closed Loop modes, the PCM will monitor
the oxygen (O2S) sensors input. This input indicates
to the PCM whether or not the calculated injector
pulse width results in the ideal air-fuel ratio. This
ratio is 14.7 parts air-to-1 part fuel. By monitoring
the exhaust oxygen content through the O2S sensor,
the PCM can fine tune the injector pulse width. This
is done to achieve optimum fuel economy combined
with low emission engine performance.
Now do you understand why the proper t-stat is critical to proper engine performance? Without reaching 195 Deg you're wasting gas, probably won't pass an emissions test, and shorting the life of your catalytic converter.
#10
CF Veteran
Thread Starter
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Where does it say that 195F must be reached in order for the system to go closed? How do you explain the ECM sending a "closed loop" signal well before 195F is reached? You can clearly see in the second pic that the system has gone into "closed loop" and water temp (WT) is only 94F.
Last edited by djb383; 12-13-2009 at 09:45 PM.
#12
CF Veteran
Join Date: Jul 2009
Location: Chico,ca
Posts: 2,158
Likes: 0
Received 10 Likes
on
9 Posts
Year: 89
Model: Cherokee
Engine: 4.0
Where does it say that 195F must be reached in order for the system to go closed? How do you explain the ECM sending a "closed loop" signal well before 195F is reached? You can clearly see in the second pic that the system has gone into "closed loop" and water temp (WT) is only 94F.
#13
CF Veteran
Thread Starter
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

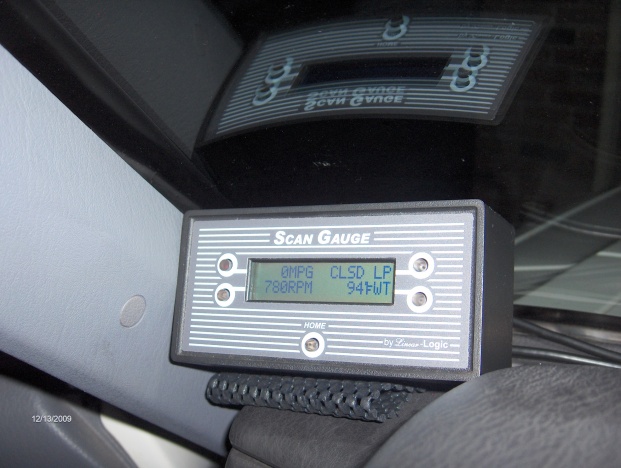

Just took this pic and as you can see the system is in "closed" loop at 65 mph at 159F coolant temp doing 19 mpg. The only time the system went momentarily into "open" loop is when I hammered the throttle.......as soon as I backed off the throttle, the info from the O2s is being used and the loop is once again "closed".
Last edited by djb383; 12-13-2009 at 10:36 PM.
#14
CF Veteran
Join Date: Jul 2009
Location: Chico,ca
Posts: 2,158
Likes: 0
Received 10 Likes
on
9 Posts
Year: 89
Model: Cherokee
Engine: 4.0
Cannot dispute what the scan guage says,the reason I asked is because until you reach normal operating temp it will remain in open loop,it will be in closed loop at idle once o2 sensor reaches 600 degrees or starts to produce voltage.
#15
CF Veteran
Thread Starter
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Again, what/where does it say that normal operating temp, or 195F coolant temp, MUST be obtained BEFORE the system will go into "closed" loop. I do see where it says (in the above posts) the system IS IN "closed" loop at normal operating temp......it should be, right?
