Cherokee rear trunk lock latch stuck!!
Getting ready to leave in the morning on a trip... packing and the trunk wont close.. stuck in the locked position...

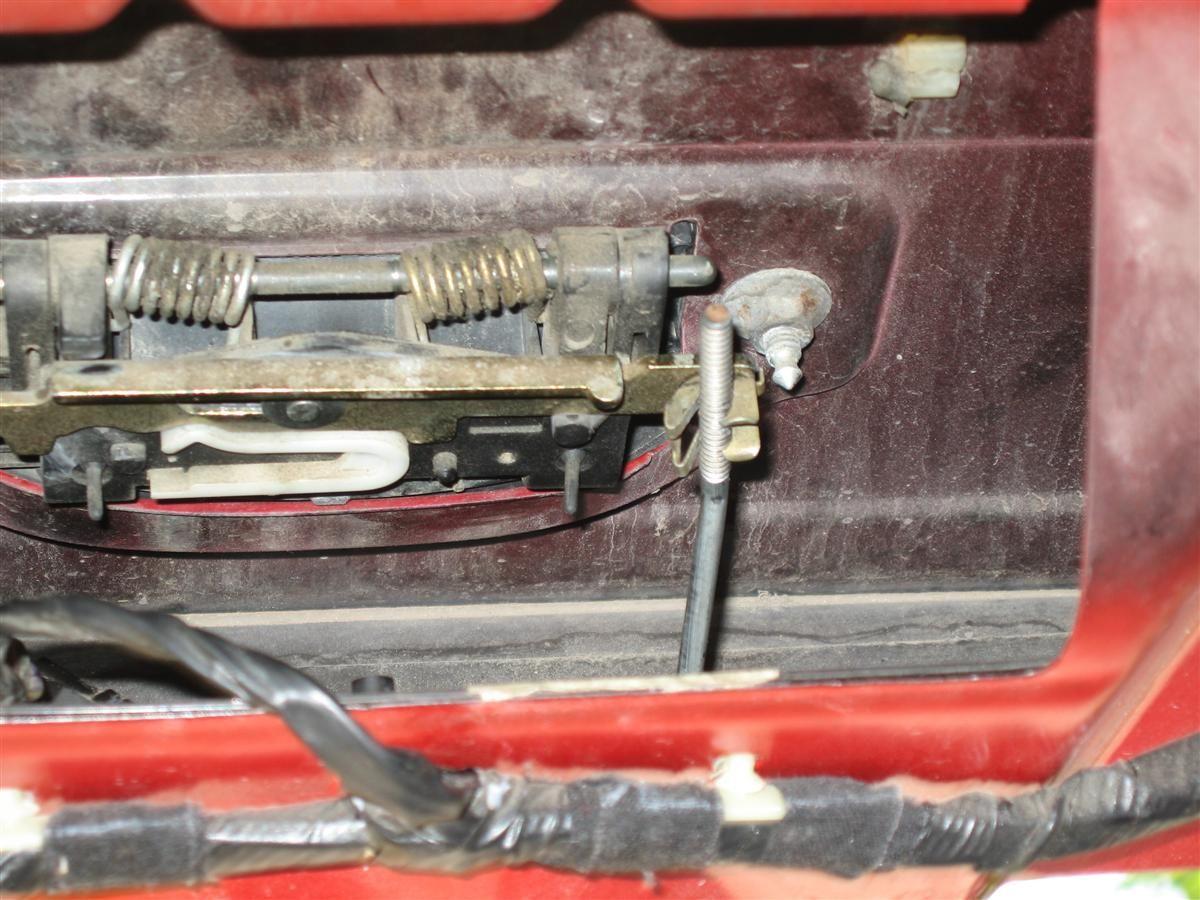

took it all apart and found this....
I cant see anywhere where it would screw in...
there is a clip... but it wouldnt really pull it in the right dierection to open...
anyone familiar with the rear door?
took it all apart and found this....
I cant see anywhere where it would screw in...
there is a clip... but it wouldnt really pull it in the right dierection to open...
anyone familiar with the rear door?
#3
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
It goes in that gold colored piece. Looks like it is mangled. Here is video. Shot is not the best but give you a better idea of what that gold colored piece should look like.
#5
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
Thinking the part I circled should be more in front of the rod. Also zip tie the rod at the top to keep it from sliding down.
#6
Seasoned Member
Thread Starter
Thats awesome guys thank you.
unfortunately... or maybe fortunately... like an idiot I shut the trunk lid..
but on the bright side, it's closed.
I will just use the side doors and dig into it when we get back...
thanks all.
unfortunately... or maybe fortunately... like an idiot I shut the trunk lid..
but on the bright side, it's closed.
I will just use the side doors and dig into it when we get back...
thanks all.
#7
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
No prob. It's a little late now but what happens is the mechanism dries out then with the increased resistance, self destructs. When repaired give it a shot of white grease so it lasts a while.
Trending Topics
#8
Seasoned Member
Thread Starter
Got back this afternoon and took it apart.
I broke off the clip and welded a 1/4-20 nut on the pivot pin.

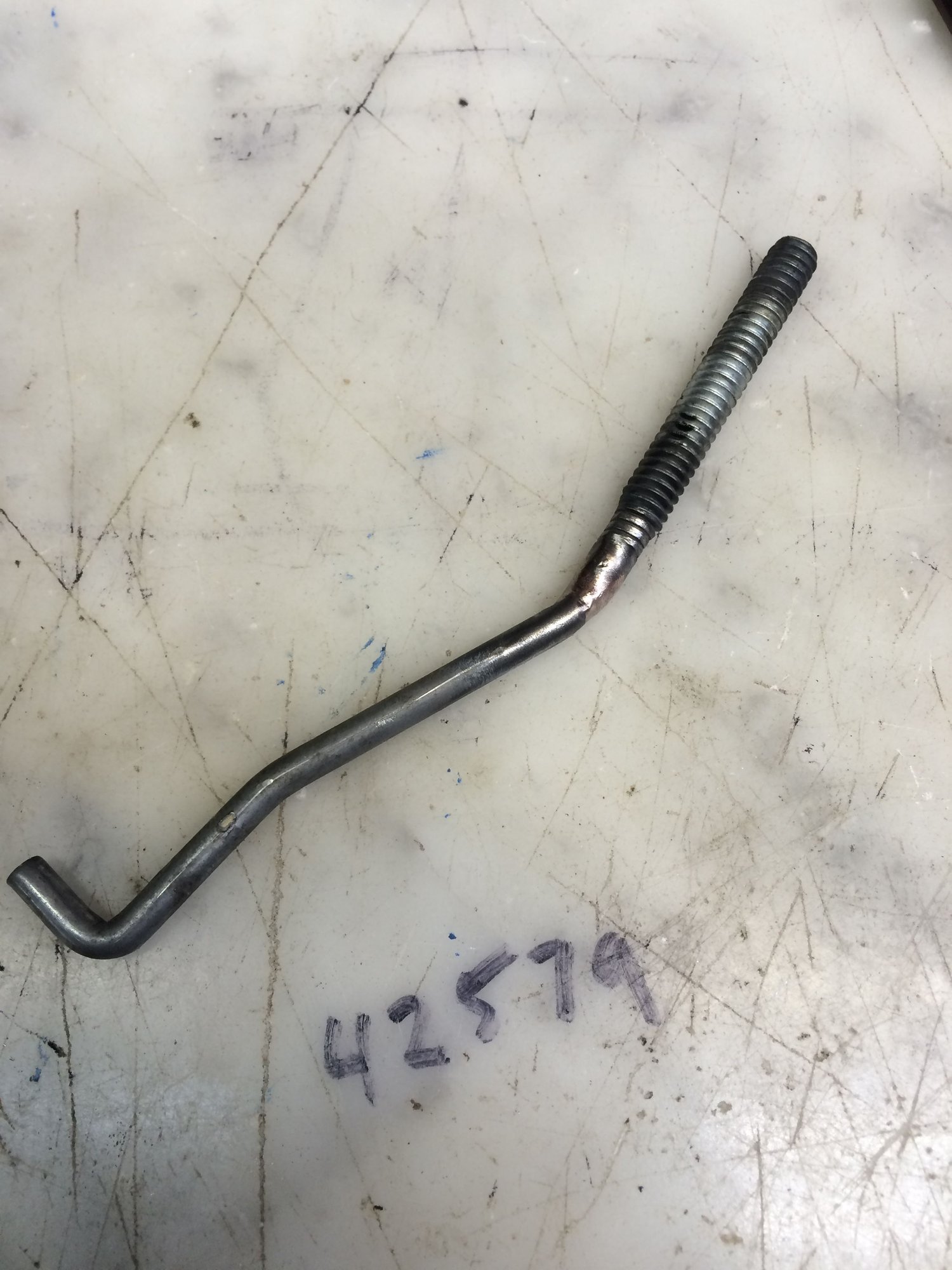

I also cut the rod and welded a 1/4-20 stud to it.
works brilliantly. kinda the way Jeep shoulda/coulda ..
hopefully this will help someone else in the future.
I broke off the clip and welded a 1/4-20 nut on the pivot pin.
I also cut the rod and welded a 1/4-20 stud to it.
works brilliantly. kinda the way Jeep shoulda/coulda ..
hopefully this will help someone else in the future.
