Budget Builds: What Junkyard Parts Will Fit Cherokee?
#181
☠ CF Sheriff ☠
just to clarify/summarize, for your 92 any 91-96 hatch will swap, but are fiberglass. 97+ hatches are metal, but will not swap due to attachment and body shape changes
#182
Senior Member
Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
Fiberglass may not hold speakers as well, but it doesn't rust.
I wish I had a fiberglass hatch, I noticed a little bubbling paint on the bottom edge this morning where it's starting to rust.
I wish I had a fiberglass hatch, I noticed a little bubbling paint on the bottom edge this morning where it's starting to rust.
#183
Member
Join Date: May 2010
Location: South Carolina
Posts: 223
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Originally Posted by Kopecki
I've heard a few people say '95 and '96 rear hatches are made of metal, versus the fiberglass that was used in previous years. Is this true, and if so, would it be a direct bolt in swap?
(Anybody who has tried to mount 7lb 6x9's in a fiberglass hatch would understand why I want metal. The screws that hold the speakers in are constantly pulling out of the fiberglass over time, I'm sick of it.)
(Anybody who has tried to mount 7lb 6x9's in a fiberglass hatch would understand why I want metal. The screws that hold the speakers in are constantly pulling out of the fiberglass over time, I'm sick of it.)
#184
Senior Member
Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
Fiberglass is pretty easy to fix. I'd rather fix that than rust any day. Funny though, until I read this thread this moring, I had no idea earlier XJ's had fiberglass hatches! You learn something every day...
As to the original problem of speakers coming out, just fiberglass some nuts into/onto the hatch and screw into those. If you want to get fancy, use lock nuts.
As to the original problem of speakers coming out, just fiberglass some nuts into/onto the hatch and screw into those. If you want to get fancy, use lock nuts.
#185
CF Veteran
Join Date: Feb 2010
Location: Allentown, Pa
Posts: 3,869
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L HO
Originally Posted by Northwoods Snowman
Fiberglass is pretty easy to fix. I'd rather fix that than rust any day. Funny though, until I read this thread this moring, I had no idea earlier XJ's had fiberglass hatches! You learn something every day...
As to the original problem of speakers coming out, just fiberglass some nuts into/onto the hatch and screw into those. If you want to get fancy, use lock nuts.
As to the original problem of speakers coming out, just fiberglass some nuts into/onto the hatch and screw into those. If you want to get fancy, use lock nuts.
I just really wanted a metal hatch, but apparently it can't be done. I thought some earlier model xjs had metal hatches, but I guess I was wrong. Thanks for the info guys.
#186
CF Veteran
Join Date: Feb 2010
Location: Allentown, Pa
Posts: 3,869
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L HO
**unrelated to my previous post**
I'm going to be pulling a LPD30 out of my '94 xj and will be putting a HPD30 from a '97 xj into my '94 xj and would like to keep all of the good parts off of the LPD30 to keep as spare parts. The axle shafts and bearing/hug asseblies in the LPD30 are brand new. Will they swap onto a HPD30 or be good to keep as emergency parts? Even if the axle shafts only get me home.... atleast it something.
I'm going to be pulling a LPD30 out of my '94 xj and will be putting a HPD30 from a '97 xj into my '94 xj and would like to keep all of the good parts off of the LPD30 to keep as spare parts. The axle shafts and bearing/hug asseblies in the LPD30 are brand new. Will they swap onto a HPD30 or be good to keep as emergency parts? Even if the axle shafts only get me home.... atleast it something.
#187
Newbie
Join Date: Jan 2011
Location: Kettering, OH
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4.0
"1. Ford 8.8 inch ('97+) = need spring & shock mounts (3.55, 3.73, or 4.10, maybe LSD, Disc Brakes"
Im currently looking for a (8.8, 4.10, posi. explorer) rearend, I heard somewhere that the Eddie Bower ed. was the one to get. Anyone know why ????
Im currently looking for a (8.8, 4.10, posi. explorer) rearend, I heard somewhere that the Eddie Bower ed. was the one to get. Anyone know why ????
Last edited by LOSTxj; 01-15-2011 at 03:56 PM.
#188
On the sticker on the driver door look for axle code D2. That is the 4.10 gears with limit slip
#190
CF Veteran
Join Date: Mar 2008
Location: Florence SC
Posts: 2,266
Likes: 0
Received 8 Likes
on
3 Posts
Year: 1996
Engine: 4.0
**unrelated to my previous post**
I'm going to be pulling a LPD30 out of my '94 xj and will be putting a HPD30 from a '97 xj into my '94 xj and would like to keep all of the good parts off of the LPD30 to keep as spare parts. The axle shafts and bearing/hug asseblies in the LPD30 are brand new. Will they swap onto a HPD30 or be good to keep as emergency parts? Even if the axle shafts only get me home.... atleast it something.
I'm going to be pulling a LPD30 out of my '94 xj and will be putting a HPD30 from a '97 xj into my '94 xj and would like to keep all of the good parts off of the LPD30 to keep as spare parts. The axle shafts and bearing/hug asseblies in the LPD30 are brand new. Will they swap onto a HPD30 or be good to keep as emergency parts? Even if the axle shafts only get me home.... atleast it something.
they are both HPs so save all you can off your old axle
#191
CF Veteran
Join Date: Feb 2010
Location: Allentown, Pa
Posts: 3,869
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L HO
Originally Posted by Irongrave
they are both HPs so save all you can off your old axle
#192
CF Veteran
Join Date: Sep 2009
Location: Summerville, Ga
Posts: 6,322
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
Originally Posted by Kopecki
I've heard a few people say '95 and '96 rear hatches are made of metal, versus the fiberglass that was used in previous years. Is this true, and if so, would it be a direct bolt in swap?
(Anybody who has tried to mount 7lb 6x9's in a fiberglass hatch would understand why I want metal. The screws that hold the speakers in are constantly pulling out of the fiberglass over time, I'm sick of it.)
(Anybody who has tried to mount 7lb 6x9's in a fiberglass hatch would understand why I want metal. The screws that hold the speakers in are constantly pulling out of the fiberglass over time, I'm sick of it.)
#194
CF Veteran
Join Date: Feb 2010
Location: Allentown, Pa
Posts: 3,869
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L HO

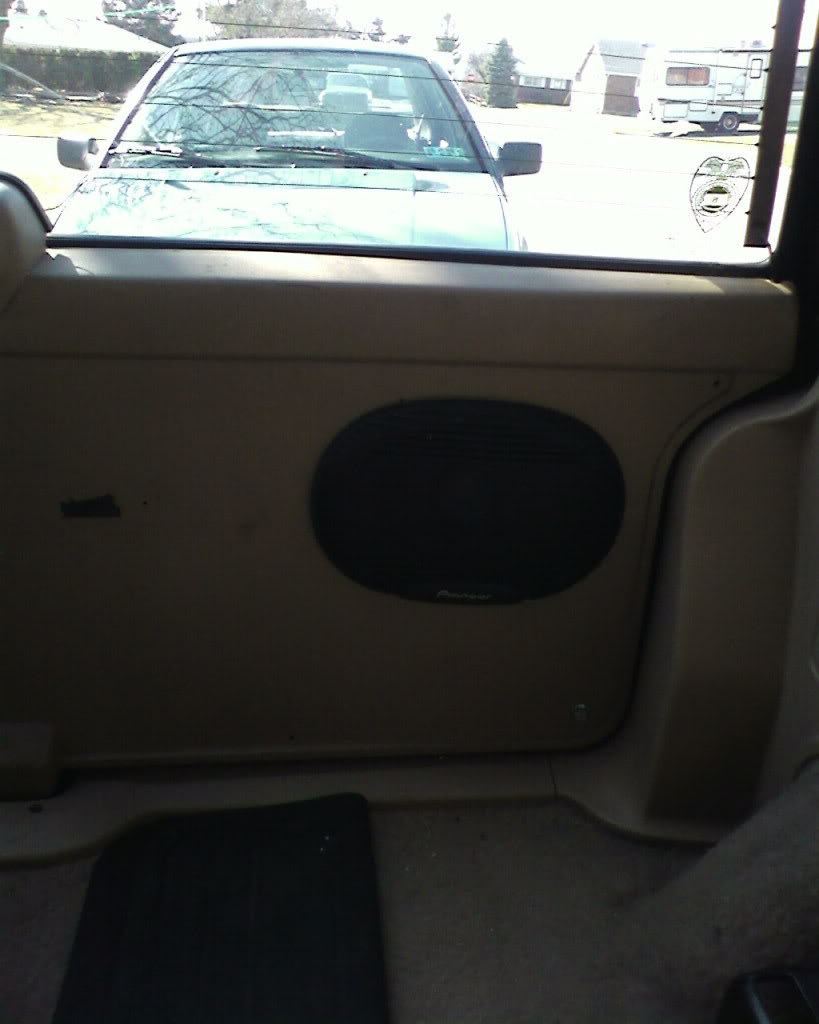

Here's a couple pics from right after the install about two summers ago. They are Pioneers from the early 80's I found brand new in my dads attic. We were cleaning out the attic before we moved and he said he was going to throw them out so I asked if I could have them. Both of these weigh the same, if not more than my 12" Alpine Type R sub. Thank god they've made speaker magnets stronger and lighter over the years.
Funny story about this whole speaker install deal... The reciprocating saw I was using ran out of juice half way through so I had to take the blade out and use pliers and cut away the fiberglass by hand.
Funny story about this whole speaker install deal... The reciprocating saw I was using ran out of juice half way through so I had to take the blade out and use pliers and cut away the fiberglass by hand.
