Blown head gasket, head? What to do now?
Hello All,
First post here so excuse me if this has been discussed elsewhere. I did search but did not find the exact answer I am looking for.
Quick overview of my story, I have a 2001 Jeep Cherokee Sport which I use daily to go to work 120 mile round trip. About a year ago the Jeep overheated and I found the radiator and heater core was clogged with a lot of rusty gunk. I changed the radiator, water pump, thermostat and flushed everything. It worked fine after that, but I noticed I was losing coolant. Not a lot but still have to top off weekly in the overflow bottle. Figured eventually I would have to change the head gasket as it was probably leaking between the coolant sleeve and the exhaust as there was no coolant in my oil at that time or anytime that I could see up until now...
The other day the Jeep over heated again, getting off the highway it smelled like something burning and then the needle went through the roof. I pulled over, turned vehicle off and checked. Sure enough antifreeze was coming out of the over flow and also looks like some came out of the radiator cap. I started the Jeep back up and temp went down and I was able to drive home the last 3 mile. Took local streets and went slow and easy.

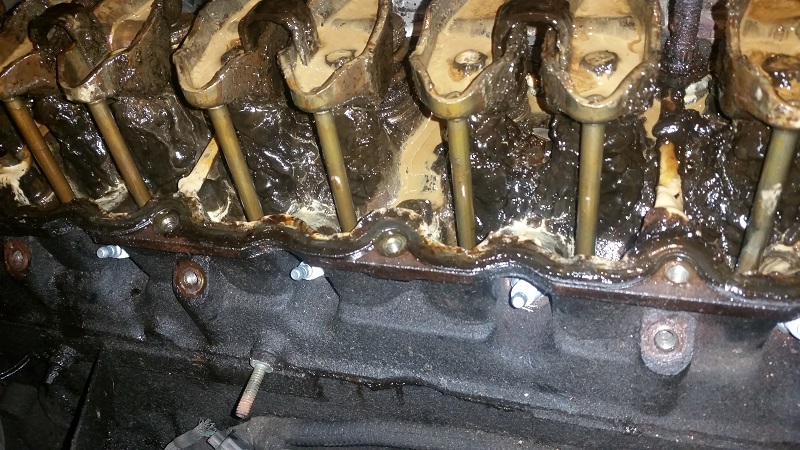

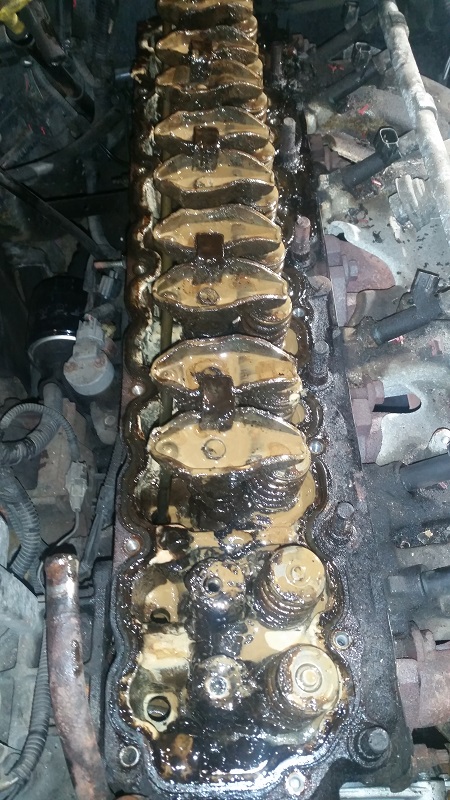

So today I took the oil cover off the top of the engine and it is filled with milky oil and a LOT of sludge. I will add photos below, it's not pretty.
So question is before I go any further is it worth it to try and fix this mess? I assume I will need a new head as cleaning it looks nearly impossible. I didn't get the head off yet to see what's going on, but I assume the head gasket is toast. Hoping it is not an issue with the block. I am willing to change the head, probably from clear water?
If I do continue, how would I clean this mess of sludge/milk out of the bottom of the engine? Of course a new head will make it easy for the top...
Any help, ideas, guidance will be appreciated...
Thanks in advance...
First post here so excuse me if this has been discussed elsewhere. I did search but did not find the exact answer I am looking for.
Quick overview of my story, I have a 2001 Jeep Cherokee Sport which I use daily to go to work 120 mile round trip. About a year ago the Jeep overheated and I found the radiator and heater core was clogged with a lot of rusty gunk. I changed the radiator, water pump, thermostat and flushed everything. It worked fine after that, but I noticed I was losing coolant. Not a lot but still have to top off weekly in the overflow bottle. Figured eventually I would have to change the head gasket as it was probably leaking between the coolant sleeve and the exhaust as there was no coolant in my oil at that time or anytime that I could see up until now...
The other day the Jeep over heated again, getting off the highway it smelled like something burning and then the needle went through the roof. I pulled over, turned vehicle off and checked. Sure enough antifreeze was coming out of the over flow and also looks like some came out of the radiator cap. I started the Jeep back up and temp went down and I was able to drive home the last 3 mile. Took local streets and went slow and easy.
So today I took the oil cover off the top of the engine and it is filled with milky oil and a LOT of sludge. I will add photos below, it's not pretty.
So question is before I go any further is it worth it to try and fix this mess? I assume I will need a new head as cleaning it looks nearly impossible. I didn't get the head off yet to see what's going on, but I assume the head gasket is toast. Hoping it is not an issue with the block. I am willing to change the head, probably from clear water?
If I do continue, how would I clean this mess of sludge/milk out of the bottom of the engine? Of course a new head will make it easy for the top...
Any help, ideas, guidance will be appreciated...
Thanks in advance...
#3
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
The head cleaning is trivial. You take it to a machine shop and have it hot-tanked. Not a problem, just some work.
A bigger issue than that, is that it is probably cracked, so you won't need to clean it.
A bigger issue than that, is that you may have trashed your bearings, necessitating a complete rebuild of the engine.
Never drive on an overheated engine, unless it's to get to a safe place to stop.
Tow trucks are wonderful engine-saving devices, when used appropriately.
A bigger issue than that, is that it is probably cracked, so you won't need to clean it.
A bigger issue than that, is that you may have trashed your bearings, necessitating a complete rebuild of the engine.
Never drive on an overheated engine, unless it's to get to a safe place to stop.
Tow trucks are wonderful engine-saving devices, when used appropriately.
#4
Newbie
Thread Starter
Join Date: Nov 2016
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
There is 177K on the engine, mostly highway as that is what I use it for.
I do my oil changes every ~3K or there about...
I only put at tops 20 miles on the Jeep with the milky oil as I am assuming it happened when I overheated last week.
Oil pressure has been low, but then I don't know for sure. The gauge had gone crazy with the needle topping out, this was over a year ago. I changed the sending switch twice but both times the pressure went to ~40 and then dropped to ~20 and sat there. I didn't want to buy yet another switch...
#5
Newbie
Thread Starter
Join Date: Nov 2016
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#6
CF Veteran
Join Date: Dec 2015
Location: PA
Posts: 3,038
Likes: 0
Received 333 Likes
on
277 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
A full rebuild (or replacement) may be in order, not just a new cylinder head. You wont know for sure until you tear it down, but that looks a mess. Pull the oil pan and check the bearings. The 2000-2001 had the 0331 head that is known for cracking, overheated or not, between cylinders 3 and 4. Coolant will make its way to the bearings and destroy them if you keep driving it.
Tear it down and hope for the best.
Tear it down and hope for the best.
#7
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
Even if it's not cracked, I wouldn't put that head back on it when there are replacements available that correct the issue. How was your oil pressure prior to this most recent overheat? Coolant in the oil eats the bearings, but if your oil pressure is still good you may be able to get away with keeping the block and swapping in a replacement 0331 from Clearwater Cylinder Head. It will run you around $500 and come to you almost ready to bolt in.
Alternately you can swap in an older 0630 head, but you'll have to do a bit of light fabrication to make it work. Or you can try to find a Tupy 0331, which was the replacement casting made from 2002 on that was cast in Brazil. Those are hard to find, however. The Clearwater head usually turns out to be the best option.
Oil pressure and noise. If your hot idle oil pressure was still good and you weren't hearing any bearing noise, the block is probably okay. The cam bearings are usually what goes first.
Trending Topics
#8
Senior Member
^^^+1 on changing the cylinder head for a new 0331 from Clearwater. I just did mine. Clearwater sells a brand new replacement for $450 shipped, with prepaid shipping to send the old head back. New head gasket is about $100, bolts about $35.
#9
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
I'm in the middle of doing mine. Just got the Fel-Pro head gasket kit from NAPA for $85. This has every gasket you need for the top end - head, valve cover, thermostat, water pump, intake/exhaust manifold, and throttle body. It also has new valve seals and some o-rings (I don't know what those are for!), and the valve cover grommets. I even got a few things that... don't seem to fit my engine anywhere. I think they got in the package by mistake!
#10
Banned
Join Date: Oct 2016
Posts: 1,553
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000 and 1998
Model: Cherokee
Engine: 4.0
Oil pressure and noise. If your hot idle oil pressure was still good and you weren't hearing any bearing noise, the block is probably okay. The cam bearings are usually what goes first.
#11
Senior Member
I'm in the middle of doing mine. Just got the Fel-Pro head gasket kit from NAPA for $85. This has every gasket you need for the top end - head, valve cover, thermostat, water pump, intake/exhaust manifold, and throttle body. It also has new valve seals and some o-rings (I don't know what those are for!), and the valve cover grommets. I even got a few things that... don't seem to fit my engine anywhere. I think they got in the package by mistake!
Last edited by mikesignal; 12-26-2016 at 10:35 PM.
#12
Member
Mine is starting too. My AntiFreeze Bottle goes down about an inch every month .I can see that it is wet between the Head and the Block. I am going to try WWW.bearsheadgasketsealer.com Check it out on Youtube.
#13
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Mine is starting too. My AntiFreeze Bottle goes down about an inch every month .I can see that it is wet between the Head and the Block. I am going to try WWW.bearsheadgasketsealer.com Check it out on Youtube.
