blower motor problem
#1
Junior Member
Thread Starter
Join Date: Mar 2010
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
blower motor problem
I have a 96 xj my fan doesnt have but low and the next speed up I have replaced whole climate control unit fan speed switch and blower resistor and it still the same is there something I'm missing
#3
Seasoned Member
Have you tested the blower motor?
Since it is on the engine side of the firewall, connect two leads from the battery and see if it spins at full speed.
Since it is on the engine side of the firewall, connect two leads from the battery and see if it spins at full speed.
#6
Junior Member
Thread Starter
Join Date: Mar 2010
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
OK I tested motor with 12 volts it turns full speed so now we know its not the fan motor when I got the the jeep the plug to the fan speed switch was burnt I got a new plug from parts jeep and new switch now my question is on some of those terminals is there supposed to be more than one wire going in cause it looks to me some of the terminals are being used
Trending Topics
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

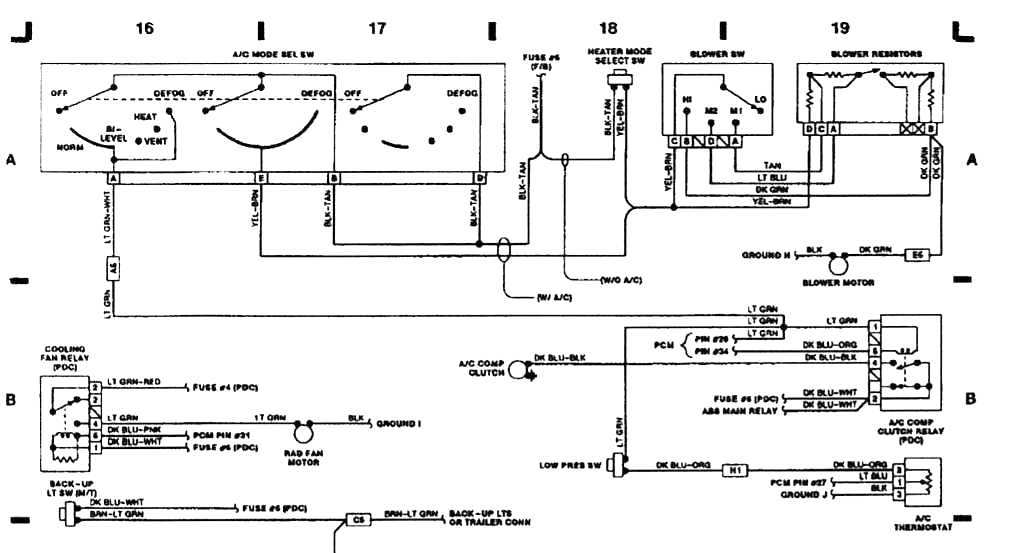

I don't know if these diagrams will help with your '96 blower circuit troubleshooting. They're from a '93 and '94 FSM's. I don't have '96 diagrams. In '97 there was a big change so I didn't bother posting that.
Note that switch symbol in the middle of the blower motor fuse block is a thermal fuse.

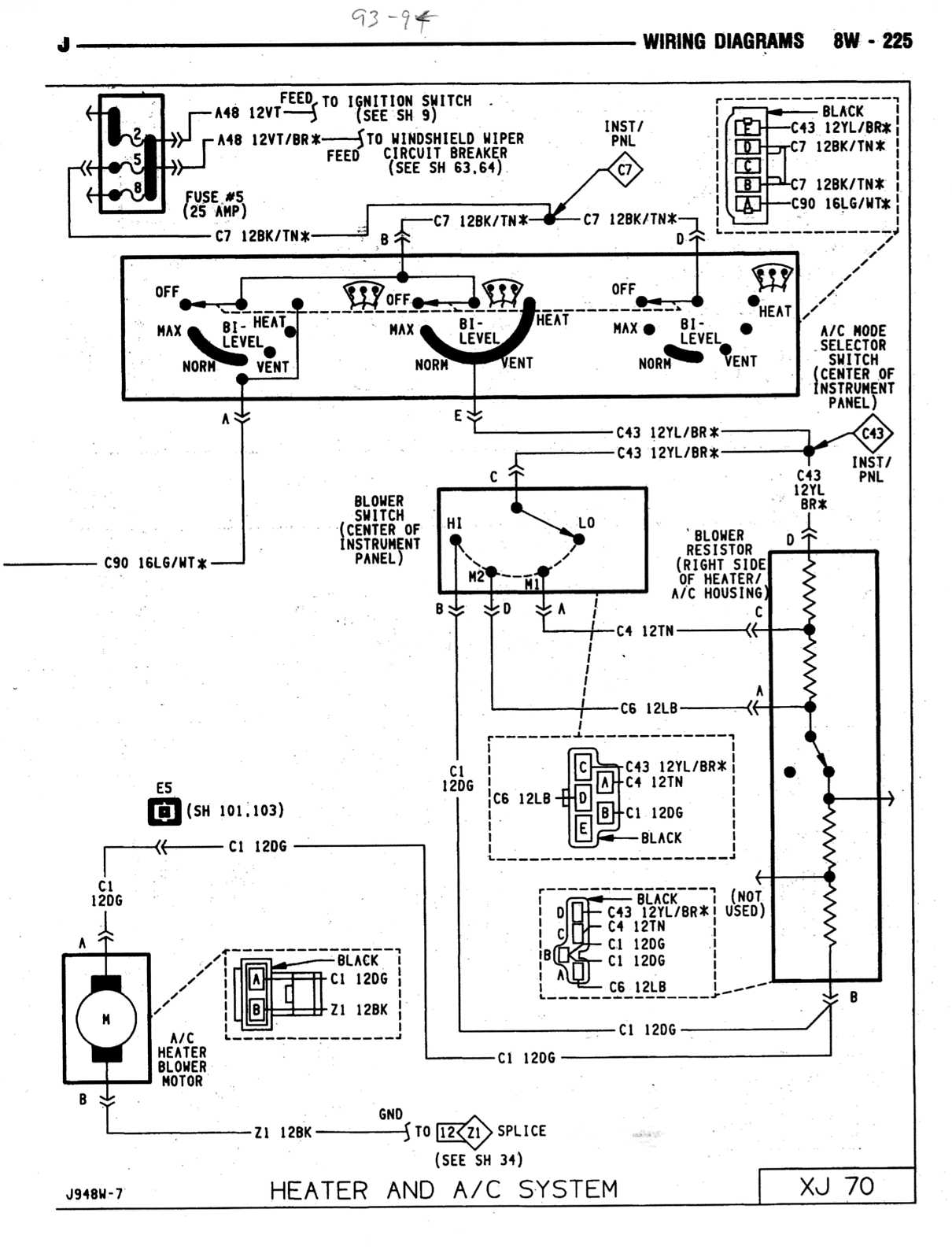

'93 circuit:
'94 circuit:
Note that switch symbol in the middle of the blower motor fuse block is a thermal fuse.
'93 circuit:
'94 circuit:
